IKA Twister Add-on Unit Magnetic Stirrers (3000 rpm) - MSE Supplies LLC

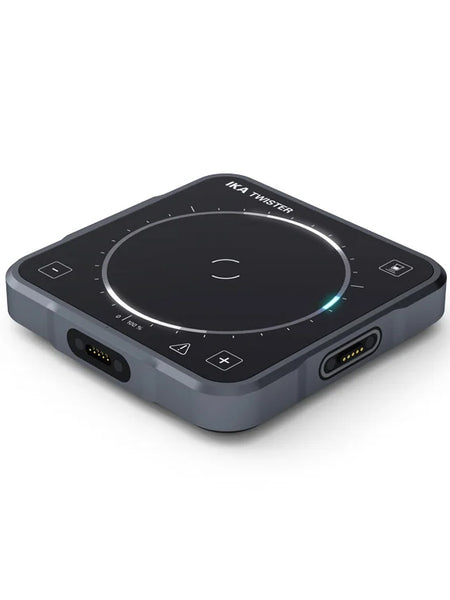

IKA Twister Add-on Unit Magnetic Stirrers (3000 rpm)

  • $ 42995

    Product SKU: 0020112621



Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020112621

Add-on unit for existing TWISTER setups.
It is supplied without power supply and without accessories.

Please check whether the power of your currently used power supply is sufficient to supply the planned number of TWISTER devices:
Up to 2 devices: power supply from TWISTER SET 1 & 2
2 to 4 devices: TW. PWR.1 or power supply from TWISTER SET 3 & 4
4 to 30 devices: TW.PWR.2

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA Twister Add-on Unit Magnetic Stirrers (3000 rpm)

umber of stirring positions 1
Stirring quantity min. per stirring position (H2O) 0.005 l
Stirring quantity max. per stirring position (H2O) 5 l
Motor rating output 5 W
Direction of rotation right / left
Speed display set-value LED
Speed display actual-value LED
Speed adjustment Touch key
Speed range 100 - 3000 rpm
Setting accuracy speed 100 rpm
Stirring bar length 10 - 30 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +6 K
Set-up plate material glass
Set-up plate dimensions 124 x 124 mm
Automatic reverse rotation yes
Intermittent mode yes
Viscosity trend measurement yes
Time setting min. 6 s
Time setting max. 30 min
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) ±2 %
Modular expandable stirring system (2-30 units) yes
Leader- follower operation (minimum 2 units required, leader unit controls synchronously follower unit) yes
Vessel detection (optional activated/deactivated) yes
Dimensions (W x H x D) 135 x 24 x 135 mm
Weight 0.6 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 66
USB interface optional
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 10 W
Power input standby 2 W
DC Voltage 24 V=
Current consumption 400 mA
