IKA T-SP-6 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Item number: 0025008243

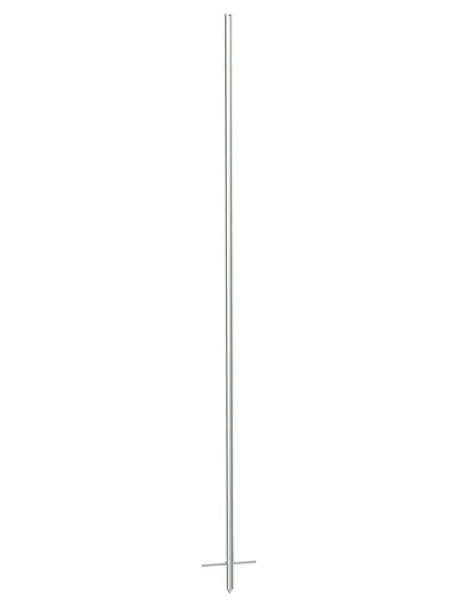

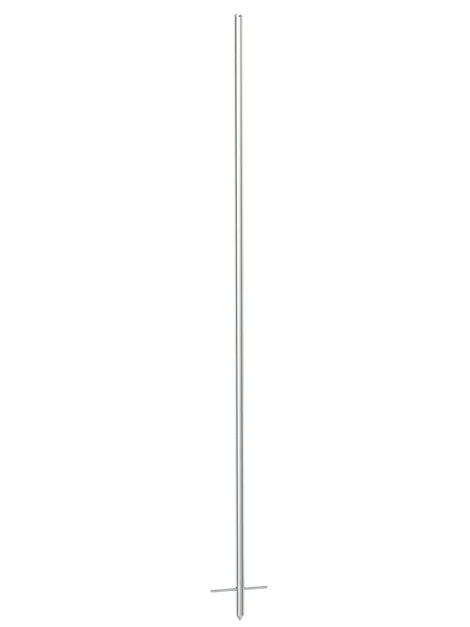

Single T-SP-6 spindle.
The spindle can only be used in combination with the motorized HELISTAND stand as well as the repective nut and coupling.
The complete T-SP-SET with required nut and coupling is included with the HELISTAND Set and all ROTAVISC HELI Packages.
T-spindles used in combination with the motorized stand HELISTAND are particularly suitable for the measurement of non-flowing samples, such as creams, pastes or gelatin.
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA T-SP-6 Viscometers
|Connection||Thread M2.5 LH|
|Spindle length||114.3 mm|
|Sample container:||600mL beaker low|
|Viscosity Accuracy (FSR)||1 %|
|Viscosity Repeatibility (FSR)||0.2 %|
|Min. FSR match ROTAVISC lo-vi||4687 mPa.s|
|Max. FSR match ROTAVISC lo-vi||937300 mPa.s|
|Min. FSR match ROTAVISC me-vi||50000 mPa.s|
|Max. FSR match ROTAVISC me-vi||10000000 mPa.s|
|Min. FSR match ROTAVISC hi-vi I||100000 mPa.s|
|Max. FSR match ROTAVISC hi-vi I||20000000 mPa.s|
|Min. FSR match ROTAVISC hi-vi II||400000 mPa.s|
|Max. FSR match ROTAVISC hi-vi II||80000000 mPa.s|
|Material in contact with medium||stainless steel 1.4404|
|Dimensions (W x H x D)||13 x 116 x 13 mm|
|Permissible ambient temperature||5 - 40 °C|
