IKA T-SP-3 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025008240

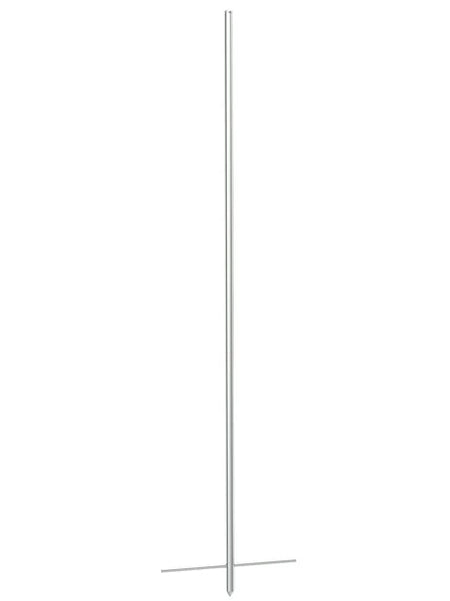

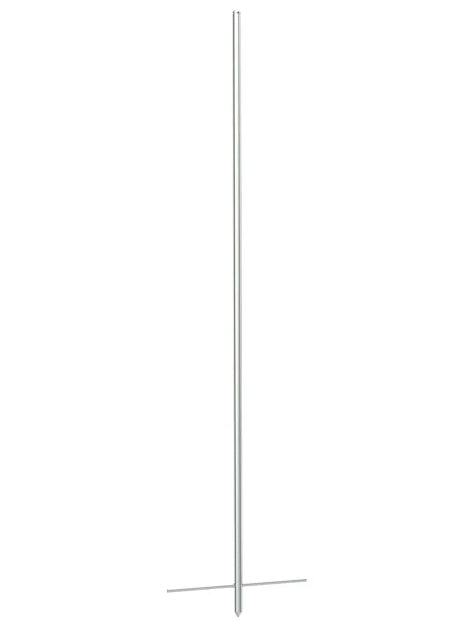

Single T-SP-3 spindle.
The spindle can only be used in combination with the motorized stand HELISTAND as well as the respective nut and coupling.
The complete T-SP-SET with nut and coupling is included with the HELISTAND Set and all ROTAVISC HELI Packages.
T-spindles used in combination with the motorized stand HELISTAND are particularly suitable for the measurement of non-flowing samples, such as creams, pastes or gelatin.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA T-SP-3 Viscometers
| Spindle geometry | T-bar |
| Connection | Thread M2.5 LH |
| Diameter | 27.1 mm |
| Spindle length | 114.3 mm |
| Mounting Bracket | yes |
| Sample container: | 600mL beaker low |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 469 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 93730 mPa.s |
| Min. FSR match ROTAVISC me-vi | 5000 mPa.s |
| Max. FSR match ROTAVISC me-vi | 1000000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 10000 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 2000000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 40000 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 8000000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 29 x 116 x 29 mm |
| Weight | 0.002 kg |
| Permissible ambient temperature | 5 - 40 °C |
