IKA T 65 Digital ULTRA-TURRAX® Dispersers (9500 rpm) - MSE Supplies LLC

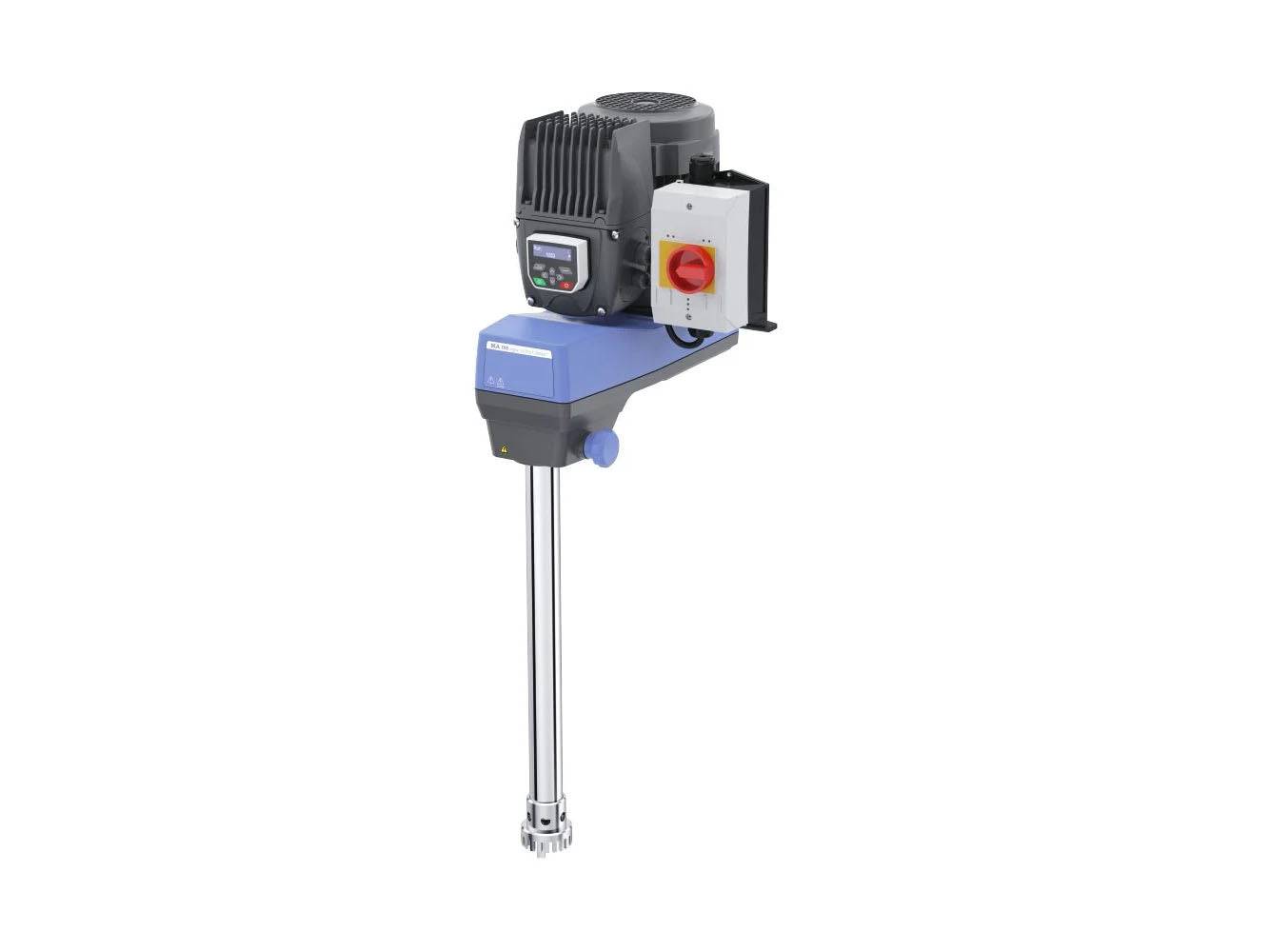

IKA T 65 Digital ULTRA-TURRAX® Dispersers (9500 rpm)

  • $ 10,65300


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0004234501

Extremely powerful dispersing instrument for volumes from 2 - 50 L (H2O) for typical pilot plant stations with digital speed display. It offers a wide speed range from 1000 – 9,500 rpm that enables users to work at high circumferential speeds even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

  • Digital speed display
  • Electronic speed control
  • Electronic overload protection
  • Plug-in connectors facilitate exchange of dispersing elements
  • Optional stainless steel dispersing elements for use under vacuum and pressure
  • Error code display
  • Mains cable (2.5 m) and SI 400 safety switch are available as accessories (not included with delivery)

The device requires a 3-phase electricity supply in order to operate. The connection of the unit to the power supply must be done by a qualified electrician. Wiring diagrams are included in the manual for reference.


Scope of delivery

  • T 65 digital ULTRA-TURRAX®
  • Rotor wrench
  • Hook wrench
  • Shaft wrench
  • Cable gland for switch cable (2 pcs.)
  • Hexagon L-wrench

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA T 65 digital ULTRA-TURRAX® Dispersers (9500 rpm)

Motor rating input 1800 W
Motor rating output 1500 W
Volume range (H2O) 2 - 50 L
Viscosity max. 5000 mPas
Speed range 1000 - 9500 rpm
Speed deviation 3 %
Speed adjustment stepless
Speed display 7 segment LED
Noise without element 75 dB(A)
Process type batch
Dimensions (W x H x D) 300 x 390 x 400 mm
Weight 30 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
Voltage 3 x 230 V
Frequency 60 Hz
Power input 1800 W
