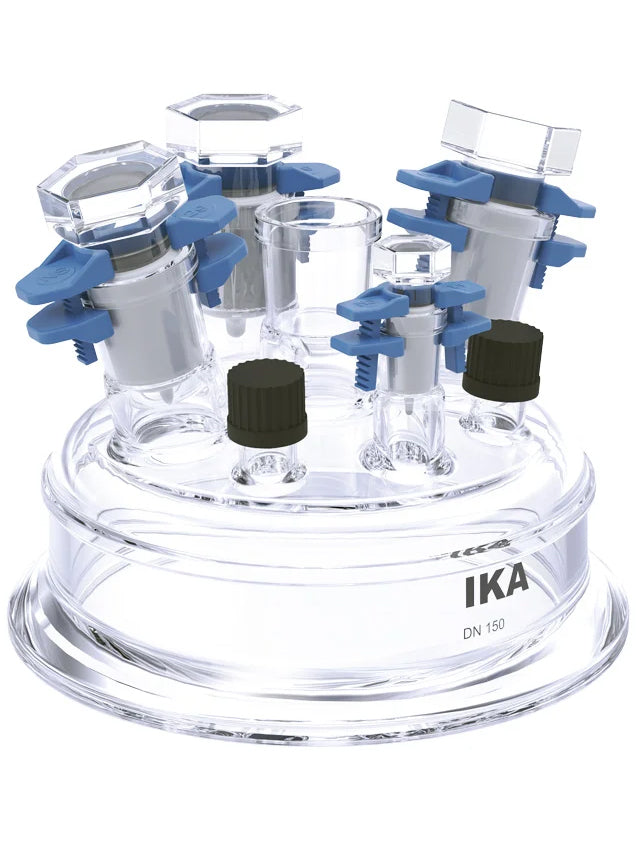

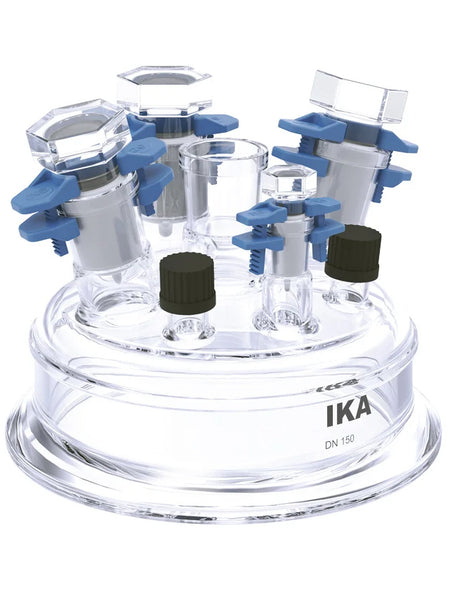

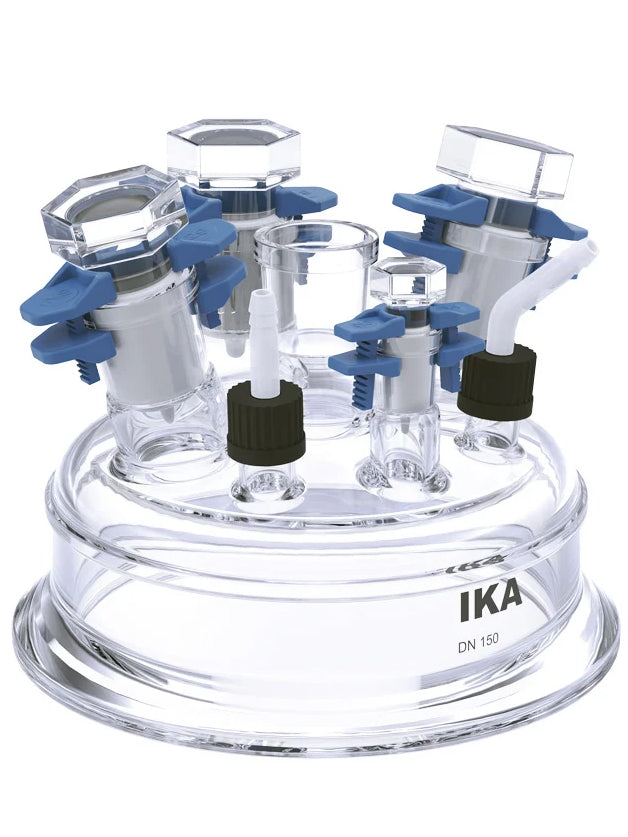

IKA SY 150.2 Reactor Lid Synthesis Reactors
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020113661
Reactor lid for the EasySyn reactor system.
Flange size: DN 150.
Suitable for reactor vessels with volumes of 2000 ml (SY 2000 and SY 2000 D) and 5000 ml (SY 5000 and SY 5000 D).
Openings: 4 x NS 29/32, 1 x NS 14/23, 2 x GL 18.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA SY 150.2 Reactor Lid Synthesis Reactors
| Height (room dimension) | 125 mm |
| Outer diameter | 138 mm |
| Flange type | acc. DIN 12214 |
| Flange dimension | DN150 |
| Vacuum application | yes |
| Lid center neck | NS 29/32 |
| Lid side necks | 3x NS 29/32, 1x NS 14/23, 2x GL18 |
| Reactor lid material | borosilicate glass 3.3 DIN ISO 3585 |
| Working temperature | -50 - 230 °C |
| Pressure max. | atmospheric pressure |
| Attainable vacuum | 3 mbar |
