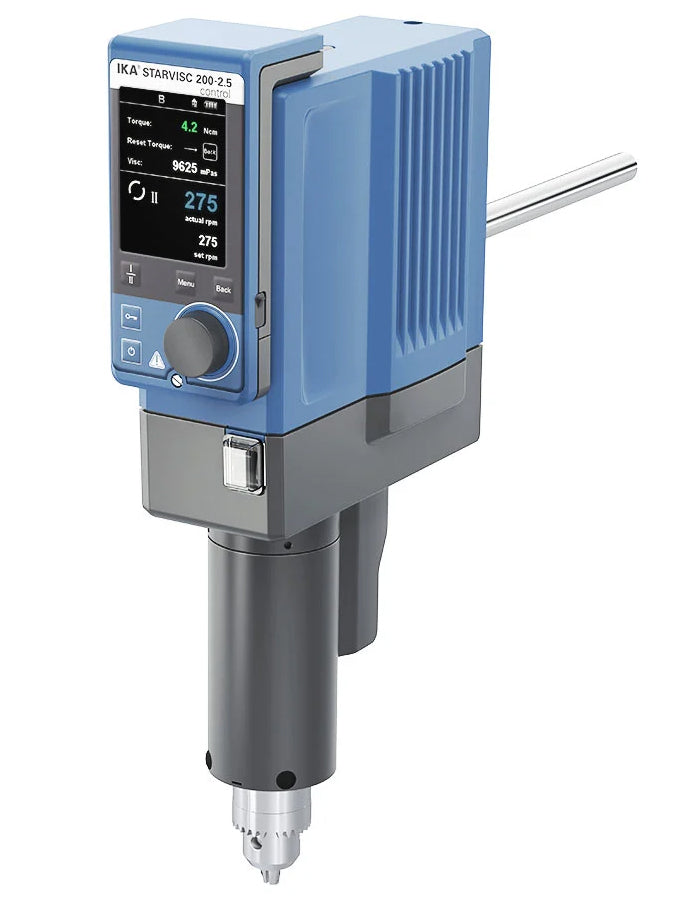

IKA STARVISC 200-2.5 Control Measuring Stirrers (2000 rpm, 350°C)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020006998
Measure viscosity and display it, even during product development: the new IKA STARVISC 200-2.5 control torque-measuring stirrer makes it possible. The result can be read in real-time on the display. STARVISC therefore has a broad range of applications. This is particularly helpful during product development: STARVISC already clearly indicates while running research programmes as to whether the stirred substance can be used as desired.
High-precision measurement
STARVISC measures in a highly precise way and does this even during the manufacturing process. Samples no longer have to be taken separately.
Viscosity calculation
A viscosity calculation can be carried out immediately via a userfriendly menu.
Removable control unit
The modern TFT display is removable. This means that STARVISC can also be controlled from a safe distance.
Powerful stirrer
Even highly viscous substances can be intensively stirred using the powerful STARVISC stirrer.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA STARVISC 200-2.5 Control Measuring Stirrers (2000 rpm, 350°C)
| Stirring quantity max. per stirring position (H2O) | 100 l |
| Motor rating input | 130 W |
| Motor rating output | 84 W |
| Motor principle | Brushless DC |
| Speed display | TFT |
| Speed range | 0/6 - 2000 rpm |
| Intermittent operation | yes |
| Viscosity max. | 100000 mPas |
| Output max. at stirring shaft | 84 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 200 Ncm |
| Torque I max. | 200 Ncm |
| Torque II max. | 40 Ncm |
| Speed range I (50 Hz) | 6 - 400 rpm |
| Speed range II (50 Hz) | 30 - 2000 rpm |
| Speed range I (60 Hz) | 6 - 400 rpm |
| Speed range II (60 Hz) | 30 - 2000 rpm |
| Speed adjustment | stepless |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement n > 300rpm | ±1 % |
| Deviation of speed measurement n < 300rpm | ±3 rpm |
| Stirring element fastening | chuck |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | yes |
| Plug-in coupling (Ø) | 10 mm |
| Chuck range diameter | 0.5 - 10 mm |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Torque display | yes |
| Nominal torque | 2 Nm |
| Torque measurement | yes |
| Deviation of torque measurement I | ±2.5 Ncm |
| Deviation of torque measurement II | ±2.5 Ncm |
| Timer | yes |
| Timer display | TFT |
| Time setting range | 1 - 6000 min |
| Temperature measuring range | -10 - +350 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K |
| Limit deviation temperature sensor | ≤ ± (0.15 + 0.002xITI) K |
| Housing material | alu-cast coating / thermoplastic polymer |
| Communication distance (depend onbuilding) max. | 150 m |
| Dimensions (W x H x D) | 91 x 395 x 231 mm |
| Weight | 5.9 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 130 W |
