IKA SP-5 Viscometers (40°C) - MSE Supplies LLC

IKA SP-5 Viscometers

  • $ 18695


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025006832

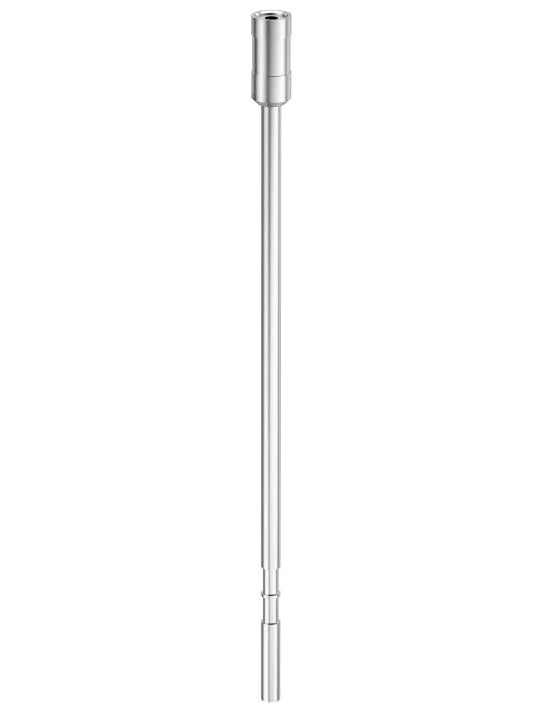

The optional standard spindle SP-5 is suitable for measurement in an extended viscosity range. It is intended to be used in combination with the rotary viscometers ROTAVISC lo-vi Complete or ROTAVISC lo-vi Advanced.

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA SP-5 Viscometers

Spindle geometry Cylinder
Connection Thread M2.5 LH
Quick plug connector yes
Hook connector yes
Diameter 3.2 mm
Immersion depth 18.4 mm
Spindle length 115 mm
Mounting Bracket yes
Sample container: 600mL beaker low
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 5998.7 mPa.s
Max. FSR match ROTAVISC lo-vi 1199744 mPa.s
Min. FSR match ROTAVISC me-vi 64000 mPa.s
Max. FSR match ROTAVISC me-vi 12800000 mPa.s
Min. FSR match ROTAVISC hi-vi I 128000 mPa.s
Max. FSR match ROTAVISC hi-vi I 25600000 mPa.s
Min. FSR match ROTAVISC hi-vi II 512000 mPa.s
Max. FSR match ROTAVISC hi-vi II 102400000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 5 x 117 x 5 mm
Weight 0.004 kg
Permissible ambient temperature 5 - 40 °C
