IKA S 65 C-G65G Dispersing Tool Dispersers (9500 rpm) - MSE Supplies LLC

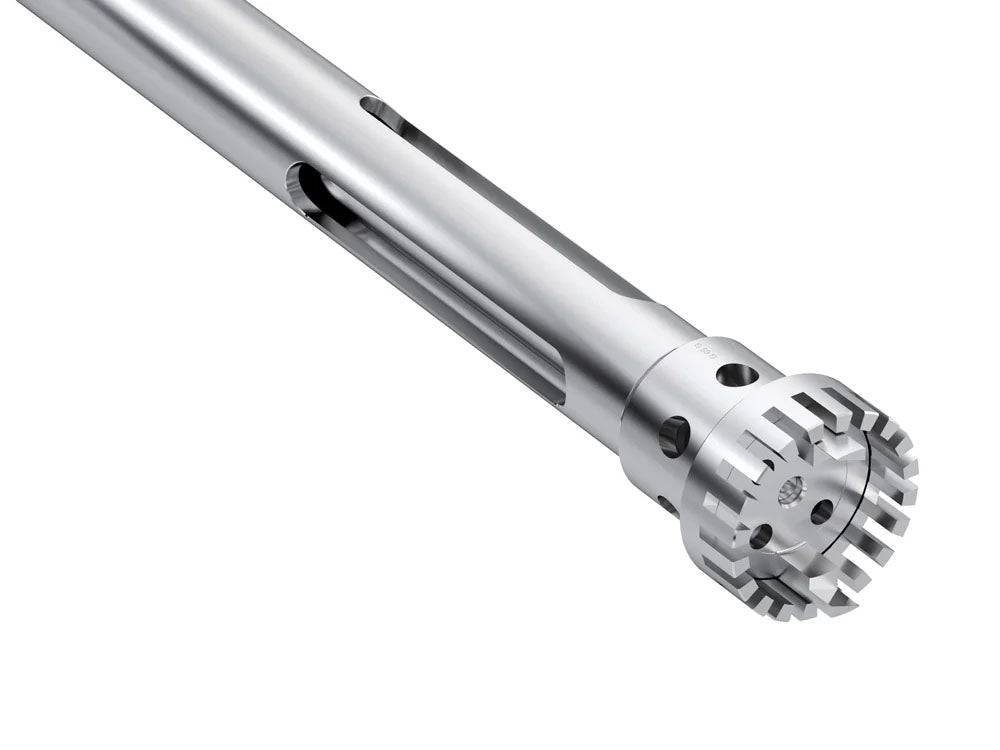

IKA S 65C-G65G Dispersing Tool for T 65 Basic/Digital Disperser

  • $ 7,97295

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0010001665

Dispersing tool for the disperser T 65 basic/digital
Type of sealing and bearing: Ball-bearing and ceramic plain bearing
Product-touching material: AISL 316L, ceramic
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: No
Max. working temperature [°C]: 180
Shaft length [mm]: 520
Diameter stator/rotor [mm]: 65/53
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 93 - 450
Recommend working range [ml]: 2,000 - 50,000

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA 65C-G65G Dispersing Tool for T 65 Basic/Digital Disperser

Volume range (H2O) 2 - 50 L
Stator diameter 65 mm
Rotor diameter 53 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 9500 rpm
Circumferential speed max. 26.4 m/s
Immersion depth 90 - 450 mm
Shaft length 520 mm
Material in contact with medium AISI 316L, ceramic
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 180 °C
Sterilization methods all methods
Ultimate fineness, suspensions 25 - 75 µm
Ultimate fineness, emulsions 5 - 25 µm
Weight 4.09 kg
