IKA S 50 KD - G45G Dispersing Tool Dispersers (10000 rpm) - MSE Supplies LLC

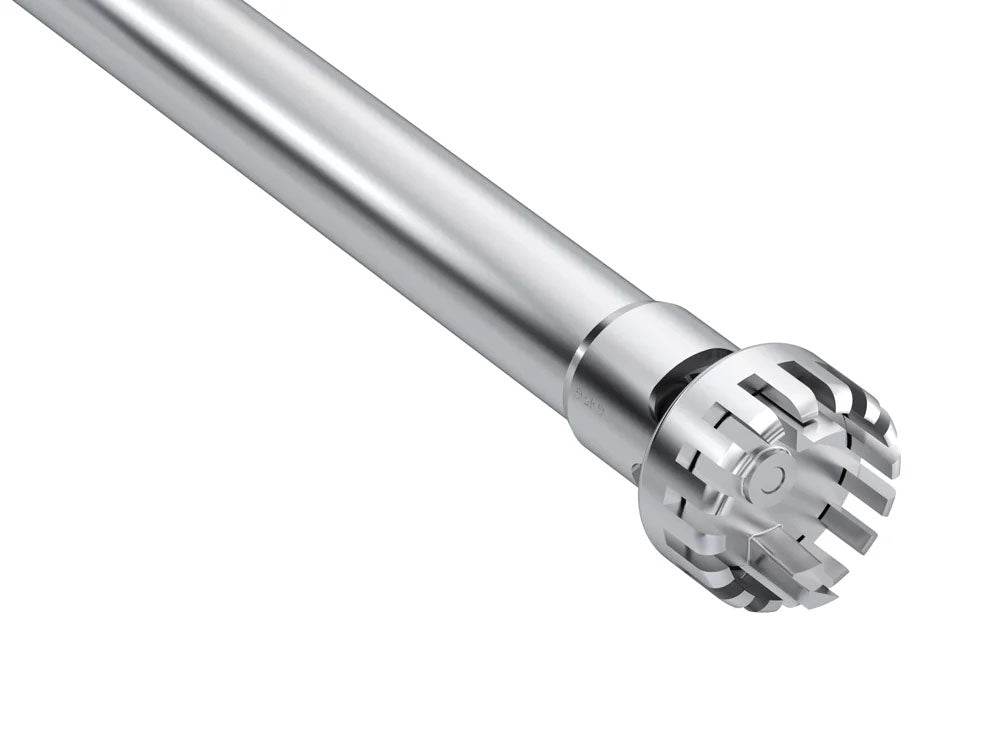

IKA S 50KD-G45G Dispersing Tool for T 50 Digital Disperser

  • $ 5,28195

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0010000629

Dispersing tool for the disperser T 50 digital
Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISL 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. working temperature [°C]: 150
Shaft length [mm]: 300
Diameter stator/rotor [mm]: 45/36
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 70 - 260
Recommend working range [ml]: 500 - 20,000

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA S 50 KD - G45G Dispersing Tool Dispersers (10000 rpm)

Volume range (H2O) 0.5 - 20 L
Stator diameter 45 mm
Rotor diameter 36 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 10000 rpm
Circumferential speed max. 18.8 m/s
Immersion depth 70 - 260 mm
Shaft length 300 mm
Material in contact with medium FFPM, PTFE, AISI316L
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 150 °C
Sterilization methods autoclavable
Vacuum 100 mbar
Ultimate fineness, suspensions 40 - 100 µm
Ultimate fineness, emulsions 10 - 30 µm
Weight 0.9855 kg
