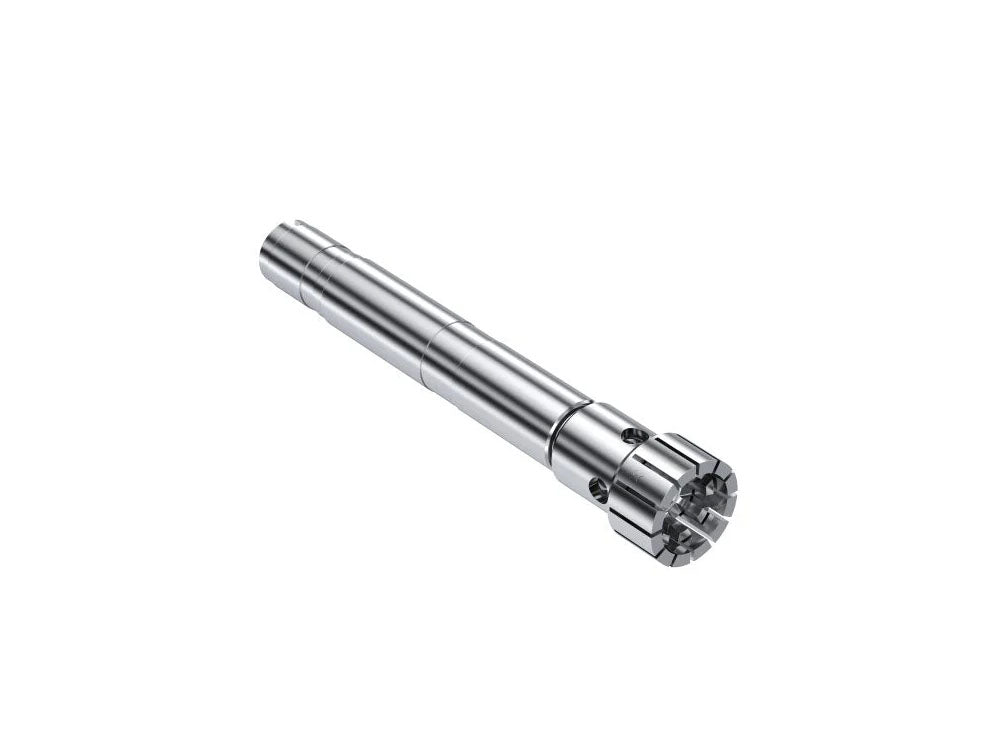

IKA S 25KV-25F-IL Dispersing Tool for UTL 25 Digital Dispenser
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Item number: 0002830200
Specially designed dispersing tool for use with the UTL 25 digital in-line dispersing unit only. The completely sealed internal system prevents samples from entering the main drive and allows for safe operation in a horizontal in-line position.
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA S 25KV-25F-IL Dispersing Tool for UTL 25 Digital Dispenser
|Stator diameter||25 mm|
|Rotor diameter||18 mm|
|Gap between rotor and stator||0.5 mm|
|allowable Speed max.||25000 rpm|
|Circumferential speed max.||23.6 m/s|
|Immersion depth||40 - 85 mm|
|Shaft length||110 mm|
|Material in contact with medium||FFPM / SIC, AISI 316L|
|pH range||2 - 13|
|Suitable for solvents||yes|
|Working temperature max.||220 °C|
|Sterilization methods||all methods|
|Pressure max.||6 bar|
|Ultimate fineness, suspensions||5 - 25 µm|
|Ultimate fineness, emulsions||1 - 5 µm|
