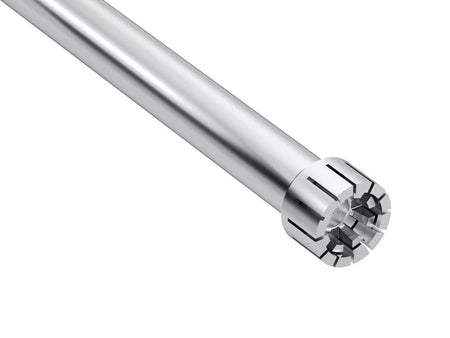

IKA S 25KD-25F Dispersing Tool

  • $ 2,86895

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020002975

Dispersing tool for the dispersers T 25 digital, T 25 easy clean digital/control
Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISI 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. working temperature [°C]: 150
Shaft length [mm]: 194
Diameter stator/rotor [mm]: 25/18
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 40 - 185
Recommend working range [ml]: 100 - 2,000

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA S 25 KD - 25 F Dispersing Tool

Volume range (H2O) 0.1 - 2 L
Stator diameter 25 mm
Rotor diameter 18 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 23.6 m/s
Immersion depth 40 - 185 mm
Shaft length 194 mm
Material in contact with medium AISI 316L, PTFE, ceramic
pH range 2 - 13
Working temperature max. 150 °C
Sterilization methods wet chemical
Vacuum 100 mbar
Ultimate fineness, suspensions 5 - 25 µm
Ultimate fineness, emulsions 1 - 5 µm
Weight 0.404 kg
