IKA RV 10 Auto Pro V-C Complete Rotary Evaporators (280 rpm, 180°C)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Item number: 0010007358

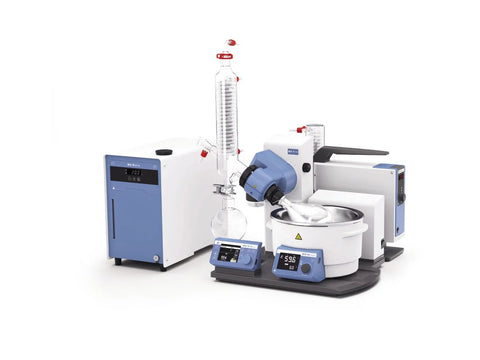

The RV 10 auto pro V-C Complete package is the complete solution for your rotary evaporator setup.
In addition to the rotary evaporator RV 10 auto, the package includes the heating bath HB digital with a capacity of 4 liters, the vacuum pump VACSTAR digital and the recirculating chiller RC 2 lite. All components and connections required for operation are included.
The RV 10 auto is the flagship of the IKA rotary evaporator product line. Among other features, it impresses with its innovative and intuitive operation via a brilliant TFT color graphic display, an integrated vacuum controller, cooling water monitoring and sophisticated safety standards. The RV 10 auto offers all characteristics for efficient, safe and economical operation. This includes the automatic regulation of the vacuum and the amount of cooling water. The individually adjustable cleaning cycle of the vacuum controller reduces the maintenance interval and at the same time extends the service life of the system.
Thanks to specially designed glass guides, the transparently coated vertical condenser with 3 cooling coils uses the cooling surface of 1500 cm² extremely efficiently. The RV 10 auto allows the user to carry out individual processes via the extended programming of ramps. Other innovative features such as soft start, clockwise and anticlockwise rotation in intermittent operation or the timer function for controlling time sequences make everyday laboratory work easier. Safety is ensured by the motorized lift with 'safety-stop' function. In the event of a power failure, it automatically lifts the evaporation flask out of the heating bath. In addition, individually adjustable safety temperature circuits, dry run protection, adjustable end position detection to protect against glass breakage, coated glass sets and a locking function ensure user safety. The USB or RS-232 interface allows remote control using the IKA software labworldsoft® and the option of updating using the Firmware Update Tool.
The included vacuum pump VACSTAR digital is extremely space-saving and achieves a minimum vacuum of 2 mbar. It is controlled directly by the drive unit RV 10 auto using the data cable supplied and enables automatic boiling point detection.
The compact recirculating chiller RC 2 lite with a strong 400 watt cooling capacity and a powerful pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C. The easily accessible and easy-to-clean mesh filter made of stainless steel ensures a consistently high cooling performance for years. Thanks to the natural refrigerant R290, the RC 2 lite is particularly environmentally friendly and well prepared for the future.
Scope of delivery
- RV10 control
- HB digital S099
- VACSTAR digital
- H.SI.8 Tube
- VSE 1
- RC 2 lite
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA RV 10 Auto Pro V-C Complete Rotary Evaporators (280 rpm, 180°C)
|Type of cooling||vertical|
|Cooling surface||1600 cm2|
|Speed range||5 - 280 rpm|
|Reversible direction of rotation||yes|
|Heating temperature range||room temp. - 180 °C|
|Heat output||1300 W|
|Set temperature resolution||±1 K|
|Filling volume max.||3 l|
|Vacuum controller integrated||yes|
|Measurement accuracy +/-||2 mbar|
|Vacuum adjustment range||1050 - 1 mbar|
|Vacuum measurement range||1050 - 1 mbar|
|Dimensions (W x H x D)||500 x 430 x 440 mm|
|Permissible ambient temperature||5 - 40 °C|
|Permissible relative humidity||80 %|
|Protection class according to DIN EN 60529||IP 20|
|RS 232 interface||yes|
|Voltage||220 - 240 V|
|Power input||1400 W|
