IKA R 4013 SY Propeller Stirrer Synthesis Reactors - MSE Supplies LLC

IKA R 4013 SY Propeller Stirrer Synthesis Reactors

  • $ 40895


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020114113

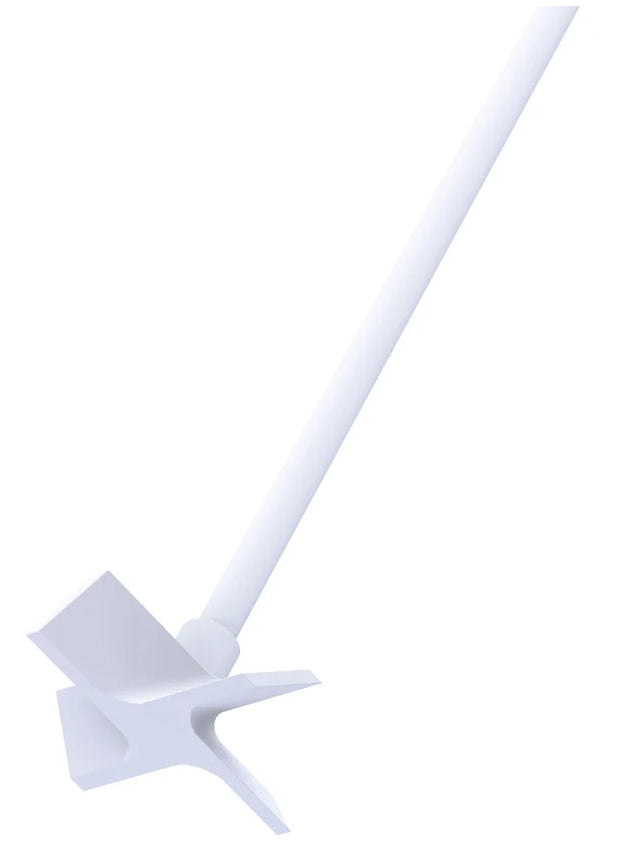

PTFE-coated propeller stirrer.
Shaft length: 530 mm
Shaft diamter: 10 mm
Dimensions stirring tool (W/H): 75 mm / 15 mm
Suitable for the EasySyn reactor system with reactor vessels SY 5000 und SY 5000 D (Volume: 5000 ml).

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA R 4013 SY Propeller Stirrer Synthesis Reactors

Nominal length 530 mm
Stirrer design Pitched blade
Shaft diameter 10 mm
Drive shaft diameter 8 mm
Height (agitator unit) 15 mm
Width (agitator unit) 75 mm
Depth (agitator unit) 75 mm
Flow direction axial
Flow direction for clockwise rotation upwards
Material in contact with medium PTFE
