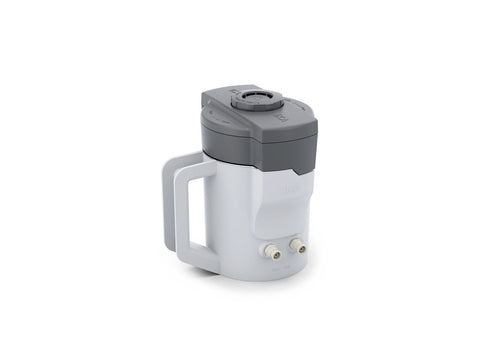

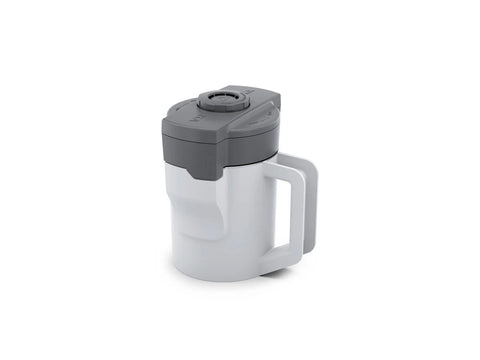

IKA MultiDrive MI 400 T – S Sealed Vessel with Beater and Temperature Sensor
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Item number: 0020112100
MI 400 T - S is a specially sealed vessel with beater and temperature sensor. In combination with MultiDrive control, it is suitable for dry grinding of a variety of applications, such as wood, pet food, frozen products or plastics.
The special vessel seal allows pressure to be released via the lid during the comminution process of for example very fine powder. The product is held in the vessel by a special foam.
The integrated temperature sensor allows continuous monitoring and individual setting of the temperature limit. This is especially important for temperature-sensitive materials.

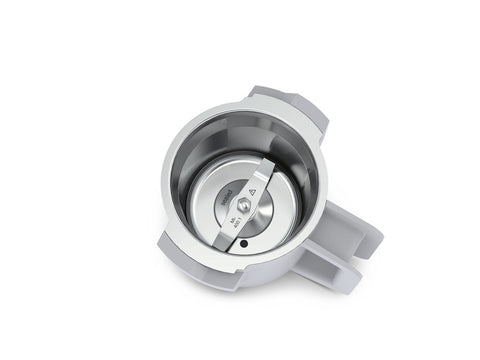

The milling chamber has to be cleaned manually. The beater can be easily dismantled for intensive cleaning.
A standard stainless steel beater is included with the scope of delivery. Other optional tools, such as a star knife mado of stainless steel or a beater made of hard metal are available separately.
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA MultiDrive MI 400 T – S Sealed Vessel with Beater and Temperature Sensor
|Speed range||3000 - 20000 rpm|
|Circumferential speed max.||85 m/s|
|Useable volume max.||400 ml|
|Feed hardness max.||5 Mohs|
|Feed grain size max.||7 mm|
|Material beater/cutter||stainless steel 1.4034|
|Material milling chamber||stainless steel 1.4301|
|Material (other)||stainless-steel, silicone, SIC|
|Power-ON time||30 min|
|Power-OFF time||10 min|
|Milling chamber, can be cooled with water||yes|
|Mill feed can be cooled in milling chamber with dry ice||yes|
|Data transfer drive/vessel||Wireless with RFID|
|Monitoring maintain time||yes|
|Temperature measurement resolution||0.1 K|
|Accuracy of temperature measurement||±5 K|
|Temperature limit min.||-50 °C|
|Temperature limit max.||120 °C|
|Beater/Knife diameter||81 mm|
|Suitable for abrasive substances||yes|
|Dimensions (W x H x D)||160 x 180 x 160 mm|
|Permissible ambient temperature||5 - 40 °C|
|Permissible relative humidity||80 %|
