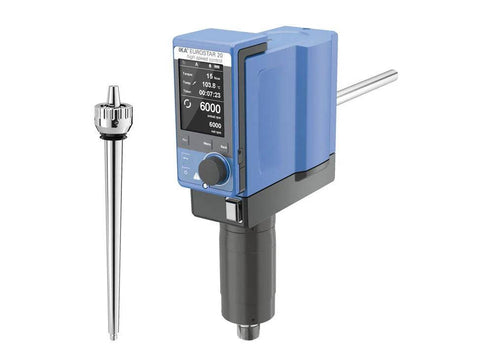

IKA EUROSTAR 20 High Speed Control Overhead Stirrers (20 L, 6000 rpm)

  • $ 4,35995

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025001463

High speed laboratory stirrer designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/150 - 6000 rpm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters, and an update of the current firmware. An integrated torque trend display is provided for the measurement of viscosity changes. The included precision stirrer shaft is 280 mm long and has a maximum immersion depth of 220 mm.
  • Multilingual TFT display
  • Programmable functions
  • Integrated temperature measurement
  • Interval operation
  • Timer function
  • Adjustable safety circuit
  • Locked function
  • Infinitely adjustable speed
  • Push-through agitator shafts
  • Overload protection
  • Short-term overload operation
  • Slim casing
  • Quiet operation
  • Error code display
  • H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
Scope of delivery
  • EUROSTAR 20 high speed control
  • R 6000 precision shaft
  • Open-end wrench
  • Hook spanner
  • H 67.60 Temperature sensor, stainless steel
  • WH11
  • OS 1.0 WiCo power supply unit
  • USB Cable - USB A to Micro-B, 2 m
  • USB cable micro A – micro B 2.0
  • Screw driver
  • Protective cover for WiCo contact

                                                                        About IKA

                                                                        Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

                                                                        Technical Data of IKA EUROSTAR 20 High Speed Control Overhead Stirrers (20 L, 6000 rpm)

                                                                        Stirring quantity max. per stirring position (H2O) 20 L
                                                                        Motor rating input 176 W
                                                                        Motor rating output 125 W
                                                                        Motor principle Brushless DC
                                                                        Speed display TFT
                                                                        Speed range 0/150 - 6000 rpm
                                                                        Intermittent operation yes
                                                                        Viscosity max. 10000 mPas
                                                                        Output max. at stirring shaft 125 W
                                                                        Permissible ON time 100 %
                                                                        Torque max. at stirring shaft 20 Ncm
                                                                        Speed adjustment stepless
                                                                        Setting accuracy speed ±1 rpm
                                                                        Deviation of speed measurement n > 300rpm ±1 %
                                                                        Deviation of speed measurement n < 300rpm ±3 rpm
                                                                        Stirring element fastening special output shaft
                                                                        Connection for ext. temperature sensor PT1000
                                                                        Temperature display yes
                                                                        Fastening on stand extension arm
                                                                        Extension arm diameter 16 mm
                                                                        Extension arm length 220 mm
                                                                        Torque display yes
                                                                        Nominal torque 0.2 Nm
                                                                        Torque measurement trend
                                                                        Deviation of torque measurement I ±6 Ncm
                                                                        Timer yes
                                                                        Timer display TFT
                                                                        Time setting range 1 - 6000 min
                                                                        Temperature measuring range -10 - +350 °C
                                                                        Temperature measurement resolution 0.1 K
                                                                        Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
                                                                        Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
                                                                        Housing material alu-cast coating / thermoplastic polymer
                                                                        Communication distance (depend onbuilding) max. 150 m
                                                                        Dimensions (W x H x D) 86 x 325 x 230 mm
                                                                        Weight 5.242 kg
                                                                        Permissible ambient temperature 5 - 40 °C
                                                                        Permissible relative humidity 80 %
                                                                        Protection class according to DIN EN 60529 IP 40
                                                                        RS 232 interface yes
                                                                        USB interface yes
                                                                        Voltage 115 V
                                                                        Frequency 50/60 Hz
                                                                        Power input 176 W
