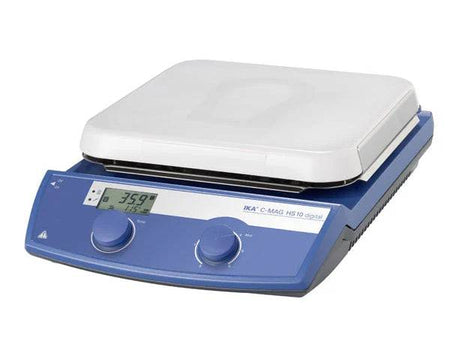

IKA C-MAG HS 10 Digital Magnetic Stirrers (1500rpm, 500°C)
SKU: 0004240401
IKA C-MAG HS 10 Digital Magnetic Stirrers (1500rpm, 500°C)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0004240401
Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 15 L (H2O)
- Simultaneous digital display of target and actual temperatures via LCD display
- Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
- Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
- Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
- 3 operating modes to choose (standard, safe, adjustment protection)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Digital error code display
- Elevated control panel for protection against leaking liquids
Scope of delivery
- C-MAG HS 10 digital
- PT 1000.60 Temperature sensor, stainless steel
- IKAFLON® 20 Magnetic stirring bar
- IKAFLON® 30 Magnetic stirring bar
- IKAFLON® 40 Magnetic stirring bar
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA C-MAG HS 10 Digital Magnetic Stirrers (1500rpm, 500°C)
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 15 L |
Motor rating output | 1.5 W |
Speed adjustment | scale 0 - 6 |
Speed range | 100 - 1500 rpm |
Stirring bar length max. | 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +1 K |
Heat output | 1500 W |
Temperature display set-value | LCD |
Temperature display actual-value | LCD |
Heating temperature range | 50 - 500 °C |
Heat control | Turning knob |
Heating rate heating plate | 5 K/min |
Temperature setting resolution of heating plate | 5 K |
Connection for ext. temperature sensor | PT1000 |
Fixed safety circuit | 550 °C |
Set-up plate material | ceramic |
Set-up plate dimensions | 260 x 260 mm |
Dimensions (W x H x D) | 300 x 105 x 415 mm |
Weight | 8.308 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
Voltage | 120 V |
Frequency | 50/60 Hz |
Power input | 1520 W |
