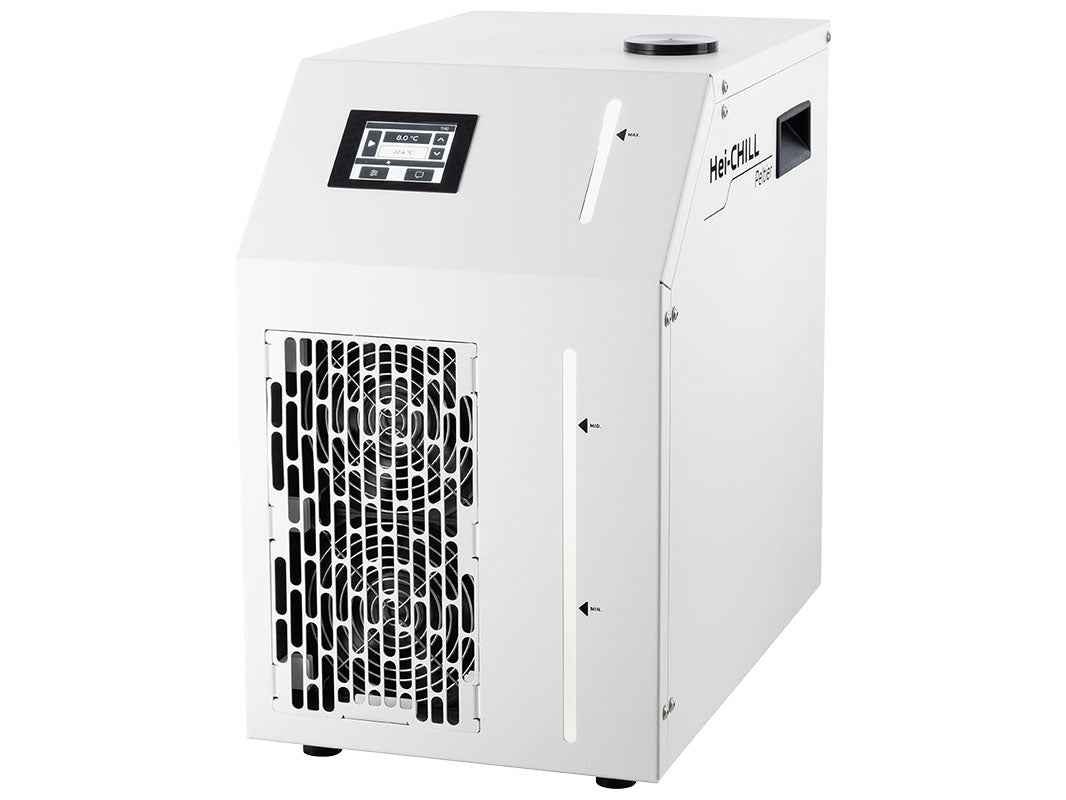

Heidolph Hei-CHILL Peltier
SKU: 0036306533
Hei-CHILL Peltier
With a high cooling capacity of 600 watt and a heating power being almost twice as high, the Hei-CHILL Peltier thermostat is suitable for a large number of temperature control tasks. The thermostat can be integrated in processes by means of the Hei-PROCESS solutions using different interfaces. Furthermore, the device can be directly controlled via a Hei-VAP Expert Control or Ultimate Control rotary evaporator as recirculation chiller or can be used independently by the integrated touch display.
- 6 liter tank volume for temperature stability, even under sustained load
- Precise temperature regulation and stability of ≤ 0,05 °C
- Operating temperature range of -10 °C to 70 °C
- Modern 2.83” touch display
- Ethernet, RS 232 and RS 485 interfaces for the integration in processing solutions
Product Parameters
| Flow rate | max. 3 l / min |
| Weight | 15 kg |
| Temperature measurement accuracy | 0.05 °C |
| Acoustic pressure | 63 db |
| Temperature range | -10 - 70 °C |
| Control | Panel: 5“ Touchscreen |
| Interfaces | Ethernet, RS 232, RS 485 |
| Heating power | >1000 W |
| Cooling capacity | 600 W |
| Dimensions (w/d/h) | 27 x 43 x 43 cm |
