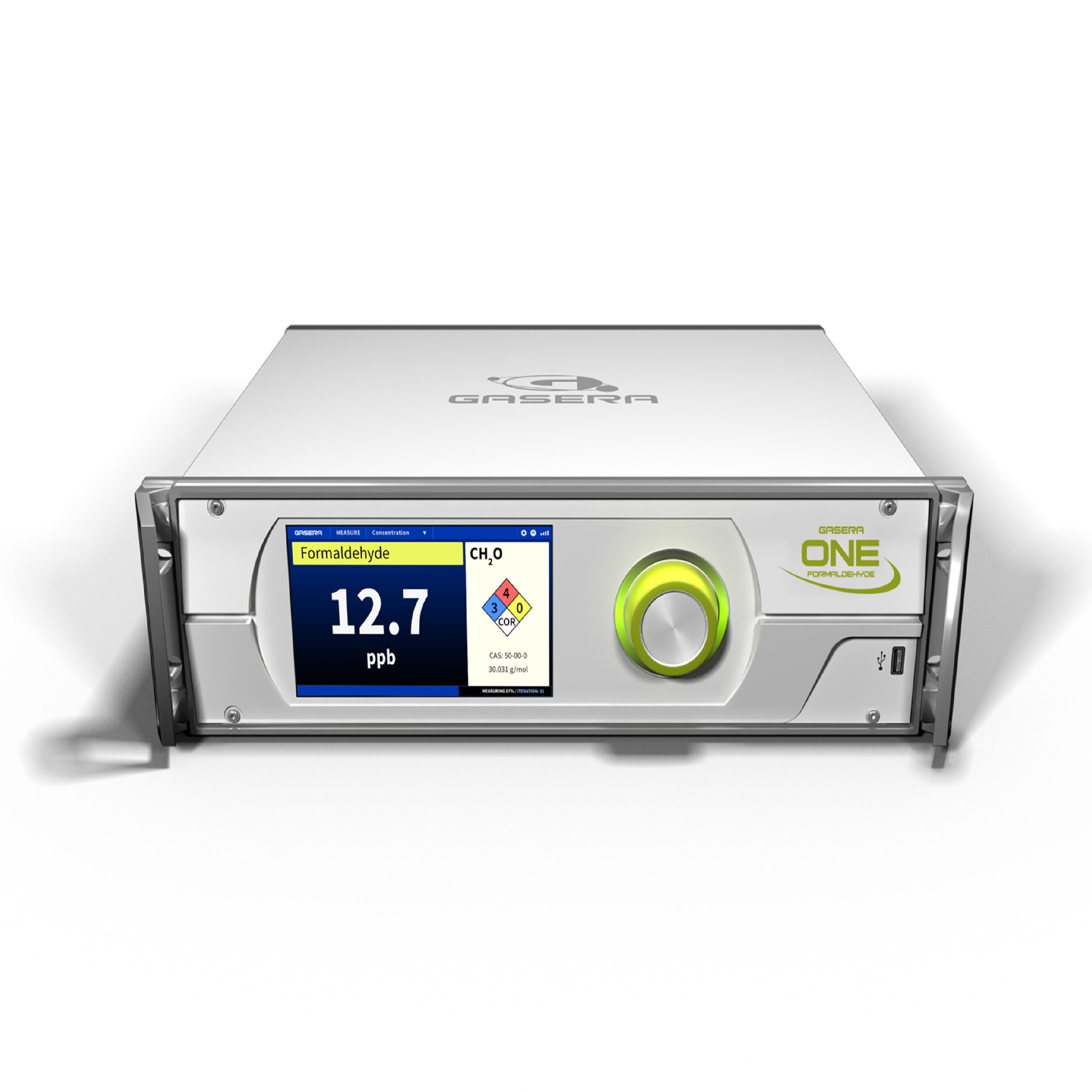

Gasera One Formaldehyde Gas Analyzer

Gasera One Formaldehyde Gas Analyzer

MSE Supplies is an authorized distributor of Gasera Products in the US. Please fill out the application questionnaire and contact us to discuss the application and configurations.

Introduction

Formaldehyde levels above 0.1 ppm can cause acute health problems, e.g. sore throat, skin irritation, nausea, scratchy eyes and cough. It is also classified as highly carcinogenic compound. Exposure to moderate amounts of formaldehyde has been linked to cancer, such as leukemia.

GASERA ONE FORMALDEHYDE analyzer is based on combining ultra sensitive cantilever enhanced photoacoustic detection technology with Quantum Cascade Laser source operating at a Mid-IR fundamental spectral absorption line of formaldehyde. This combination provides enough sensitivity to reliably measure ambient background levels of formaldehyde. It also gives an exceptionally high level of stability with a re-calibration period ranging from several months up to several years, and thus it offers a low total cost of ownership.

Features

• Selective monitoring of formaldehyde with below 1 ppb detection limit
• Response time user configurable from 10 seconds to few minutes

• Wide dynamic range and stable operation
• No consumables

• Low sample volume (few ml)

• Built-in gas exchange system

• Recommended re-calibration interval of 12 months

• User configurable monitoring tasks

• Intuitive user interface

• Built-in display presents results both numerically and graphically

• Measurement pressure is actively controlled to be constant

• Gas cell is stabilized to 50°C temperature

Measurement Performance

• Detection Limit: < 1 ppb
• Response Time: 10 seconds to several minutes (configurable)
• Dynamic Range: > 100,000× detection limit
• Repeatability: < 1% of measured value
• Accuracy: Better than ±5% at calibration concentration
• Stability: No drift due to ambient temperature or pressure variations within recommended working conditions

• Form Factor: 19” 3U rack-mount / tabletop unit
• Dimensions: 48.4 × 13.9 × 44 cm (19.1 × 5.5 × 17.3 in)
• Weight: ~13 kg
• Display: Built-in computer with 7” WSVGA screen
• Internal Gas Volume: 30 ml
• Data Storage: ≥ 1 year continuous monitoring

• Temperature: 0°C to +40°C
• Humidity: Non-condensing
• Pressure: 750–1050 mbar
• Dust/water resistance: IP20 (IEC 529)

Sample Gas Conditions:

• Temperature: 0°C to +49°C
• Humidity: Up to 99% RH (non-condensing, temperature dependent)
• Flow Rate: ~0.6 L/min
• Particle Size: < 1 µm

• Input Voltage: 90–264 VAC, 47–63 Hz
• Power Consumption: Max. 75 W
• Interfaces: Ethernet, USB, optional Serial
• Protocols: MODBUS, AK protocol
• Outputs: Current or voltage signal

• Low Voltage Directive 2014/35/EU
• EMC Directive 2004/108/EC
• RoHS 2 Directive 2011/65/EU

• Fence-line monitoring

• Biogas plants

• New buildings

• Wood products

• Traffic emissions

• Indoor air quality

• Laboratory Occupational safety
