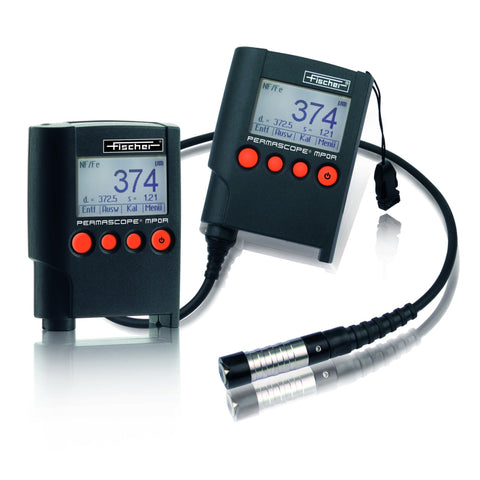

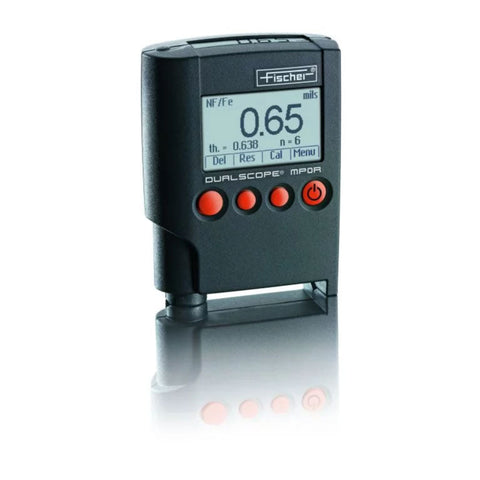

Fischer MP0R® Series Pocket All-rounders with USB-Interface for Mobile Coating Thickness Measurement
SKU: DUALSCOPE_MP0R
Fischer MP0R® Series Pocket All-rounders with USB-Interface for Mobile Coating Thickness Measurement
Compact. Precise. Always Ready.
MP0R Series – Pocket-Sized Coating Thickness Gauges for Everyday Use
The MP0R® Series are Fischer’s compact, all-purpose coating thickness gauges designed for fast, reliable, and non-destructive measurements in corrosion protection and industrial coating applications. Combining robust construction, intuitive operation, and proven dual-method technology, these handheld gauges deliver laboratory-grade accuracy in the palm of your hand.
With two bright displays, a durable housing, and an ergonomic design that fits easily into any pocket, the MP0 series is the ideal companion for technicians, inspectors, and QA professionals who need dependable performance on the go.
Key Features
- Dual Measurement Principle – DUALSCOPE® models automatically select between magnetic induction (for coatings on ferromagnetic substrates) and eddy current (for coatings on non-ferromagnetic substrates).
- Compact Design – Lightweight, pocket-sized, and ready for field or shop use.
- Integrated Probe – Built-in probe ensures consistent contact and repeatable readings.
- Dual Display Readout – Illuminated front and top displays for easy visibility in any orientation.
- Flexible Models – Available as DELTASCOPE®, ISOSCOPE®, or DUALSCOPE® versions depending on substrate and application.
- High-Precision Measurement – Excellent repeatability even on rough surfaces.
- Durable Construction – Designed for thousands of measurements with a wear-resistant probe pole.
- Data Memory – Store up to 10,000 readings (MP0R)
- Easy Calibration – Quick single- or dual-point calibration with automatic substrate recognition.
Technical Specifications
|
Parameter |
Specification |
|
Measuring Methods |
Magnetic induction / Amplitude-sensitive eddy current |
|
Measurement Range |
DUALSCOPE®: 0–2,000 µm / ISOSCOPE®: 0–1,200 µm / PERMASCOPE®: 0–2,500 µm |
|
Accuracy |
±(1 µm + 1% of reading), depending on range and probe |
|
Data Memory |
10,000 readings (MP0R) |
|
Temperature Compensation |
Automatic conductivity correction |
|
Display |
Dual illuminated LCD |
|
Power Supply |
2 × AAA batteries |
|
Dimensions / Weight |
64 × 30 × 85 mm / 150 g |
Ideal for a Wide Range of Applications
- Paint, powder, or zinc coatings on steel, iron, or cast iron
- Anodized or painted coatings on aluminum, copper, or brass
- Quality control in galvanizing, automotive, and metal finishing
- Fast spot-checks on smooth or rough surfaces
Rugged, reliable, and remarkably easy to use—the MP0®/MP0R® Series delivers Fischer’s renowned precision in a truly portable form. Whether checking paint thickness on site or verifying zinc coatings in production, these compact instruments give you dependable results in seconds.
