Home » Eyela Low Temperature Bath for Synthesis, AC115V 60HZ 1.5kVA, US Plug
Eyela

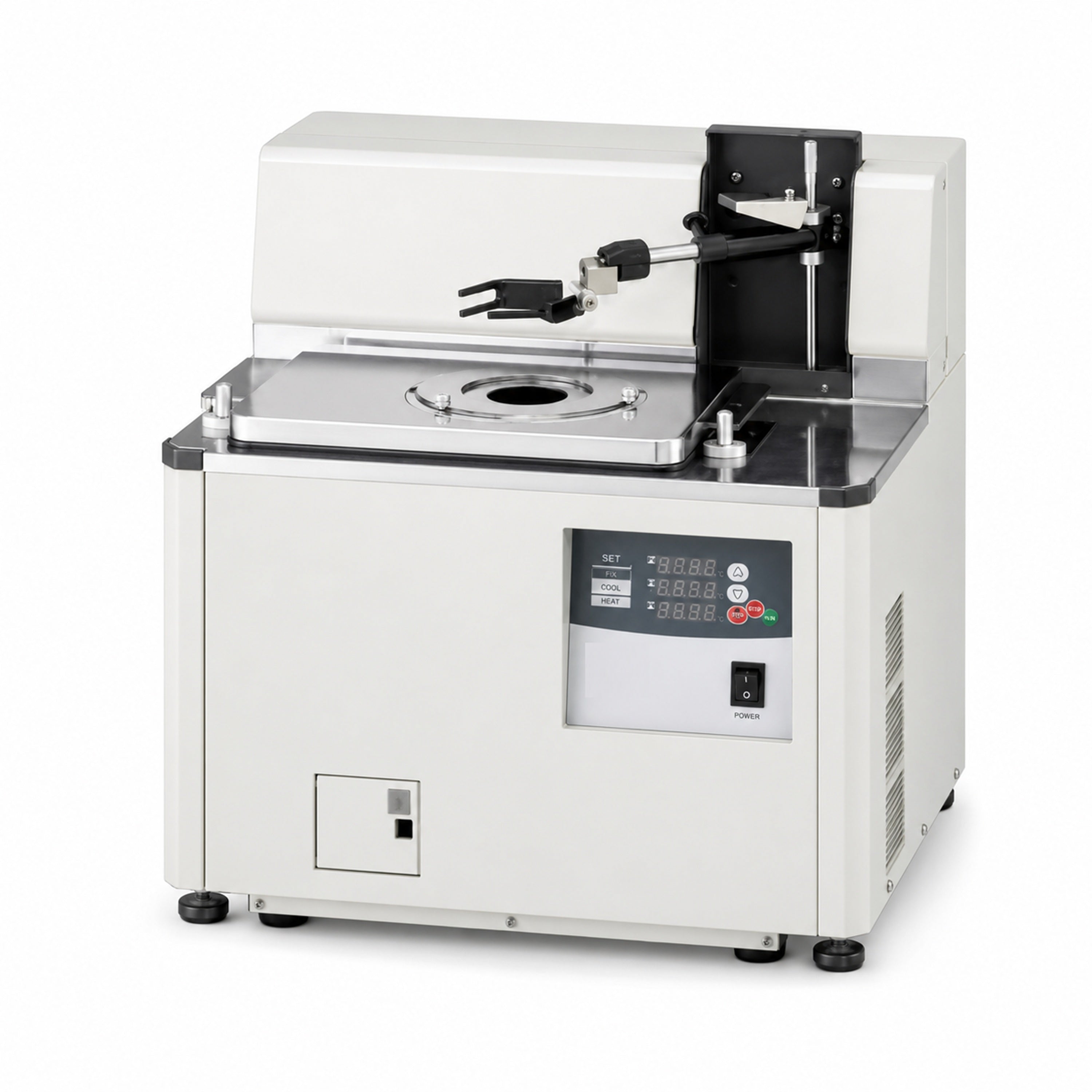

Eyela Low Temperature Bath for Synthesis, AC115V 60HZ 1.5kVA, US Plug

Order upon Request
SKU: W2263400-1
$ 12,772.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

Eyela Low Temperature Bath for Synthesis, AC115V 60HZ 1.5kVA, US Plug

Four types covering a wide temperature range

  • Stirring both the inside of the bath and the reaction vessel ensures precise and uniform sample temperature control.
  • The heater in PS-1100 is compatible with both water and oil, making it suitable for synthetic reactions in water bath as well as temperature-controlled synthesis and polymerization reactions using oil.
  • PS-1100, as well as PSL-1400 and PSL-1810 are benchtop type and can be installed in a fume hood.
  • PSL-1810 and PSL-2000 enable stable, long-term temperature control at -80°C, which cannot be achieved with dry ice-acetone or ice.
  • PSL-1810 features a water bath with a vacuum insulation system that offers excellent thermal insulation. It can operate continuously for up to 7 days at -78°C. Additionally, it is equipped with a timer function (auto-start and auto- stop) to enhance operational efficiency.
  • PSL-1810 and PSL-2000 are equipped with the cover that can adjust the opening size to fit the sample vessel's diameter, reducing the evaporation of anti-freeze with a shutter mechanism. It is optional for PSL-1400.
  • PSL-2000 comes with a pole for attaching dosage tubes and sensors.

Specifications

Model

PSL-1810

Cat. No.

226348

Temperature control range

-80 to 0℃

Temperature control accuracy

±1°C or less (center of bath)

Rotation speed range

100 to 800rpm

Temperature control

Heater PID control Refrigerator continuous operation

Sensor

Platinum resistance thermometer Pt100 ohms

Temperature setting display

Membrane keypad input digital setting display

Safety features

Earth leakage . overcurrent breaker, Independent overheat protector, Refrigerator
high pressure switch, Overload relay holding circuit, Float switch (PSL-1810)



Self-diagnostic function (heater disconnection, sensor abnormality,
upper and lower limit temperature alarm, SSR abnormality, motor error, memory error,

power failure alarm, low water level). Refrigerator protection timer

Timer function

Auto start Auto stop

Heater

450W

Stirrer motor

Speed control motor output 25W

Refrigerator refrigerants

Air-cooled output 450W x 2 R507A R23

Inner bath dimensions (mm) capacity

180 ID x 140H 3.5L

Bath material

Stainless steel

Max capacity and d'ameter of vessel used

300mL  95mm diameter

Ambient temperature range

5 to 35°C

Outer dimensions (mm)

530(537)W x 450D x 522(554)H

Weight

Approx. 74kg

Power input supply voltage

AC115V 60HZ 1.5kVA, US Plug

* The temperature control range may not be achieved in environments where the
ambient temperature is below 10°C or above 30°C depending on the power supply voltage (PSL-1400)

* The ultimate cooling temperature is -78°C when the room temperature is 35°C (PSL-1810)

Accessories

Teflon stirring bar (20mm) 1 pc.
Clamp (tightening 20 to 85mm diameter)

Cover with shutter (variable 10 to 150mm diameter)
