ELVEFLOW MUX Quake Valve
SKU: MUX-Q
To better serve you, we would like to discuss your specific requirement. Please Contact Us for a quote.
-Request a Quote
This product has been added to the Quote cart.
ELVEFLOW MUX Quake Valve
Buy ELVEFLOW products from MSE Supplies at the best value.
Product Description

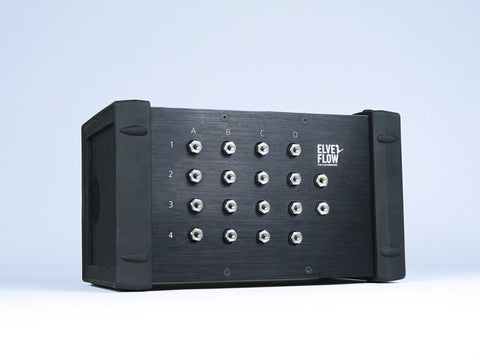

PDMS Quake Valve Controller

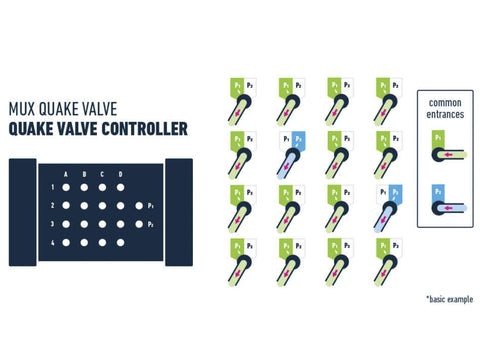

The module includes 16 independently controlled 3-way valves
Working range from 0 to 2 bar

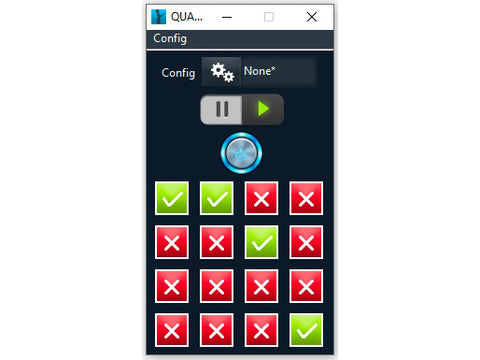

Elveflow® Smart Interface software included.
/! Without accessories /!
With this matrix of3:2 valves, you can simply choose when to put your PDMS bilayer valve under pressure. When fed by our OB1 MK3+ pressure controller, the 0.005% stability enables fine control and stable valve position.
Complex Flow Patterns
Our profile editor will allow you to easily program subtle valve patterns and to repeat a set of steps in a loop to automate the most sophisticated protocols.
Setup Synchronization
The MUX Quake offers input/output TTL triggers set to easily synchronize your instrument with any Elveflow® device, microscopes or mechanical shutter. Thus, you can have a full control of all the devices involved in your microfluidic experiment
Other instrument highlights include:
Plug & play programmable valve sequence
Fast valve switching (20 ms)
Fine valve position tuning (when coupled with the OB1 MK3+ pressure controller)
Flexible: control up to 256 valves by using several MUX Quakes
Internal/external trigger
PEEK valves compatible with 10-32 microfluidic fittings.
ROCKER® valve technology.
Specifications
Mux Series
Cross Chip
Flow Switch Matrix
Quake Valve
Performances
Valves actuation time
20 ms
Max. supported pressure
2 bar (29 PSI)
Power Supply
Input voltage range, AC
100 V to 240 V
AC supply frequency
50 Hz to 60 Hz
Input current, AC
1 A
Power Consumption
35 W
Safety
IEC/EN 61010-1: 2001
Shutting down power supply
Disconnect AC/DC adapter
Mechanical Specifications
Valve type
2/2-way solenoid valve
3/2-way solenoid valve
Input/output connectors
10-32 UNF
1/4-28 UNF
10-32 UNF
Wetted material
POM, Viton, PEEK, FKM
PEEK, FKM
POM, Viton, PEEK, FKM
Operating temperature
10° C to 40° C
Operating humidity
20 to 80%
Software
Computer specifications
USB 2.0 port, Intel Pentium II 500 MHz, 1 Go Hard Disk space, 2 Go RAM Windows XP and newer, 32/64 bit. LabVIEW* 2011 is required when using LabVIEW* libraries.
Connection type
USB
Provided elements
C++, Python, MATLAB* and LabVIEW* Libraries
MUX SERIES DIMENSIONS without connectors (length x width x height): 220 x 130 x 130 mm
