Cleaver Scientific omniPAGE WAVE Maxi Accessories

Cleaver Scientific omniPAGE WAVE Maxi Accessories

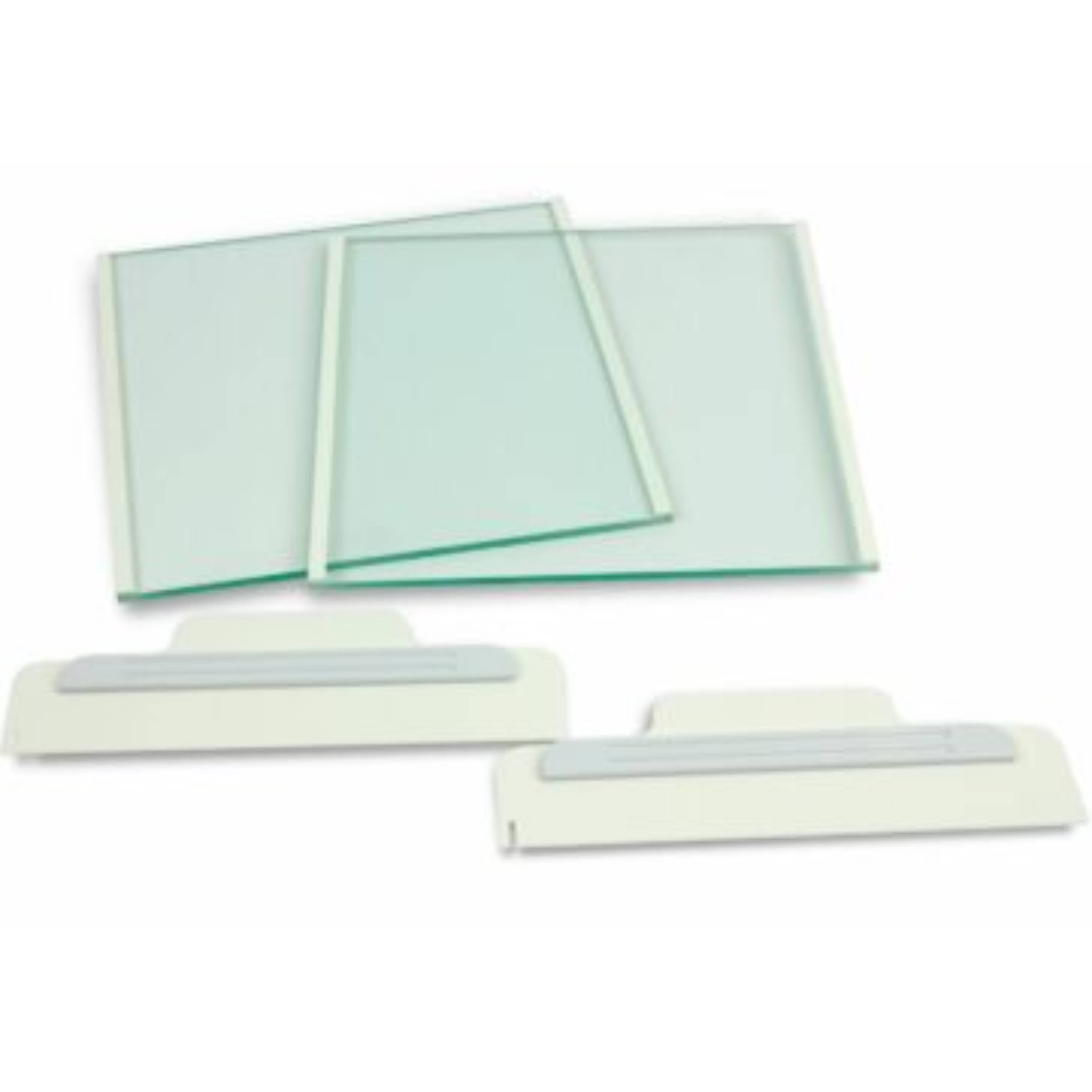

omniPAGE WAVE Maxi – IEF Conversion Kit

Conversion for 18cm IPG Strips and Tube Gels for use with CSL-IEF system.

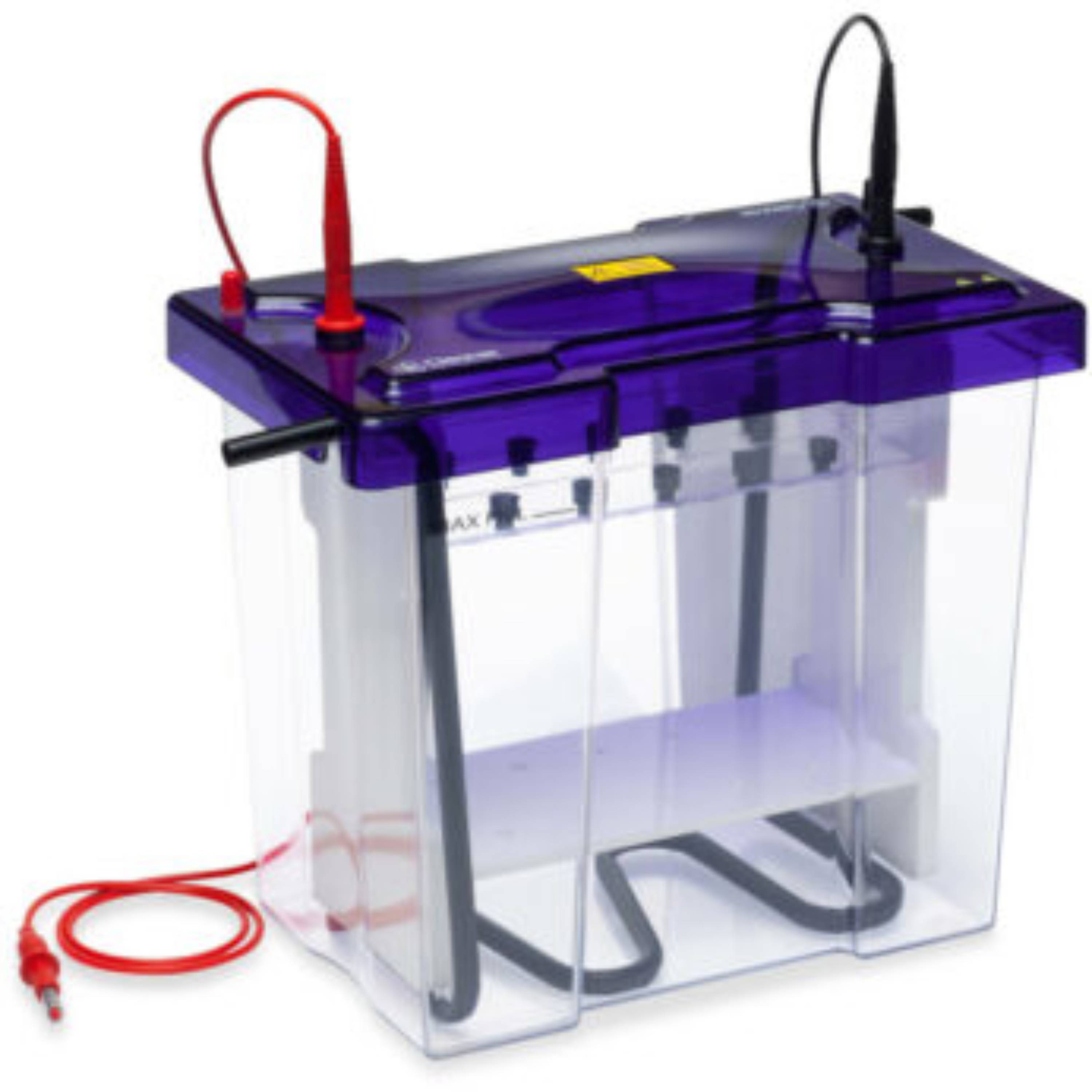

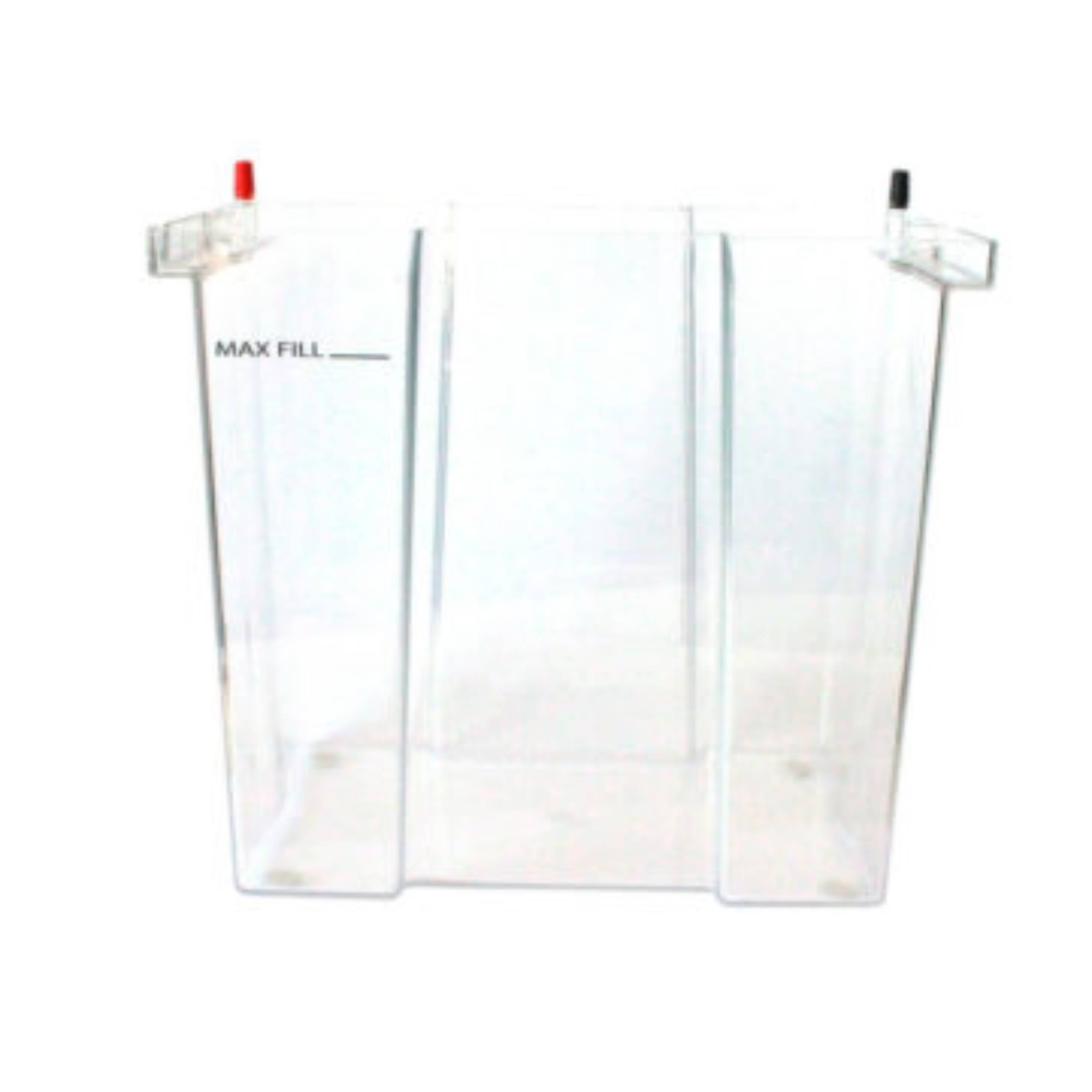

omniPAGE WAVE Maxi Tank

Replacement tank for omniPAGE WAVE Maxi vertical electrophoresis system.

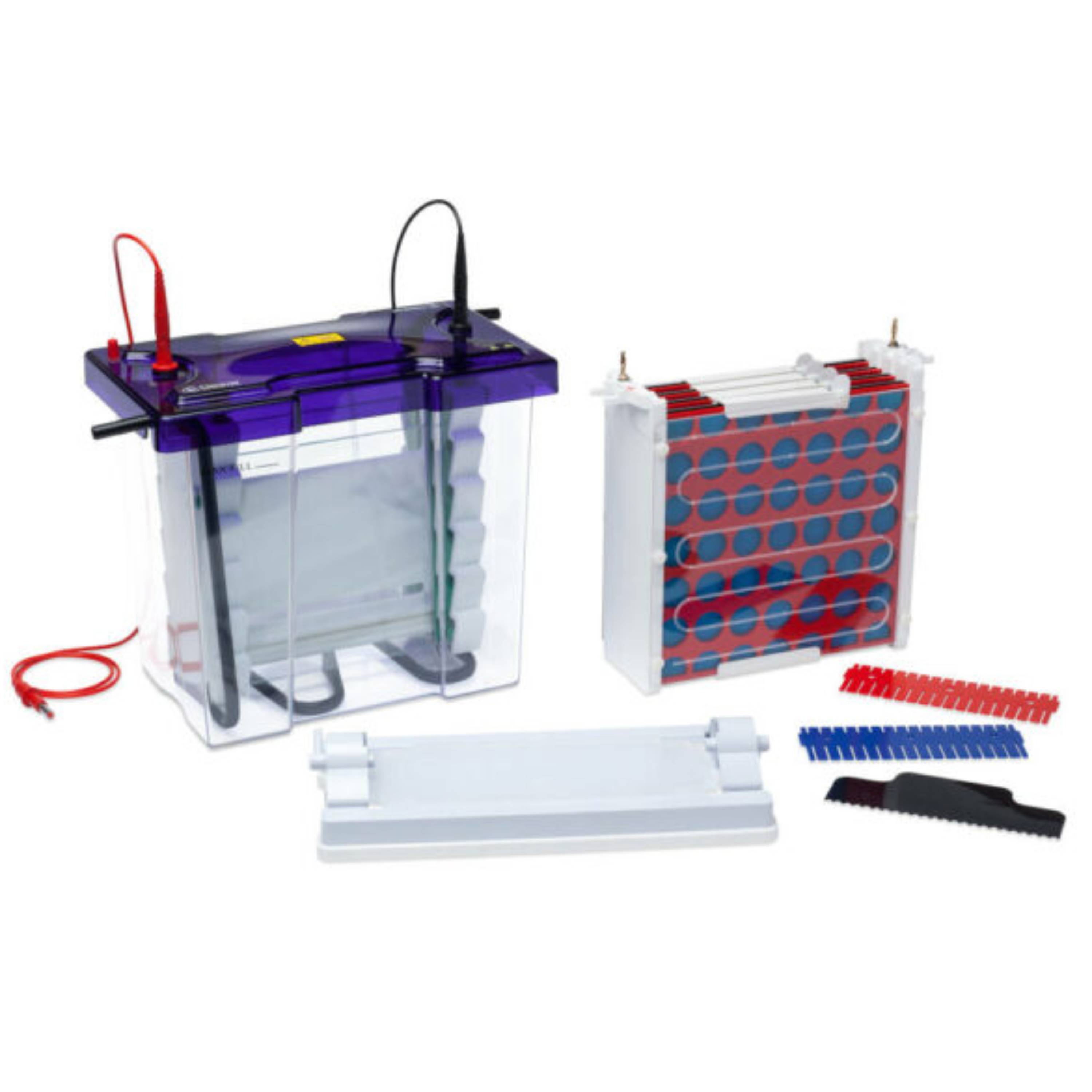

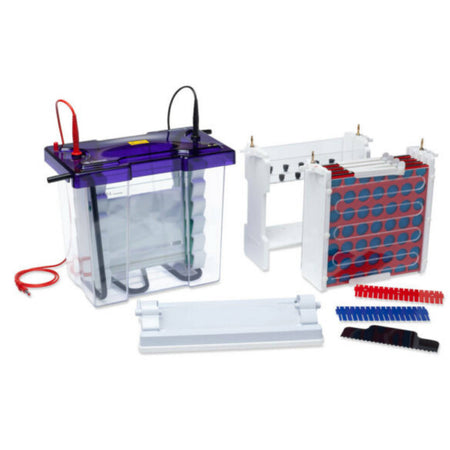

omniPAGE WAVE Maxi Packages

Complete packages for PAGE, Blotting and 2D electrophoresis Modular Inserts allow use of a single buffer tank Available with Power Supplies

Specifications:

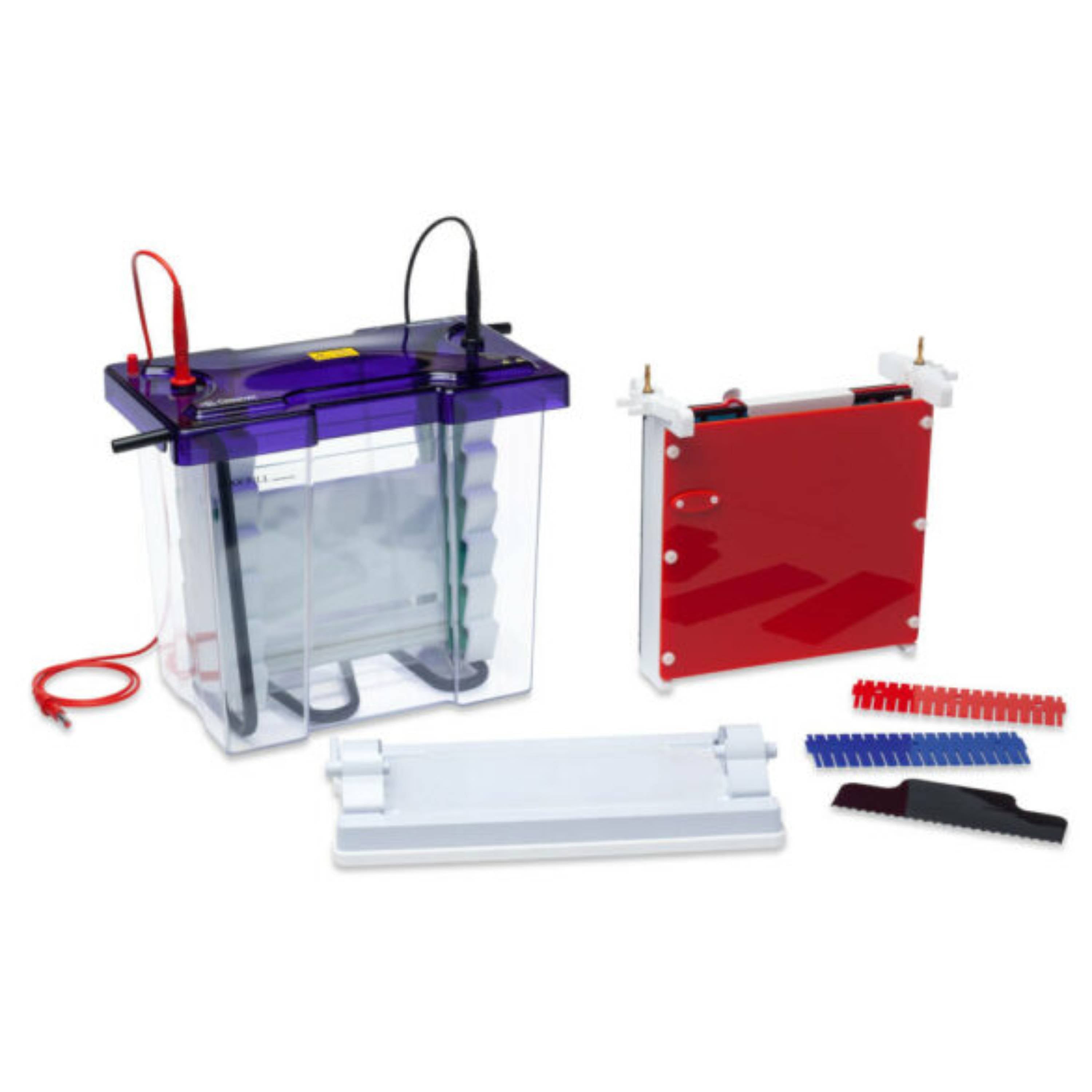

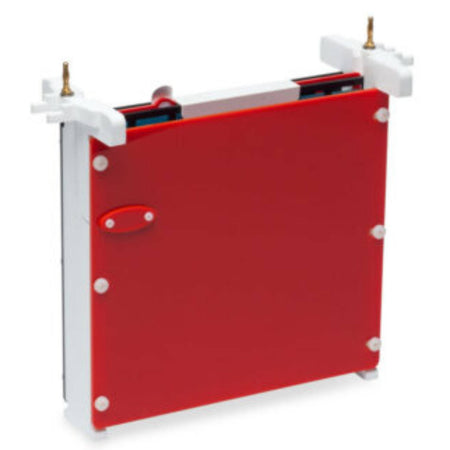

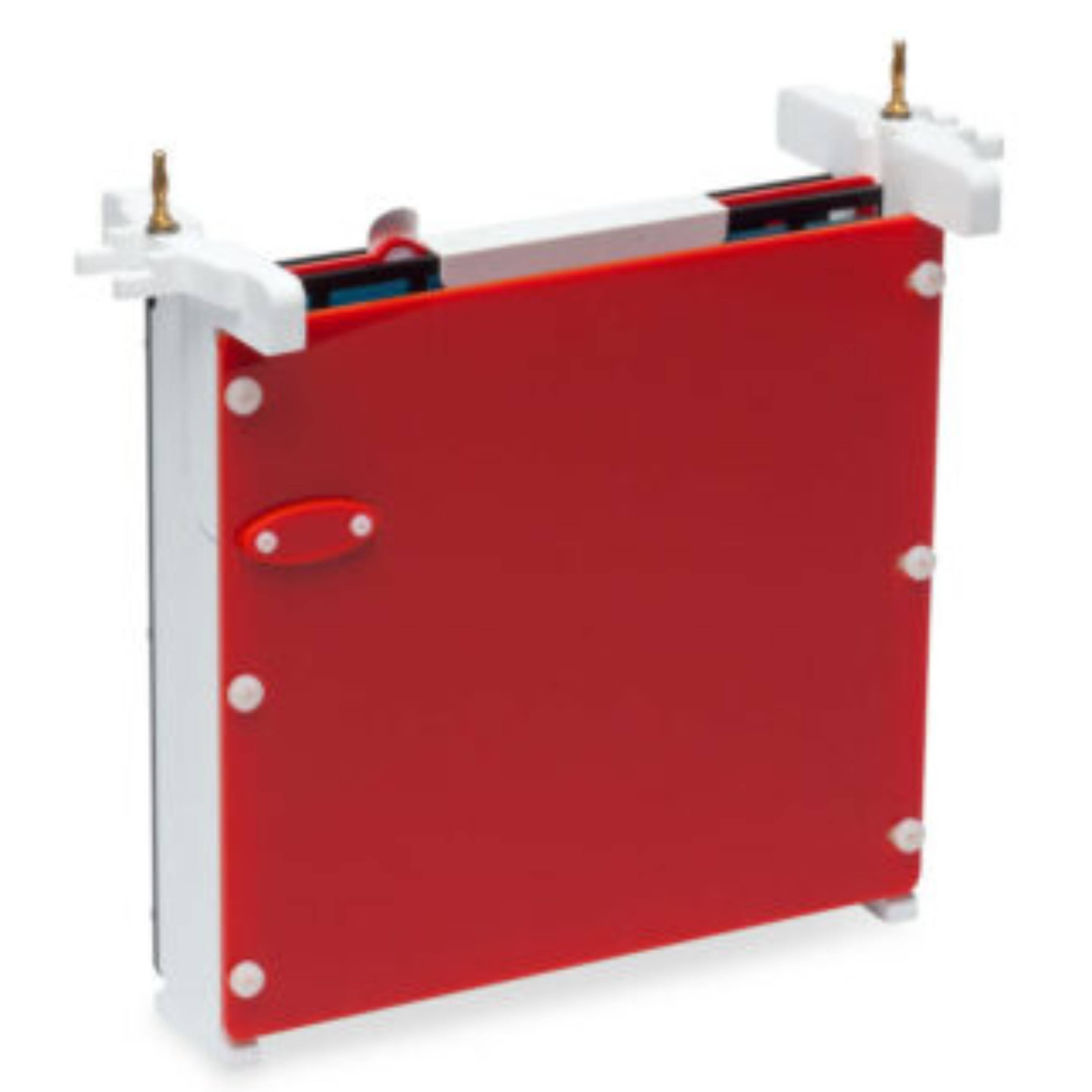

omniBLOT Maxi High Intensity Insert

Replacement High Intensity Insert for omniBLOT Maxi. For gel sizes up to 20x20cm. Includes1x casette, 6x fiber pads.

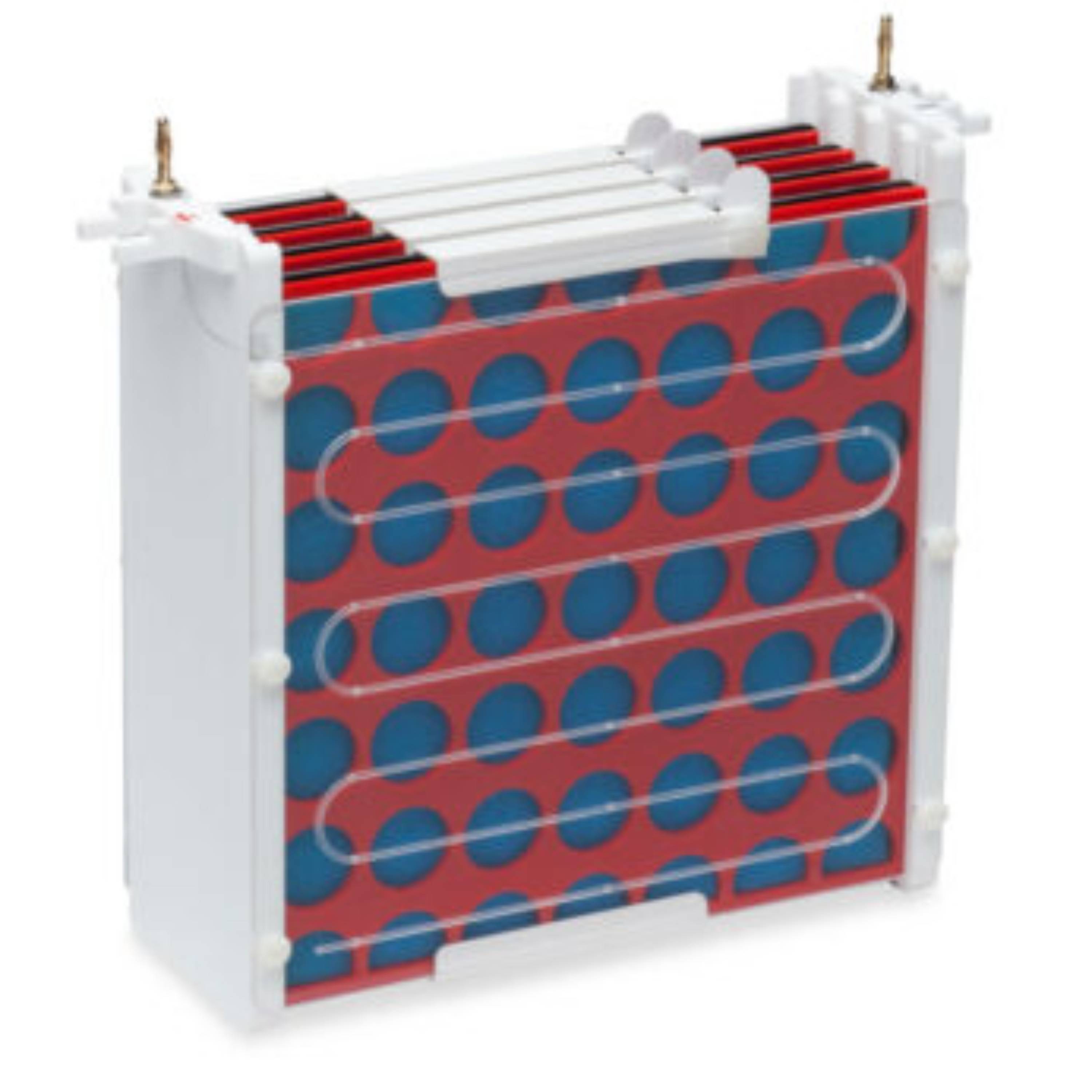

omniBLOT Maxi Insert

Replacement insert for omniBLOT Maxi. For gel sizes up to 20x20cm. Including4x cassettes, 18x foam pads.

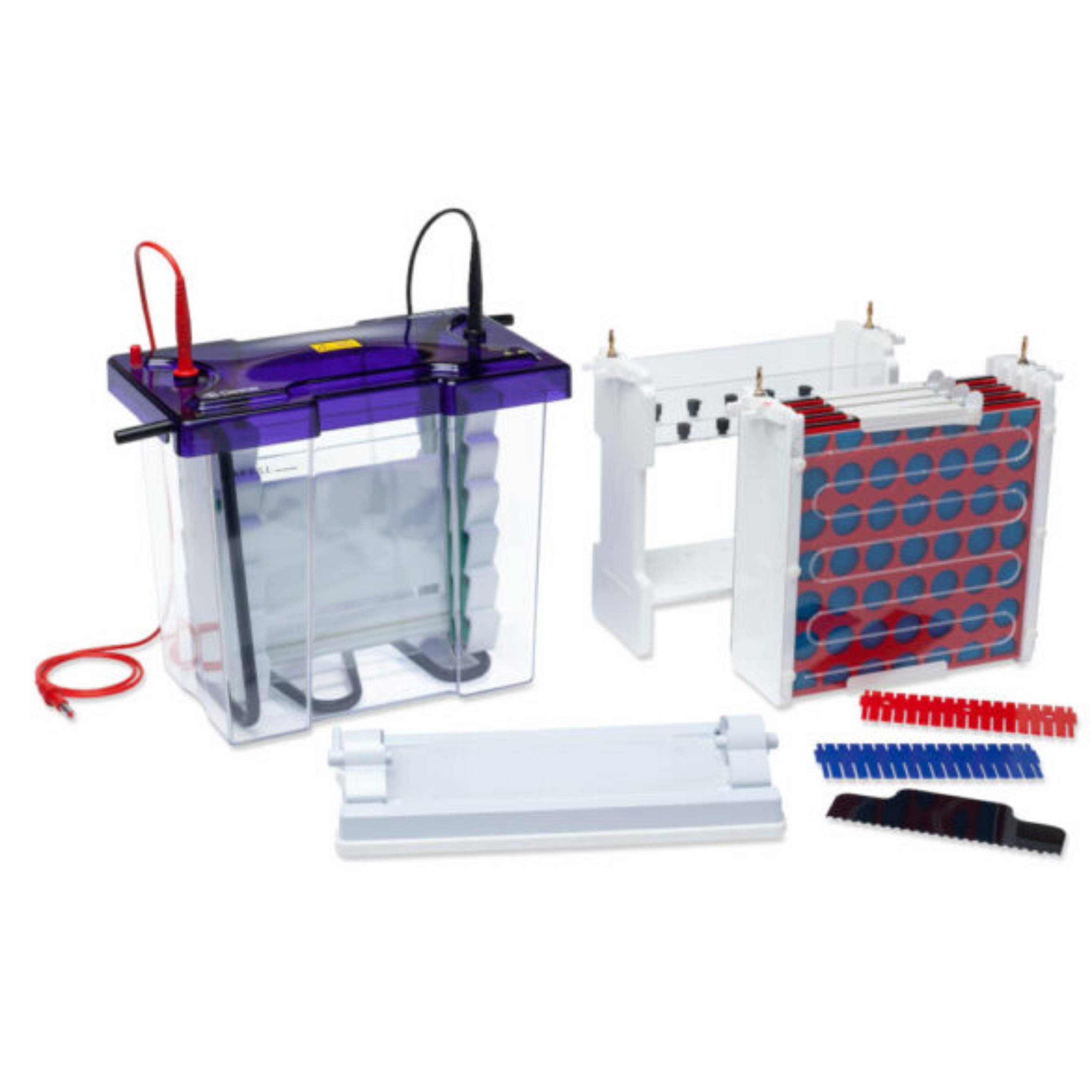

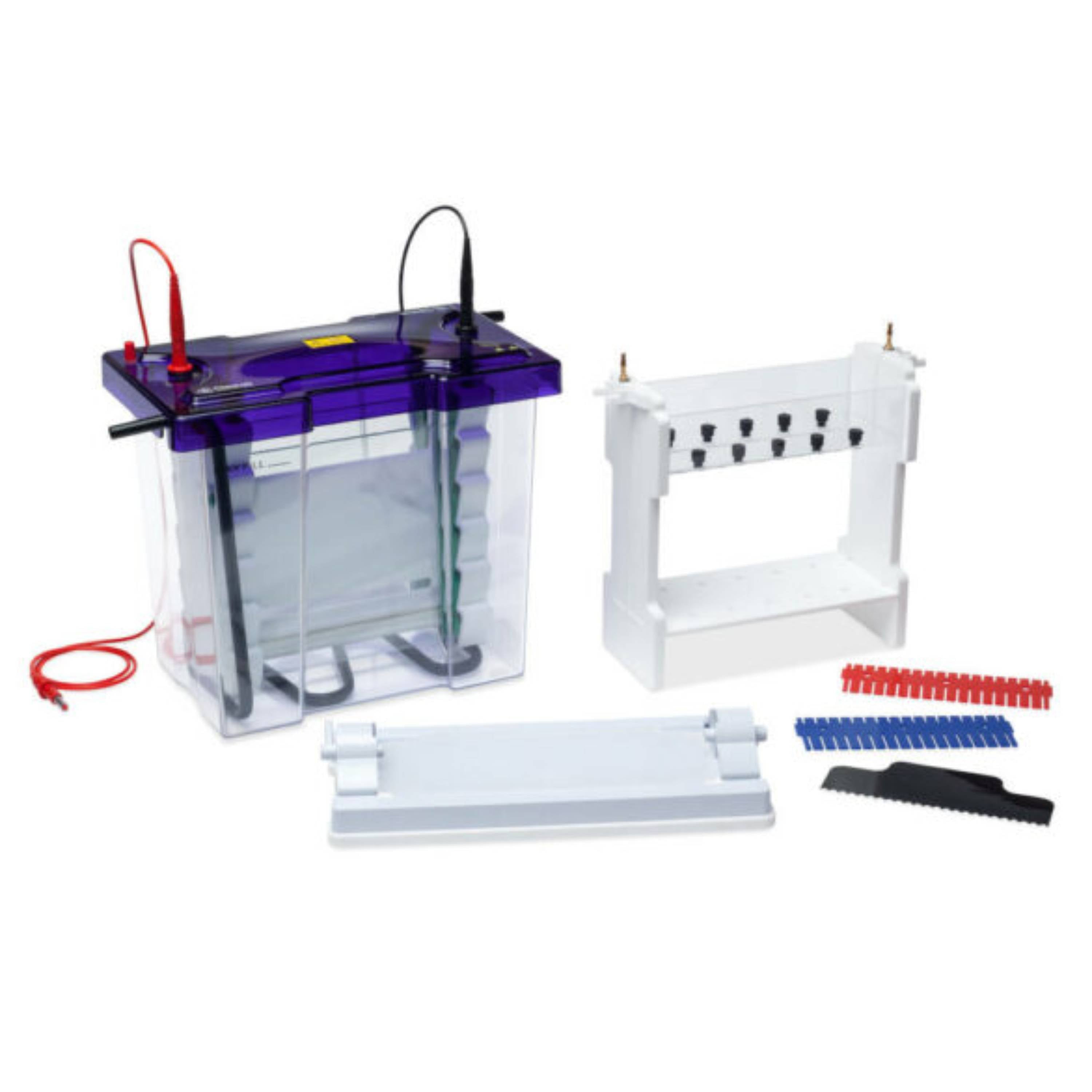

omniPAGE WAVE Maxi Tube Unit

These stand-alone, complete units for first dimension capillary/tube gel electrophoresis, Mini 10x10cm, Mini Wide 20x10cm and Maxi 20x20cm formats, include omniPAGE tank and lid, tube gel insert, tubes and blanking ports. Units are interchangeable with omniPAGE slab gel and electroblotting inserts.

These stand-alone, complete units for first dimension capillary/tube gel electrophoresis include omniPAGE tank and lid, tube gel insert, tubes and blanking ports.

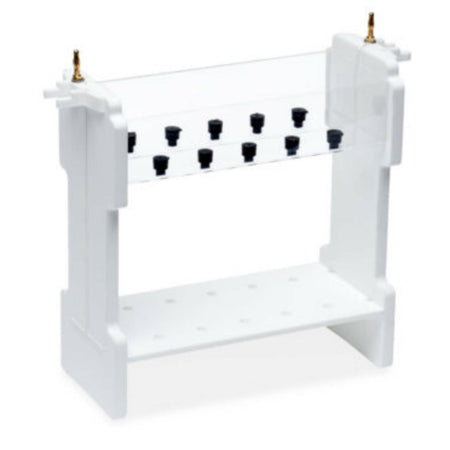

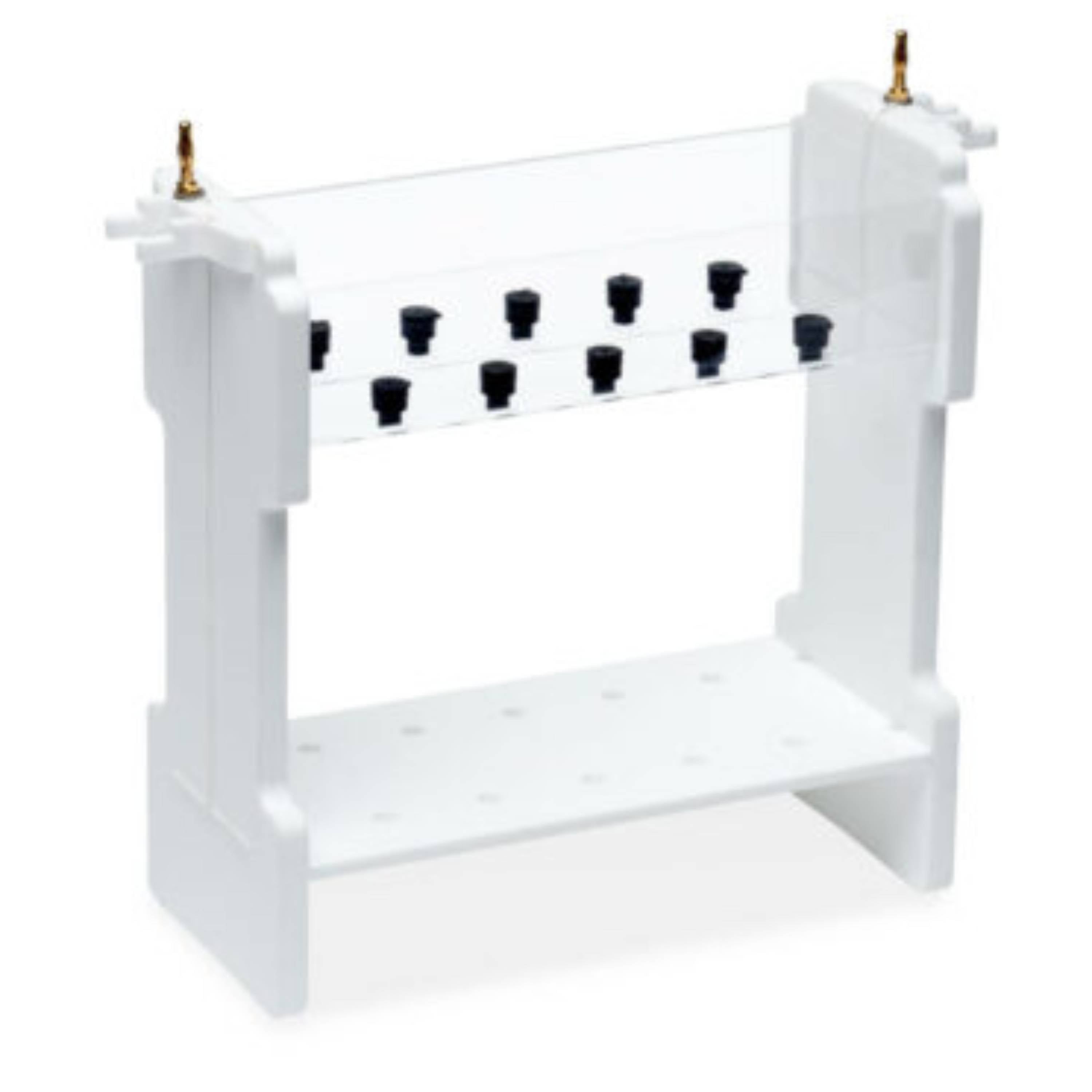

omniPAGE WAVE Maxi Tube Gel Insert

The VS20 WAVE 2-D tube gel system provides all necessary components for 2-D electrophoresis using capillary ampholyte tube gels:

• Interchangeable modular inserts run capillary tube gels for first-dimension IEF and vertical slab gels for second-dimension SDS-PAGE using the same universal tank and lid
• Detachable cooling coil, which connects to the laboratory water supply or a recirculating chiller, enables application of high voltages to achieve precise, high-resolution focusing for pI determination
• Focus up to 10 first-dimension IEF tube gels within a single run using the dedicated 2-D insert, or use included blanking ports to run fewer gels if preferred
• Run up to four 20x20cm second-dimension slab gels using specially adapted notched glass plates with bonded 2-D spacers to accommodate 18cm tube gels
• System may also be used for 18cm IPG strips resolved in the first-dimension on the CSL-IEF flat-bed IEF system
• Two 24-sample 1mm combs included for routine SDS-PAGE techniques

Package includes:

• WAVE Maxi Tube Gel insert

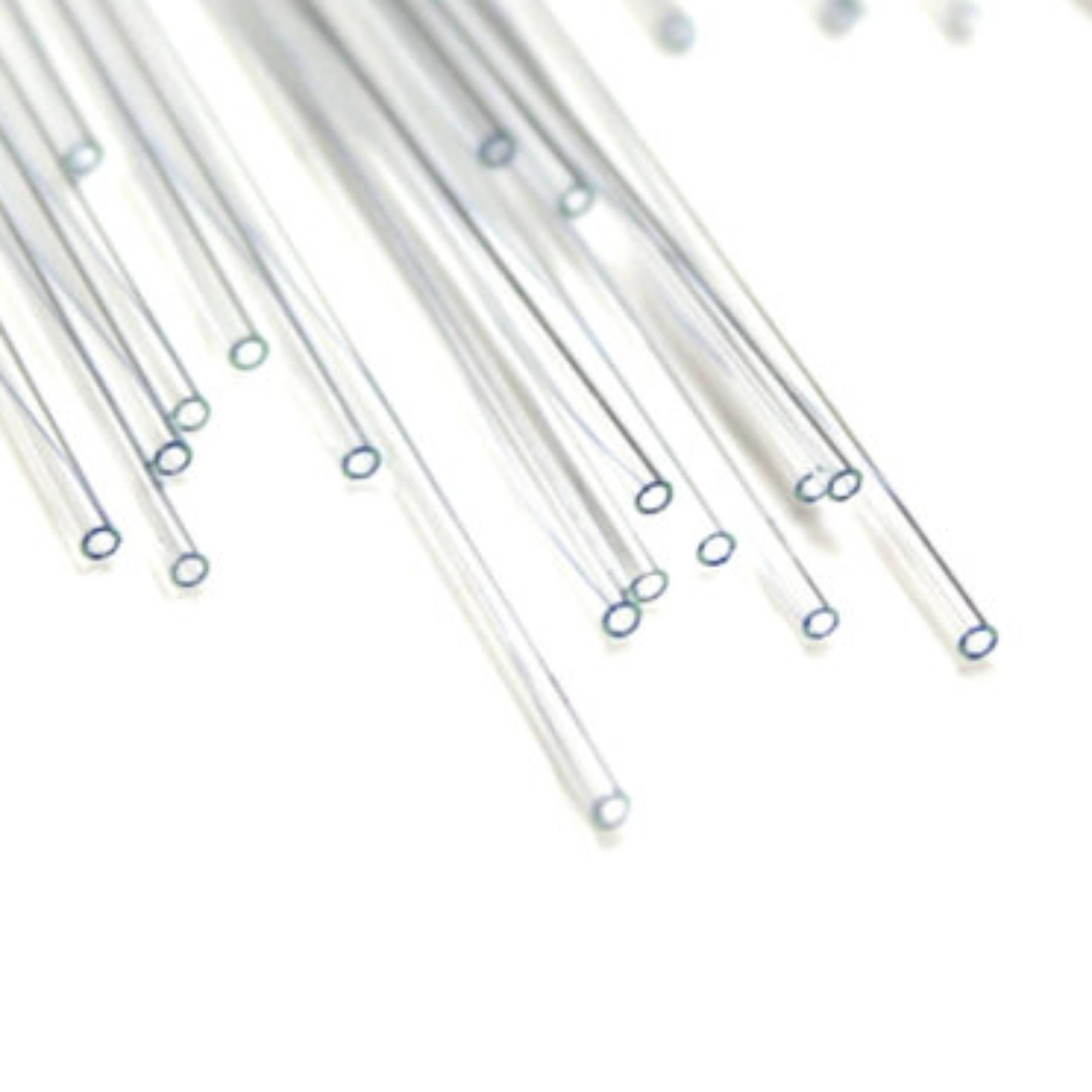

• Glass tubes
• Blanking ports
• IEF Conversion Kit for 18cm IPG strips and tube gels,
  includes: 1 set of plain glass plates with bonded spacers, 0.6x20cm (w x h); and 2x 2-D combs with one 3.5mm marker lane and one 18cm preparatory well


omniPAGE WAVE Maxi – IEF Notched Glass Plates

Instructions

• VS20 VS10W MANUAL(PDF)

Product Flyers

• Cleaver Scientific catalog page 38(PDF)
• Cleaver Scientific catalog page 40(PDF)
• OMNIPAGE.WEB(PDF)

MSE Supplies is an authorized supplier of Cleaver Scientific (Thistle Scientific) products. Please contact us if you need more information regarding Cleaver Scientific products and equipment.
