Cleaver Scientific omniPAGE Mini Vertical Electrophoresis System
Cleaver Scientific Mini Vertical systems are predominantly used for protein electrophoresis.

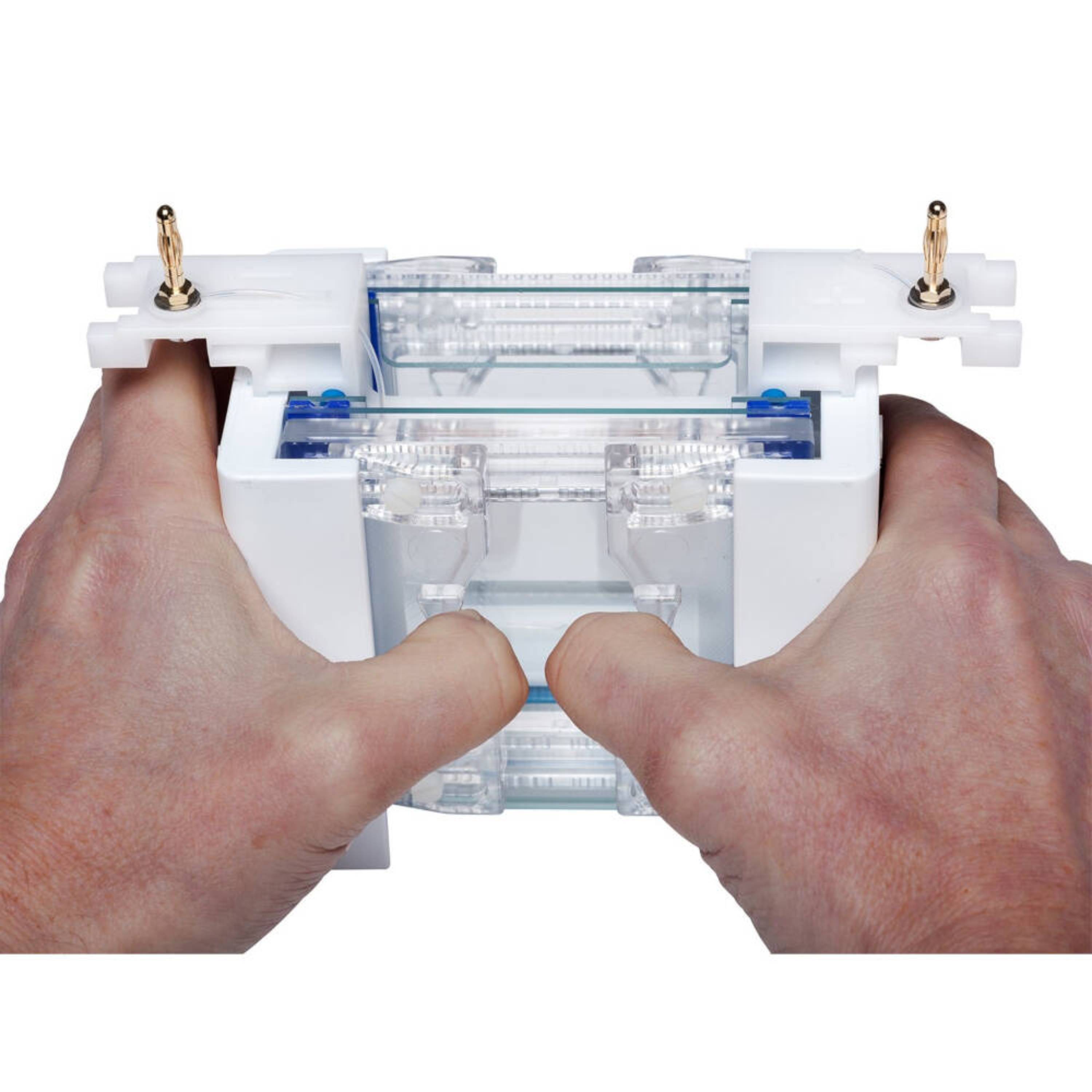

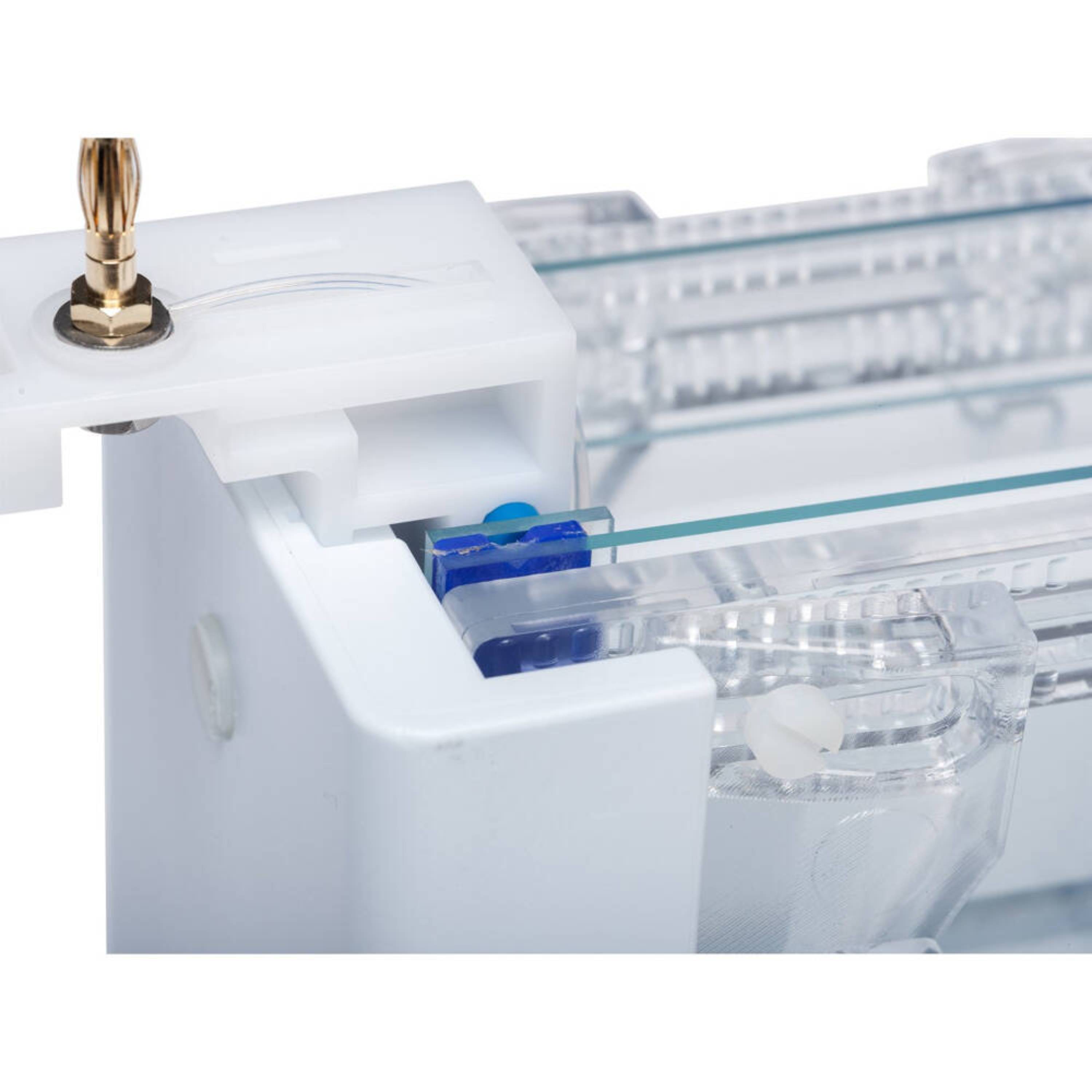

By combining both functionality and ease of use, the omniPAGE systems set the bench mark for simple, versatile vertical mini gel electrophoresis. Each omniPAGE electrophoresis system can accommodate up to 4 handcast gels (additional plates required) or 2 commercial precast gels to provide complete flexibility for individual research needs, while unique sliding clamp technology within the PAGE insert facilitates fast, intuitive leak-free casting.
With a trouble-free set up and consistent performance, the omniPAGE Mini Vertical systems are perfect for today's laboratories, where the ability to generate reproducible results quickly is essential.
Key Features:
- Run a maximum of 4 gels within an hour
- Perform 2-D and blotting within a day
- Undertake discovery projects
- Screen new samples and evaluate sample preparation conditions
Specifications:
|
SKU |
CVS10D |
CVS10DSYS |
CVS10DSYS-CU |
CVS10PRE |
|
Unit Dimensions (cm) |
19 x 13 x 15 |
|||
|
Weight (Kg) |
1.8 |
|||
|
Capacity |
1 - 4 Gels |
1 - 4 Gels |
1 - 4 Gels |
1 - 4 Gels |
|
Maximum Sample Capacity |
80 |
|||
|
Base Buffer Volume |
250 |
|||
|
Typical Running Conditions |
1-2 hours at 90-225V |
|||
|
Gel Dimensions |
8 x 8.5 |
|||
|
Maximum Buffer Volume (ml) |
1200 |
|||
|
Includes Casting Base |
FALSE |
TRUE |
FALSE |
|
|
Blotting Insert (optional) |
VS10BI |
|||
|
2D Insert (optional) |
VS10DCI |
|||
|
Includes Additional Caster |
FALSE |
TRUE |
FALSE |
|
|
Plate Dimensions |
10 x 10 x 0.2 |
|||
This product include the following:
Instructions
Product Flyers
MSE Supplies is an authorized supplier of Cleaver Scientific (Thistle Scientific) products. Please contact us if you need more information regarding Cleaver Scientific products and equipment.
