BOLA Vacuum Filter Funnels (PTFE/PFA ) - 125 ml
Regular price
$ 1,007.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Vacuum Filter Funnels (PTFE/PFA ) - 125 ml
Product Description

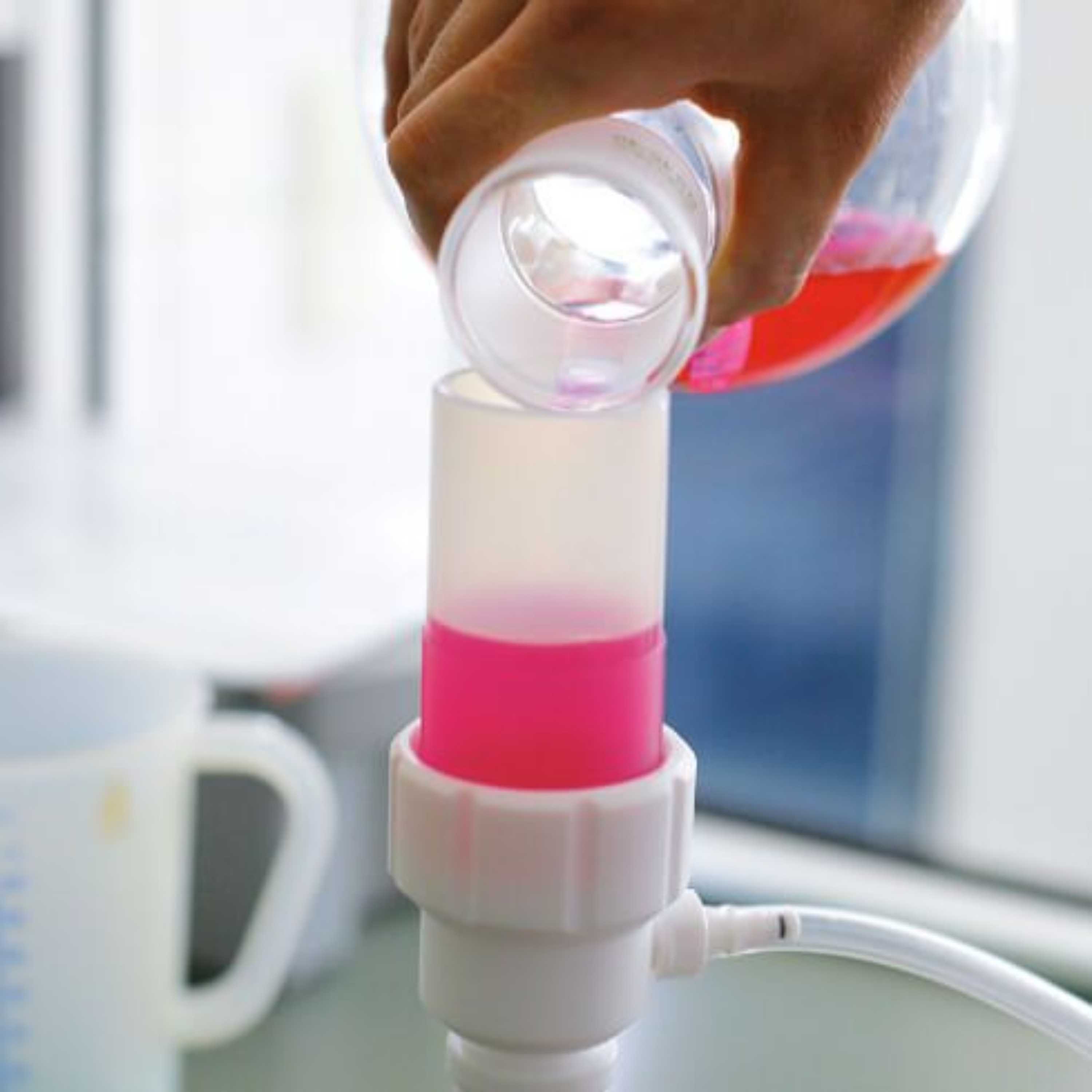

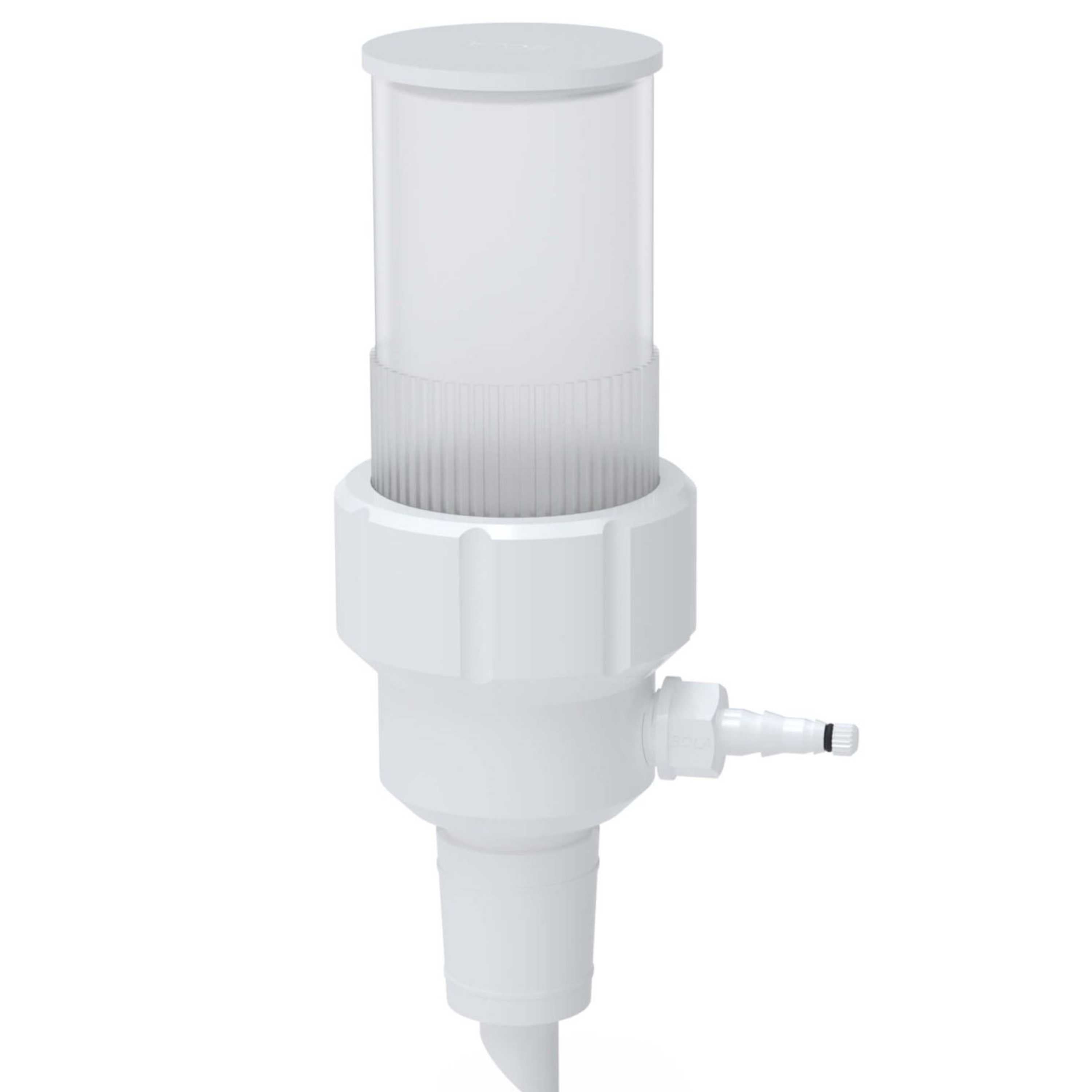

Filtration unit made of PTFE with cone size 29 for connection to a vessel (must be suitable for vacuum) with socket size 29. Multi-stage hose connector with integrated lock screw for vacuum tubing with I.D. 6 and 8 mm, filtration surface 13,8 cm2 , easily exchangeable filtering membrane dia. 47 mm. Filling vessel made of PFA with PTFE lid for protection against contaminations.
Applications
Flow rate:
Flow capacity under vacuum of 100 kPa (1000 mbar) using a PTFE filtering membrane with a diameter of 47 mm and a thickness of 0,2 mm
-
Pore size 1,00 µm: Flow 500 ml/min
-
Pore size 0,45 µm: Flow 115 ml/min
- Pore size 0,20 µm: Flow 32 ml/min
Specifications:
| Model | N1658-08 |
| Chemical resistance | +++ universal |
| Material | PFA, PTFE |
| Temperature resistance | from -200°C to +250°C |
|
Transparency |
transparent |
|
Autoclave |
121° |
|
Capacity of filling vessel [ml] |
125 |
| O.D. [mm] | 62 |
| Total height [mm] | 188 |
Downloadable links:
Technical information
Material Safety Data Sheets
