BOLA Tubing (FEP ) - Ø 6,35 (1/4") x Ø 9,52 mm(3/8")
Regular price
$ 102.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Tubing (FEP) - Ø 6,35 (1/4") x Ø 9,52 mm(3/8")
Product Description

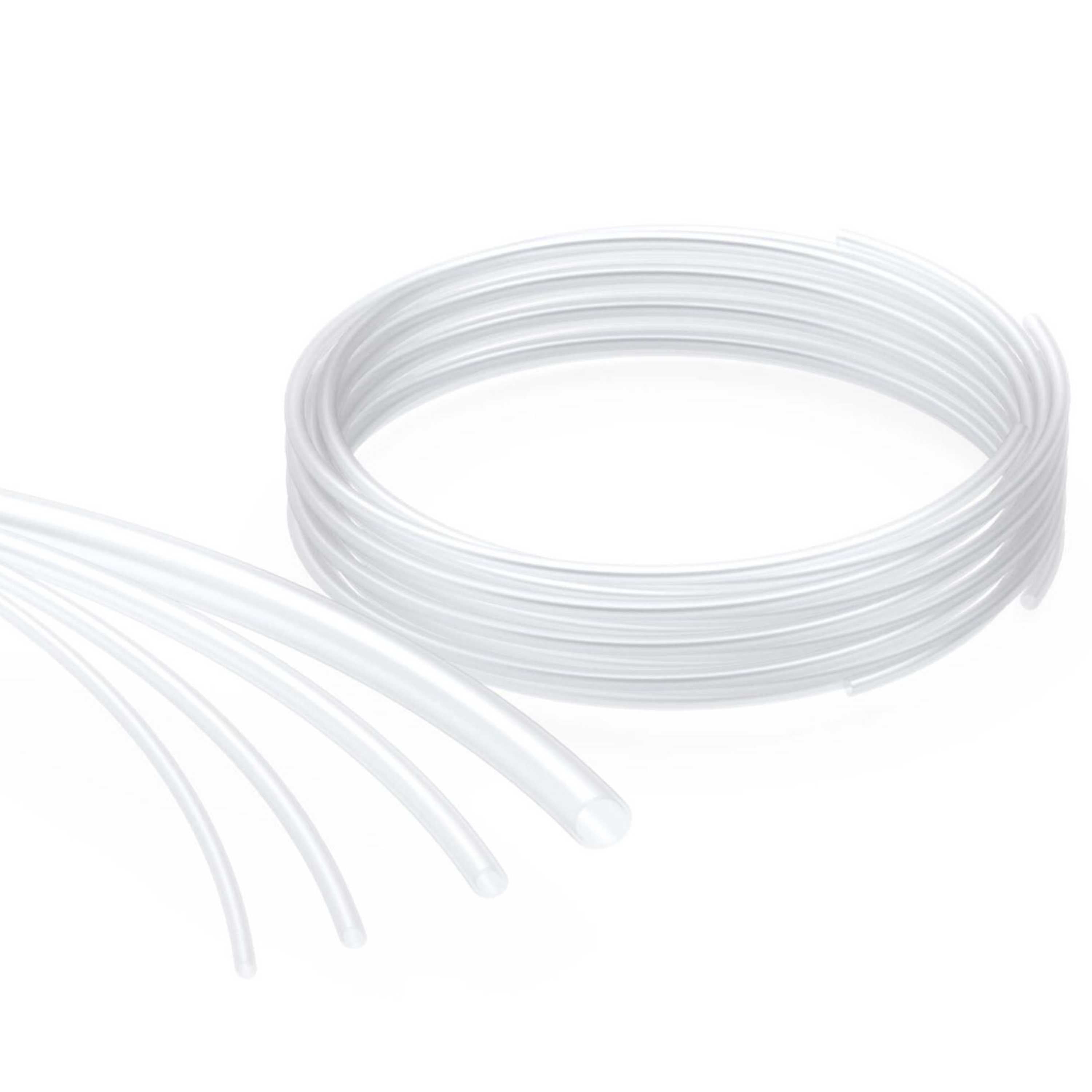

Transparent, gastight tubing.
Product advantages
- Non-porous
- Almost universal chemical resistance
- Free from extractable agents
- Physiologically safe
- Non-adhesive surface
- Very good sliding characteristics
- Very good dielectric characteristics
- Flame retardant according to UL94V0
- Oxygen value more than 95
- Resistant to irradiation and weather
- Can be sterilized in autoclaves
Applications
Perfect tubing for aggressive and pure liquids or gases.
(1) Bending radius: minimum bending radius in mm at a room temperature of 23°C
(2) Burst pressure: computed value in bar at a room temperature of 23°C. It is recommended to restrict the maximum working pressure to 25% of the burst pressure. For higher temperatures, this value has to be multiplied by a reduction factor. It is the user’s responsibility to check if the used tubing fulfills the respective requirements.
Specifications:
| Model | S1815-40 |
| Chemical resistance | +++ universal |
| Material | FEP |
| Temperature resistance | from -200°C to +205°C |
| Transparency | transparent |
| Bending radius (1) [mm] | 58 |
| Burst pressure (2) [bar] | 56 |
| I.D. [mm] | (1/4") - 6,35 |
| O.D. [mm] | (3/8") - 9,52 |
| Wall thickness [mm] | 1,59 |
Downloadable links:
Technical information
Material Safety Data Sheets
