BOLA Transition Fittings (PTFE/PTFE-GF ) - Ø 0,8x1,6(UNF1/4"-28G)-8 u.10mm
Product Description

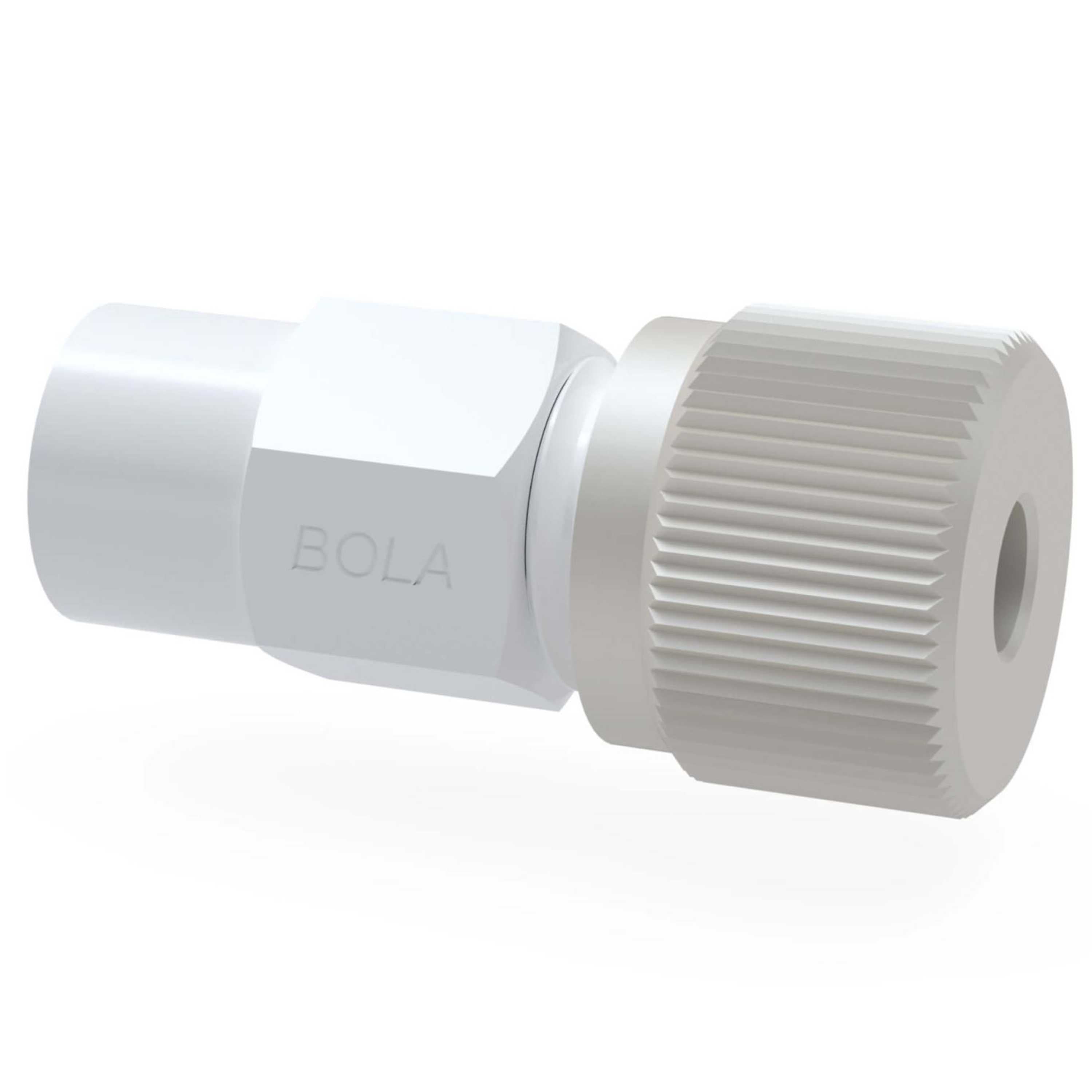

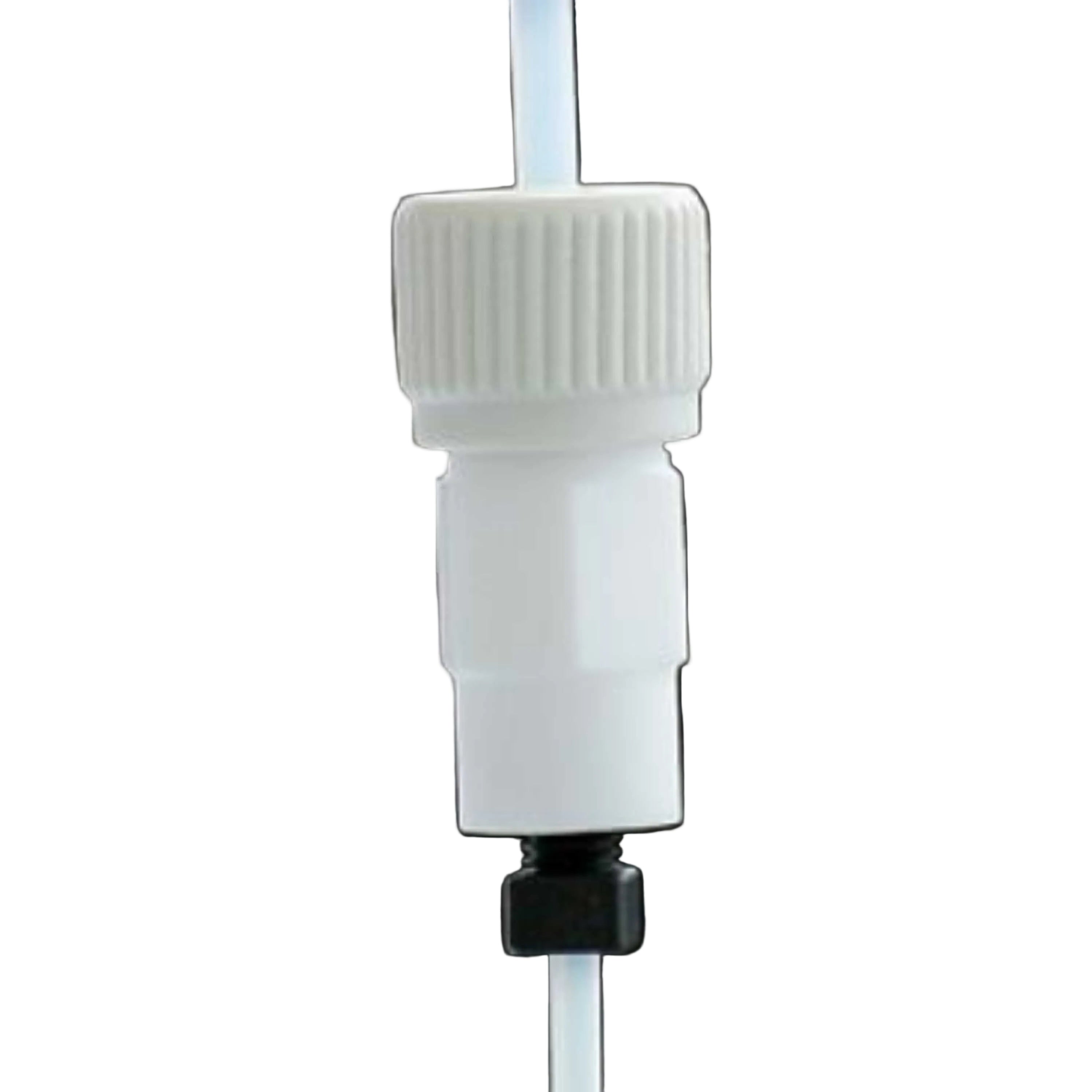

Fitting made of PTFE. One side with metric thread and connecting nut with compression rings for connecting tubing or tubes with O.D. 4, 6, 8 or 10 mm. Other side with female thread UNF ¼” 28 G for connecting flanged tubing with O.D. 1,6 or 3,2 mm by means of tube end fittings.
Specifications:
| Model | F760-14 |
| Chemical resistance | +++ universal |
| Material | PTFE |
|
Pressure |
5 bar |
|
Temperature resistance |
from -200°C to +250°C |
| From tubing O.D. [mm] | (1/32" x 1/16") - 0,8 x 1,6 |
| O.D. [mm] | 26 |
| Total length [mm] | 46 |
| To tubing O.D. [mm] | 8 + 10 |
