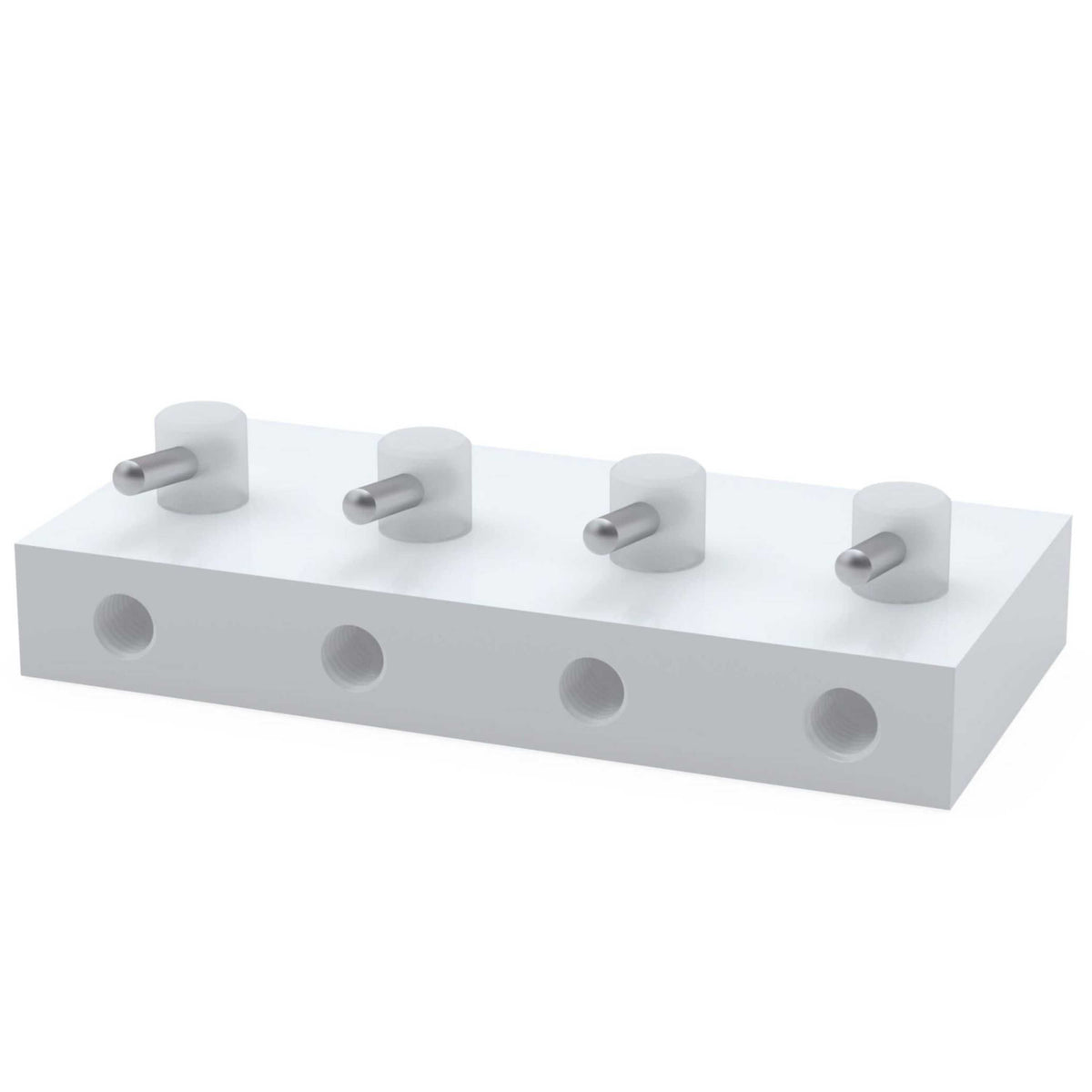

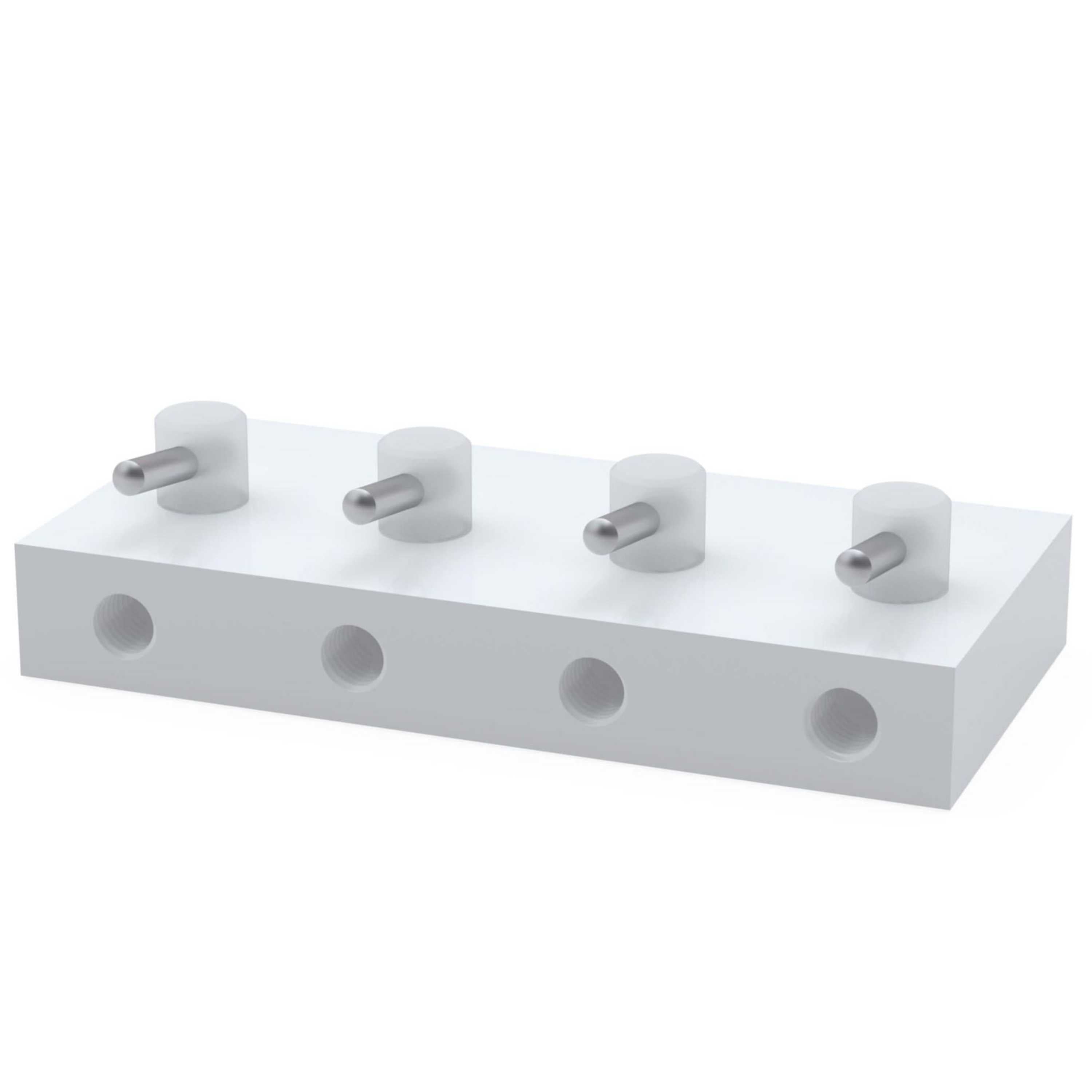

BOLA Miniature Manifold Blocks (PTFE ) - UNF 1/4" 28G, Ø 0,8 x 1,6 mm
Regular price
$ 508.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Miniature Manifold Blocks (PTFE ) - UNF 1/4" 28G, Ø 0,8 x 1,6 mm
Product Description
Block made of PTFE with one inlet and four outlets with female thread UNF ¼” 28 G. Also available with four stopcocks with stopcock plugs made of FEP for easy interruption and control of flow.
Specifications:
| Model | F712-10 |
| Chemical resistance | +++ universal |
| Material | PTFE, FEP |
|
Pressure |
8 bar |
|
Temperature resistance |
from -200°C to +205°C |
| Bore dia. [mm] | 0,8 |
| For tubing I.D. x O.D. [mm] | (1/32" x 1/16") - 0,8 x 1,6 |
| Inlet |
1 |
| Number of stopcocks | 4 |
| Outlet | 4 |
Downloadable links:
Technical information
Material Safety Data Sheets
