BOLA Miniature Distributors (PTFE ) - UNF 1/4" 28G, Ø 0,8 x 1,6 mm
Regular price
$ 170.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Miniature Distributors (PTFE ) - UNF 1/4" 28G, Ø 0,8 x 1,6 mm
Product Description

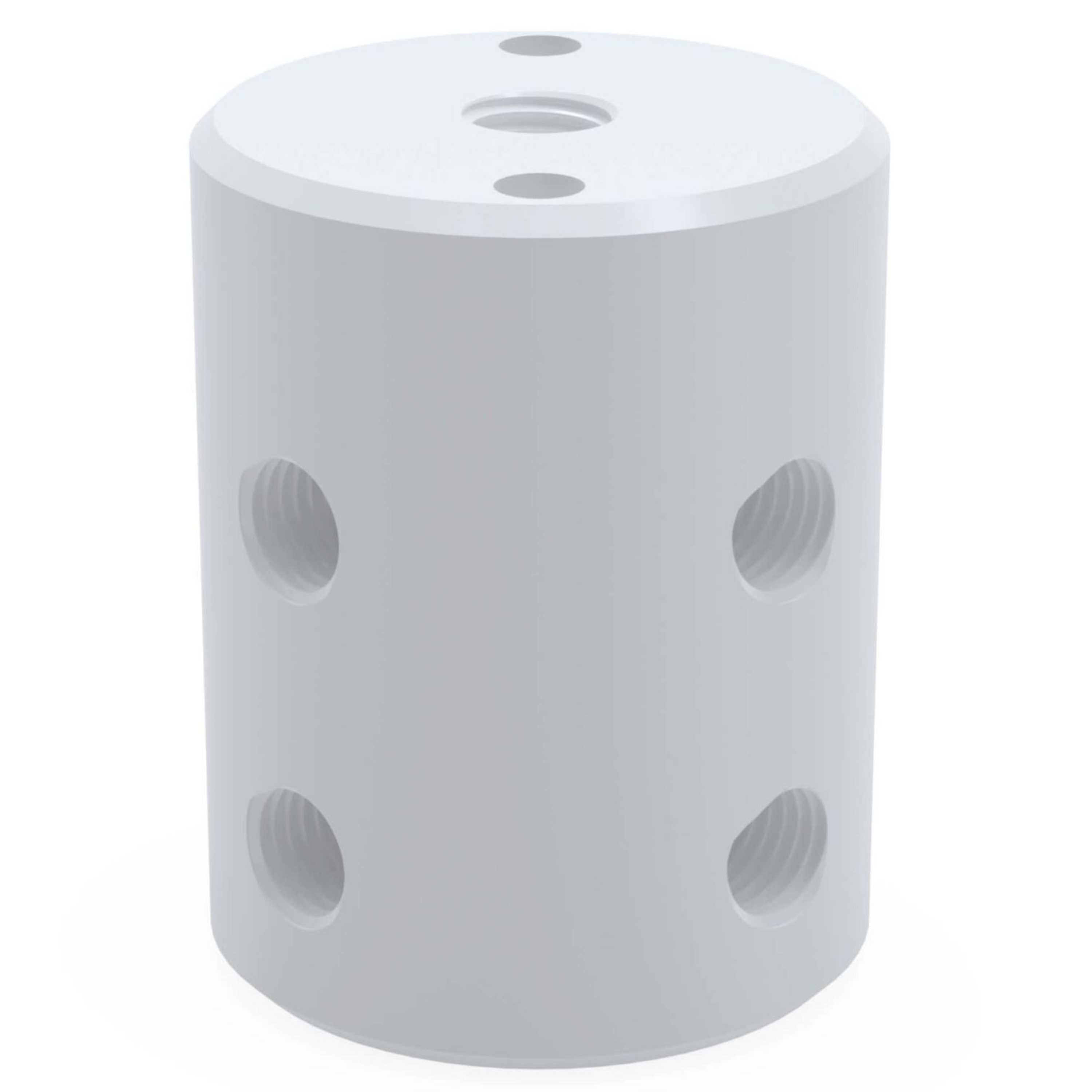

Blocks with up to nine connections. The tubing is connected by means of tube end fittings to a female thread UNF ¼” 28 G. With two mounting holes dia. 3,5 mm for fixing.
Specifications:
| Model | F710-09 |
| Chemical resistance | +++ universal |
|
Material |
PTFE |
|
Pressure |
30 bar |
| Temperature resistance | from -200°C to +250°C |
| Connections | 9 |
| For tubing I.D. x O.D. [mm] | (1/32" x 1/16") - 0,8 x 1,6 |
| Height [mm] | 36 |
| O.D. [mm] | 28 |
Downloadable links:
Technical information
Material Safety Data Sheets
