BOLA Miniature 3-Way Stopcocks (PTFE ) - UNF 1/4" 28G, Ø 0,8 x 1,6 mm
Product Description

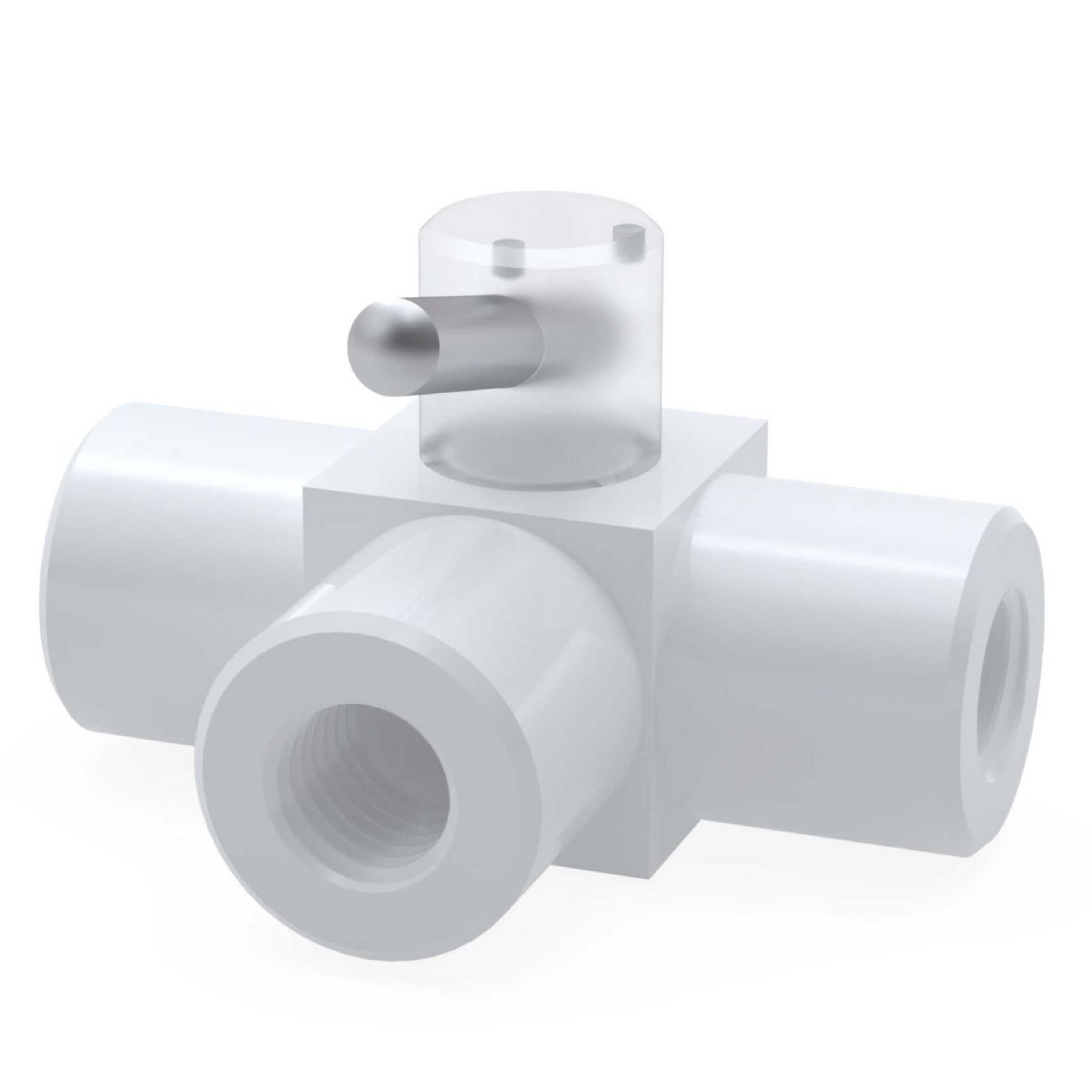

3-way stopcock with “L”-shaped or “T”-shaped bore and three connections. Available either with three female threads UNF ¼” 28 G or with two female threads UNF ¼” 28 G and one male thread UNF ¼” 28 G. Total height including stopcock plug made of FEP: 20 mm.
Specifications:
| Model | F731-02 |
| Chemical resistance | +++ universal |
|
Material |
PTFE, FEP |
|
Pressure |
8 bar |
| Temperature resistance | from -200°C to +205°C |
| Bore shape [of stopcock] | L |
| Connections [female thread] | 3 |
| Connections [male thread] (2) | - |
| For tubing I.D. x O.D. [mm] | (1/32" x 1/16") - 0,8 x 1,6 |
| Total length [mm] | 32 |
