BOLA Miniature 2-Way Stopcocks (PTFE ) - UNF 1/4" 28G, Ø 0,8 x 1,6 mm
Regular price
$ 251.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Miniature 2-Way Stopcocks (PTFE ) - UNF 1/4" 28G, Ø 0,8 x 1,6 mm
Product Description

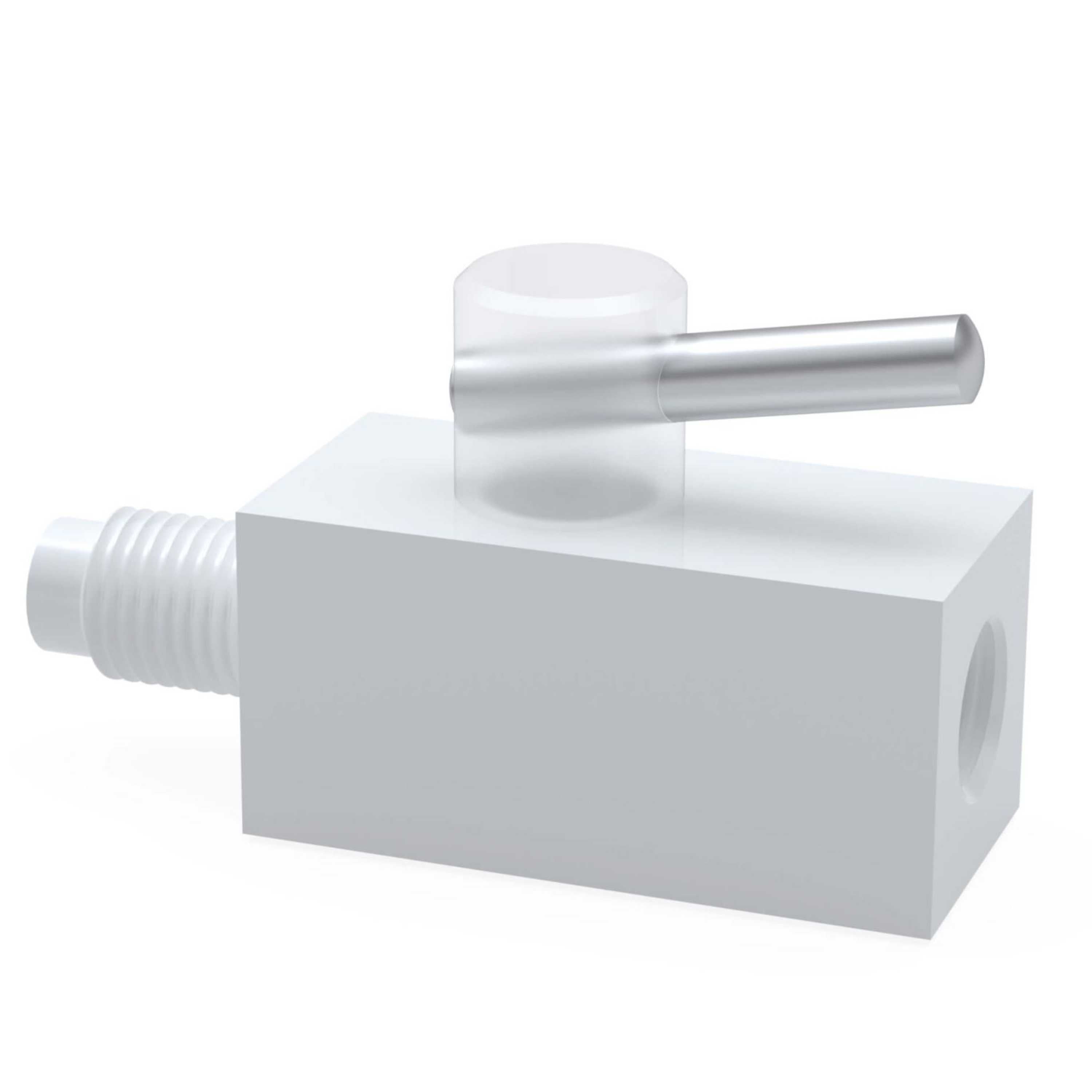

2-way stopcock with straight bore and two connections. Available either with two female threads UNF ¼” 28 G or with one female thread UNF ¼” 28 G and one male thread UNF ¼” 28 G. Total height including stopcock plug made of FEP: 20 mm.
Specifications:
| Model | F730-06 |
| Chemical resistance | +++ universal |
| Material | PTFE, FEP |
|
Pressure |
8 bar |
|
Temperature resistance |
from -200°C to +205°C |
| Connections [female thread] | 1 |
| Connections [male thread] (2) | 1 |
| For tubing I.D. x O.D. [mm] | (1/32" x 1/8") - 0,8 x 1,6 |
| Total length [mm] | 35 |
