BOLA GL Transition Fittings (PTFE ) - Ø 1,6 x 3,2 mm
Regular price
$ 97.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA GL Transition Fittings (PTFE ) - Ø 1,6 x 3,2 mm
Product Description

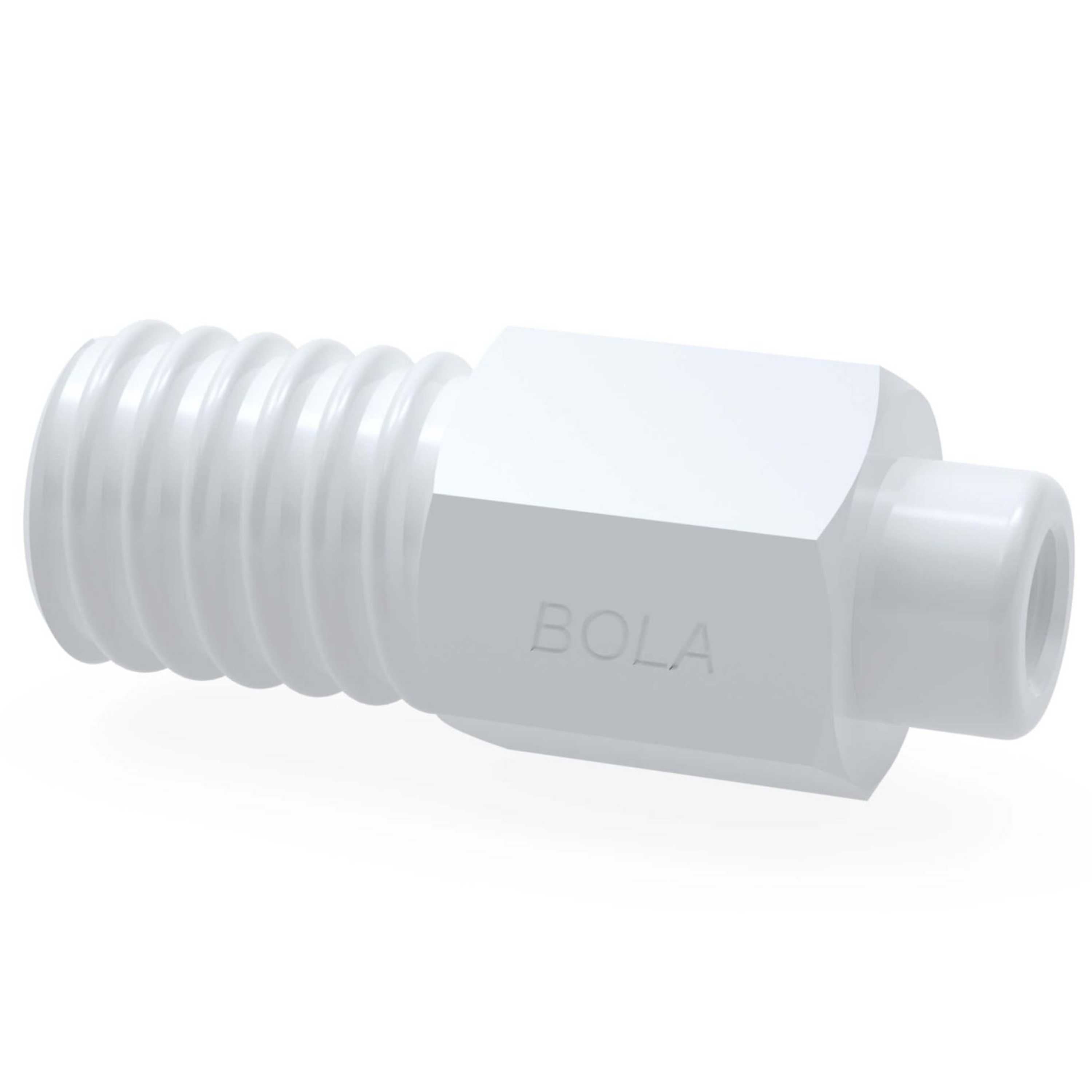

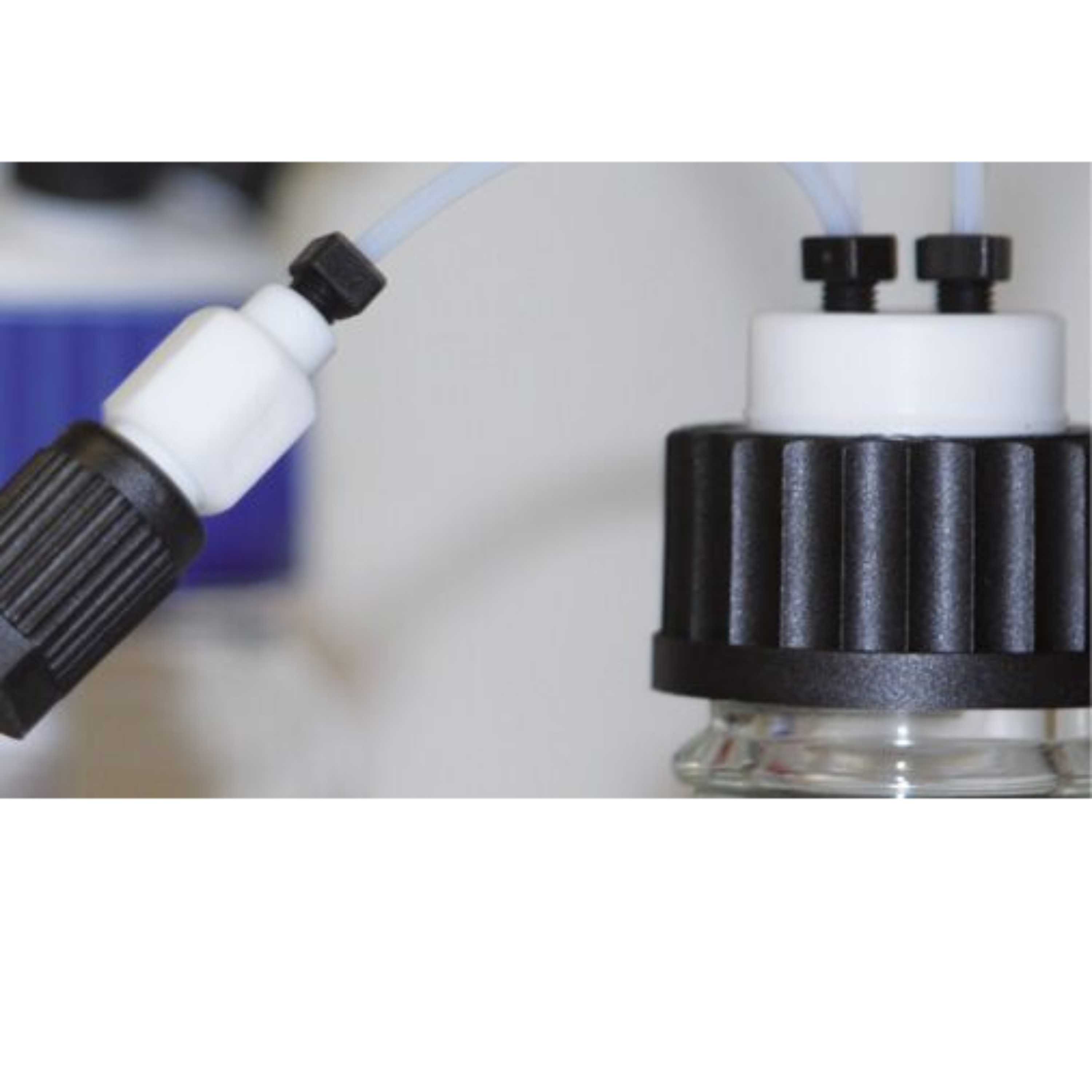

Fitting made of PTFE. One side with thread GL 14 for connecting hard-walled tubing and tubes by means of BOLA Laboratory Screw Joints. Other side with female thread UNF 1/4" 28G for connecting flanged tubing with O. D. 1,6 and 3,2 mm by means of tube end fittings.
Specifications:
| Model | F761-16 |
| Chemical resistance | +++ universal |
| Material | PTFE |
|
Temperature resistance |
from -200°C to +250°C |
| Bore dia. [mm] | 1,6 |
| Female thread [UNF] | 1/4" 28G |
| For tubing I.D. x O.D. [mm] | 1,6 x 3,2 |
| Thread of fitting [GL] | 14 |
| Total length [mm] | 39 |
Downloadable links:
Technical information
Material Safety Data Sheets
