BOLA GL 3-Way Stopcocks EX (PTFE-EX ) - GL 25, Ø 6,0 mm
Product Description

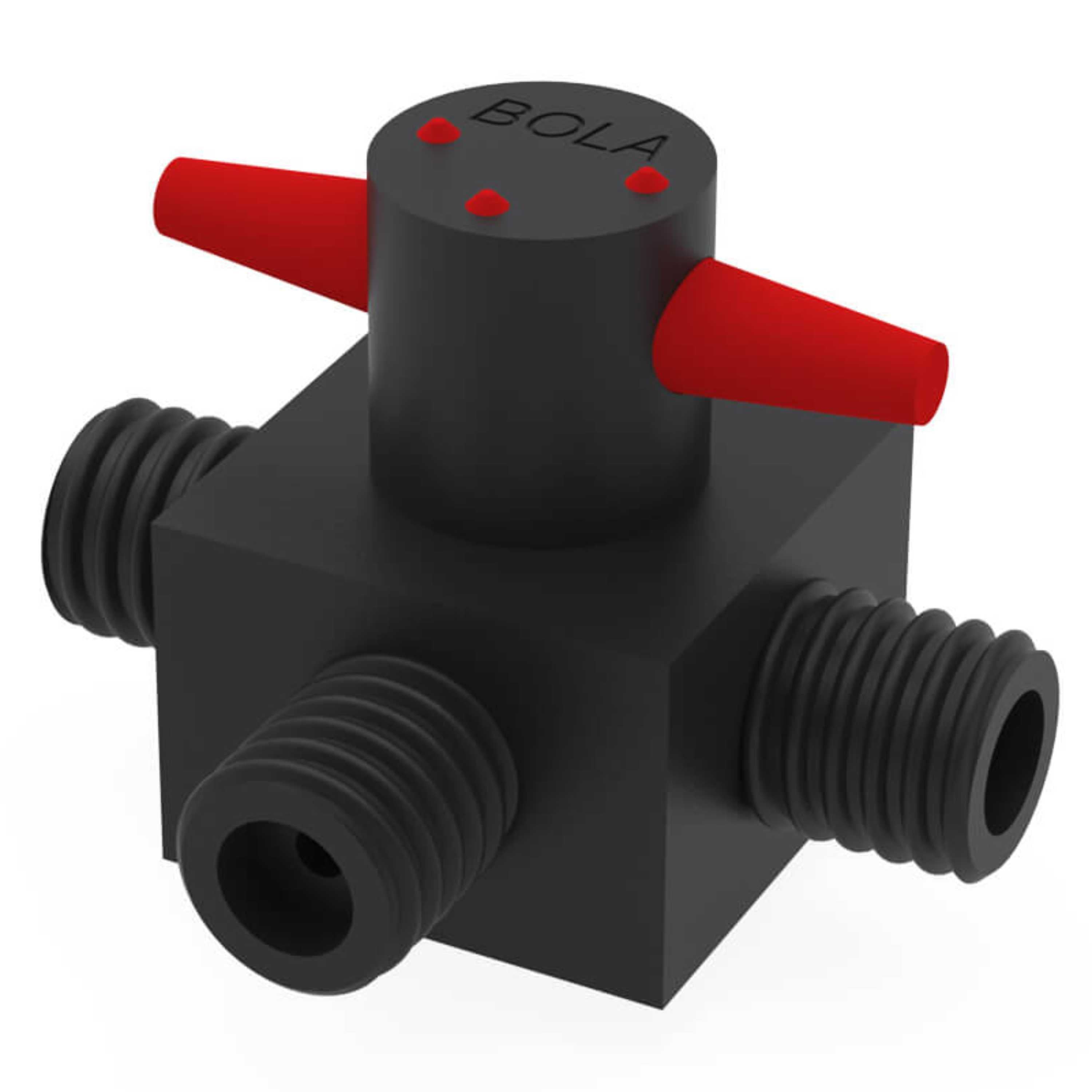

Two-way stopcock made of conductive PTFE-EX with straight bore and two connections with GL thread or three-way stopcock with L-shaped or T-shaped bore and three connections with GL thread. Cylindrical stopcock plug made of conductive PTFE-EX for good tightness, stop valve with mark of flow direction. Grip made of red PP. Suitable for pressure up to max. 6 bar, suitable for vacuum. Connection of tubing or tube with BOLA Laboratory Screw Joints EX.
Applications
For distributing liquids or gases. Quick and easy disconnection of flow.
Specifications:
| Model | E716-25 |
| Chemical resistance | ++ very good |
| Conductivity | 1.000 kOhm |
|
Material |
PP, PTFE EX |
|
Pressure |
6 bar |
| Temperature resistance | from 0°C to +110°C |
| Vacuum | suitable |
| Bore dia. [mm] | 6 |
| Bore shape [stopcock] | T |
| Connecting thread [GL] | 25 |
| External dimensions [L / D / H mm] | 88 x 69 x 57 |
| Type | 3-Wege / 3-Way |
Downloadable links:
Technical information
Material Safety Data Sheets
