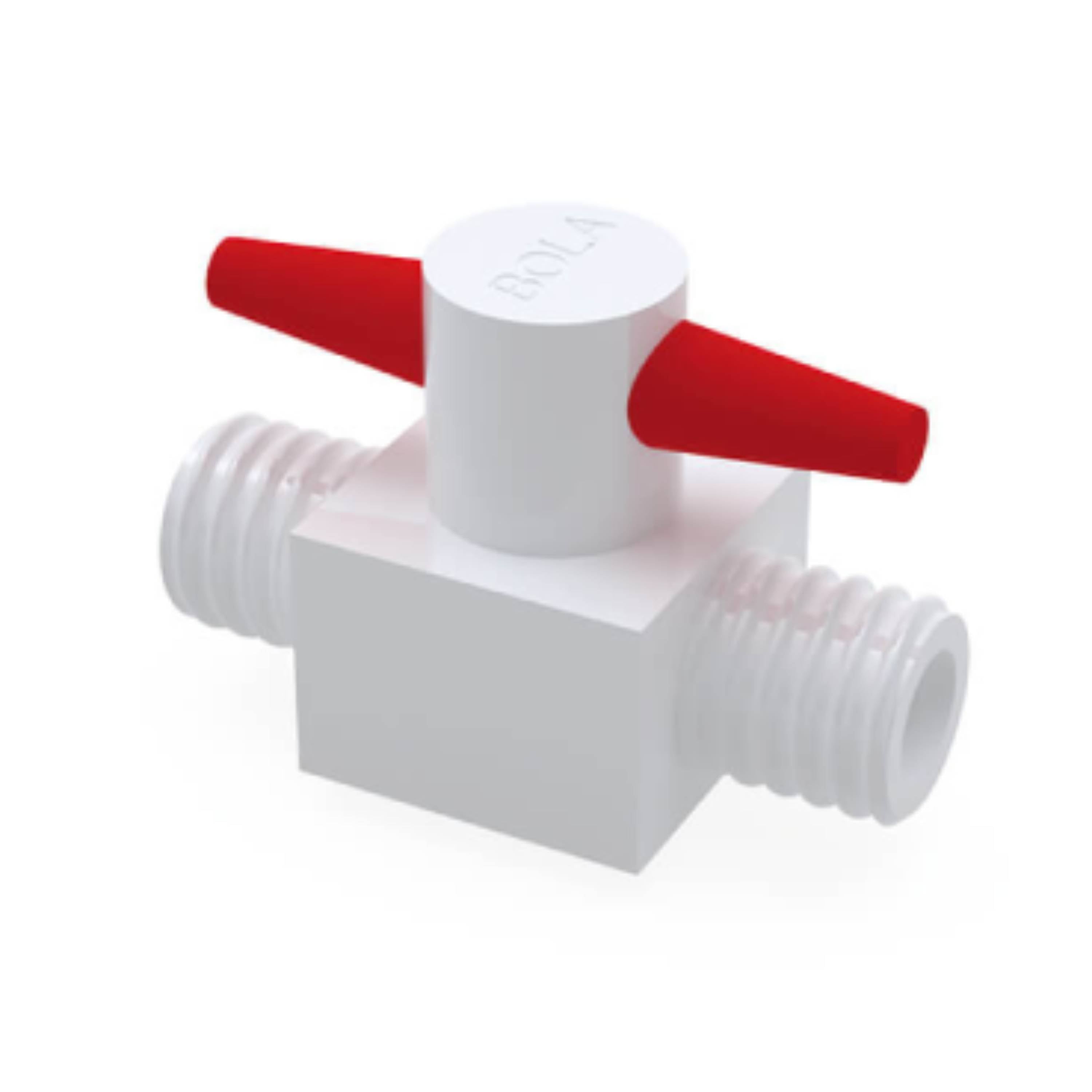

BOLA GL 2-Way Stopcocks (PTFE ) - GL 25, Ø 8 mm
Regular price
$ 223.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA GL 2-Way Stopcocks (PTFE) - GL 25, Ø 8 mm
Product Description
Two-way stopcock with straight bore and two connections with GL thread or three-way stopcock with L-shaped or T-shaped bore and three connections with GL thread. Cylindrical stopcock plug for good tightness, stop valve with mark of flow direction. Suitable for pressure up to max. 6 bar, or for vacuum. Universal chemical resistance, the flowing product is only exposed to PTFE.
Applications
For distributing liquids or gases. Quick and easy disconnection of flow. Connection of tubing or tubes by means of BOLA Laboratory Screw Joints
Specifications:
| Model | E684-25 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Pressure | 6 bar |
| Temperature resistance | from 0°C to +110°C |
| Vacuum | suitable |
| Bore dia. [mm] | 8 |
| Bore shape [stopcock] | I |
| Connecting thread [GL] | 25 |
| External dimensions [L / D / H mm] | 78 x 40 x 57 |
|
Type |
2-Wege/2-way |
Downloadable links:
Technical information
Material Safety Data Sheets
