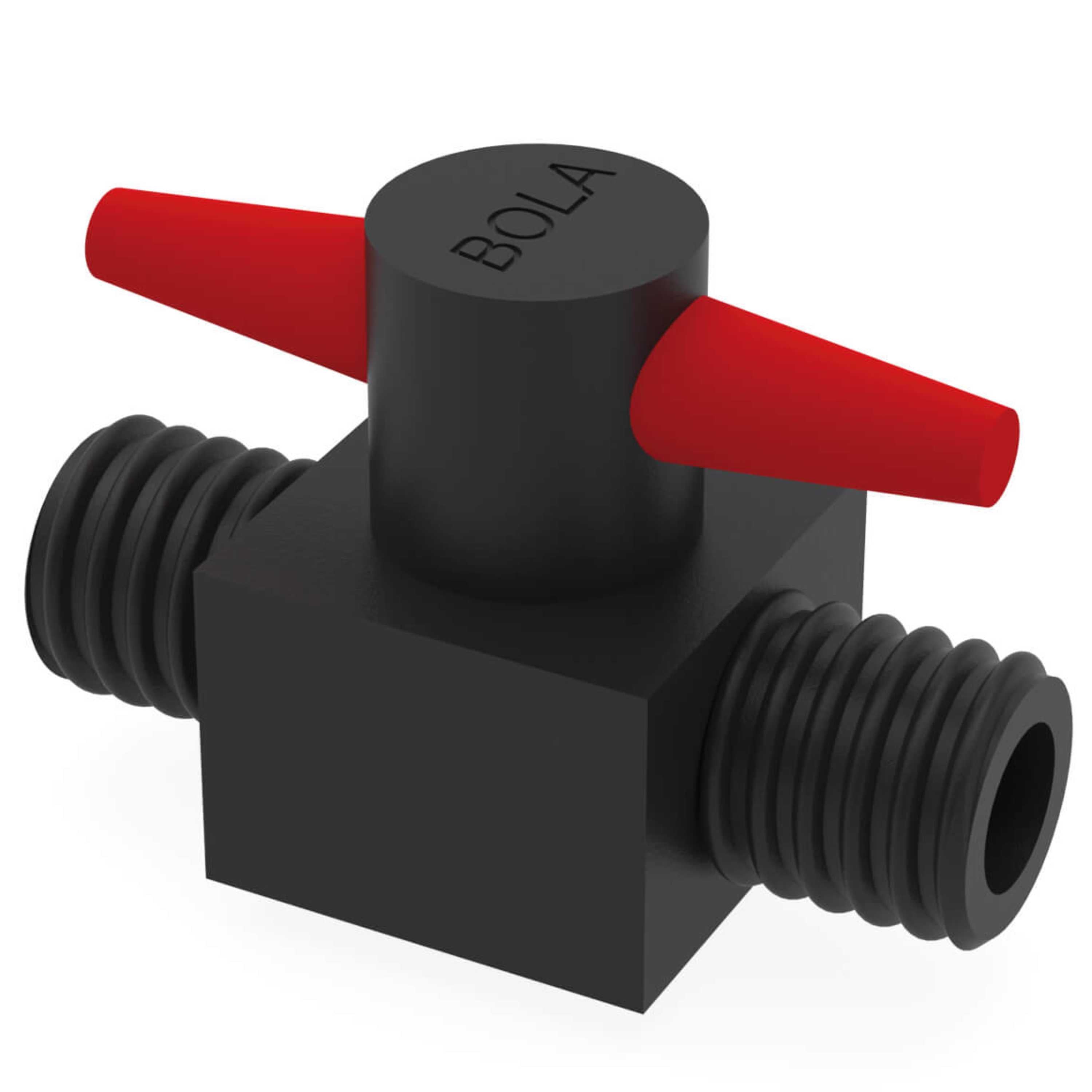

BOLA GL 2-Way Stopcocks EX (PTFE-EX ) - GL 14, Ø 4,0 mm
Regular price
$ 180.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA GL 2-Way Stopcocks EX (PTFE-EX ) - GL 14, Ø 4,0 mm
Product Description
Two-way stopcock made of conductive PTFE-EX with straight bore and two connections with GL thread or three-way stopcock with L-shaped or T-shaped bore and three connections with GL thread. Cylindrical stopcock plug made of conductive PTFE-EX for good tightness, stop valve with mark of flow direction. Grip made of red PP. Suitable for pressure up to max. 6 bar, suitable for vacuum. Connection of tubing or tube with BOLA Laboratory Screw Joints EX.
Applications

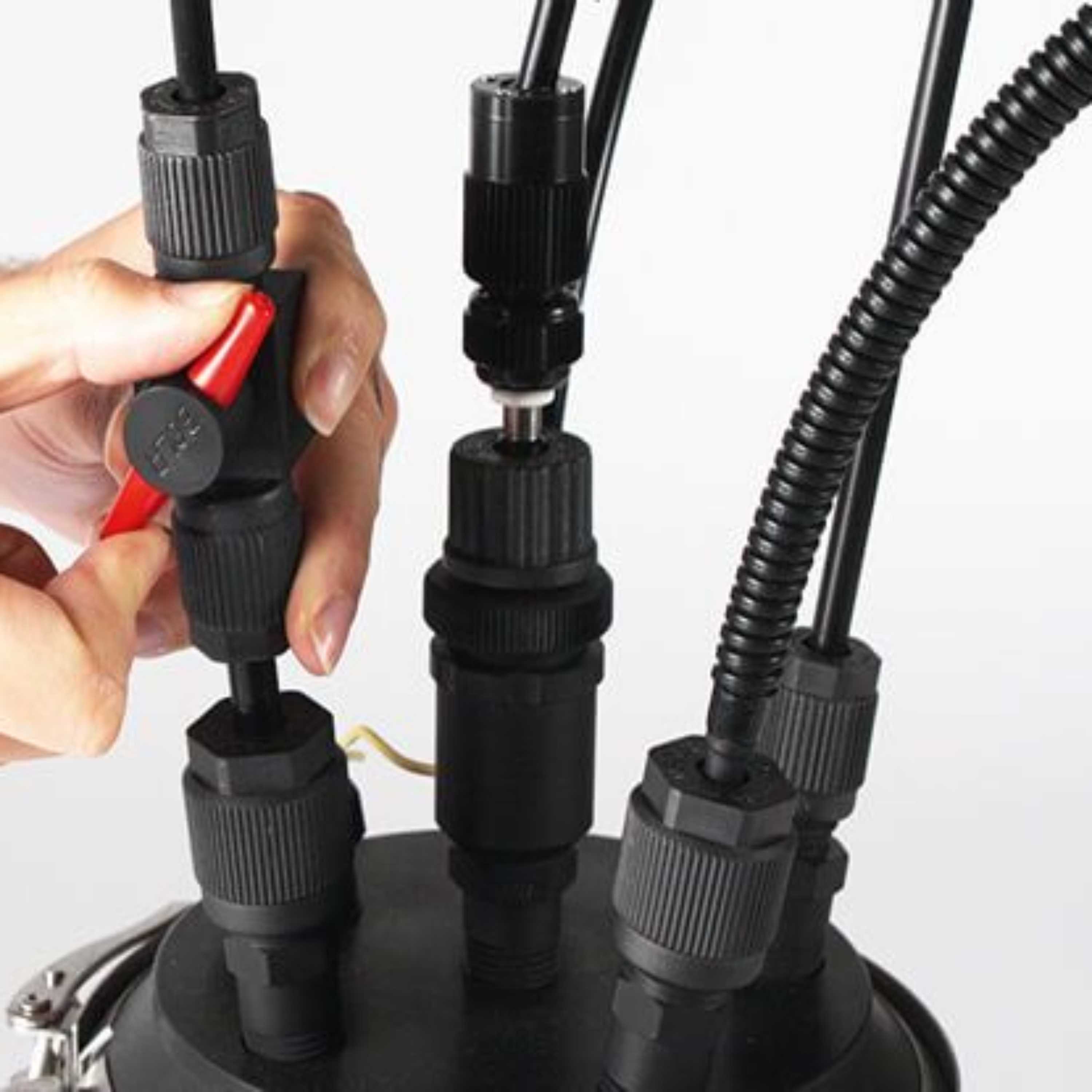

For distributing liquids or gases. Quick and easy disconnection of flow.
Specifications:
| Model | E712-14 |
| Chemical resistance | ++ very good |
| Conductivity | 1.000 kOhm |
| Material | PP, PTFE EX |
|
Pressure |
6 bar |
|
Temperature resistance |
from 0°C to +110°C |
| Vacuum | suitable |
| Bore dia. [mm] | 4 |
| Bore shape [stopcock] | 1 |
| Connecting thread [GL] |
14 |
| External dimensions [L / D / H mm] | 54 x 20 x 38 |
| Type | 2-Wege / 2-Way |
Downloadable links:
Technical information
Material Safety Data Sheets
