BOLA Filter Adapters for Syringes (PTFE ) - A Ø 34 mm
Regular price
$ 378.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Filter Adapters for Syringes (PTFE) - A Ø 34 mm
Product Description

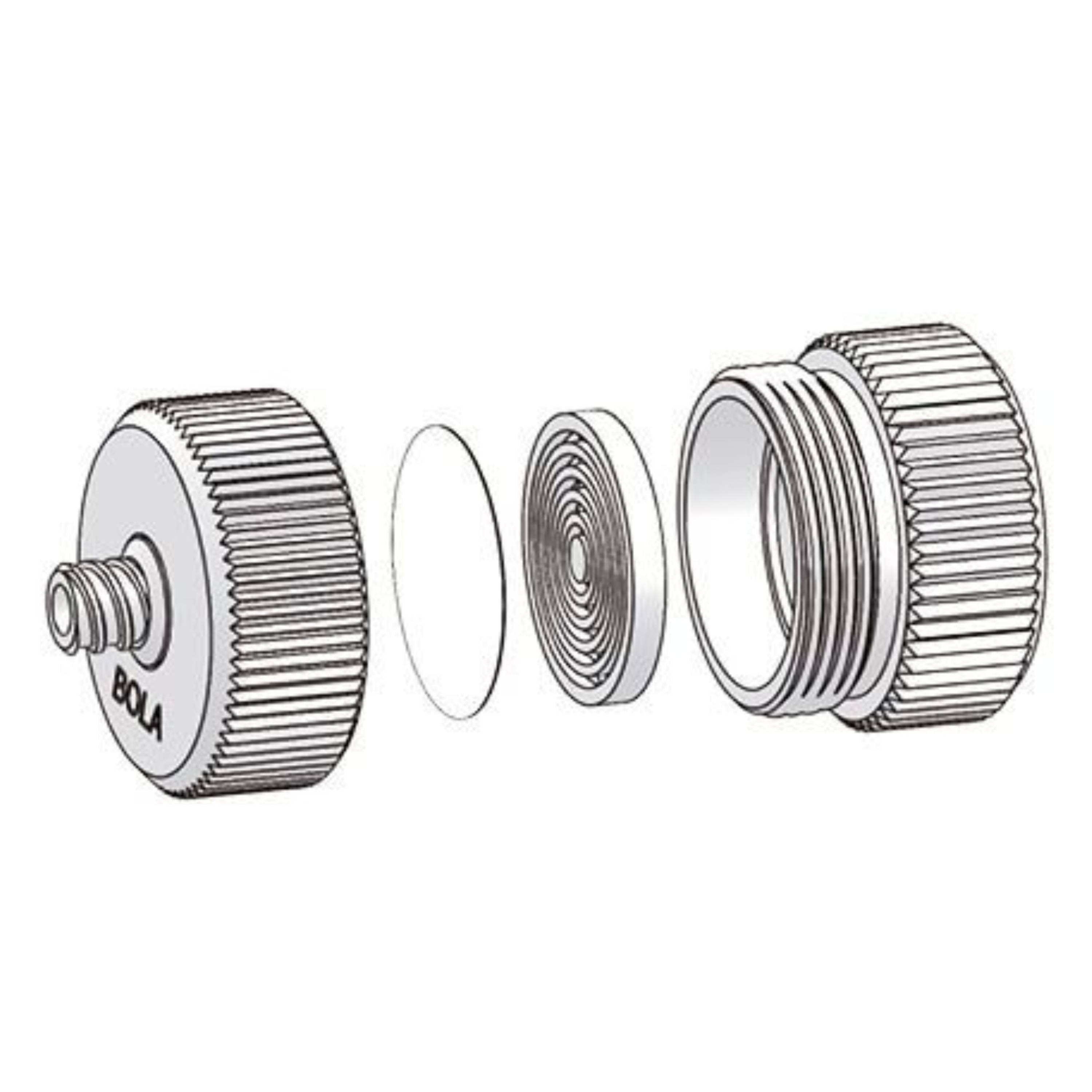

Adaptors can be screwed together into multi-stage filters (prefilter, main filter). The low weight of only 14 g or 44 g allows easy exchange of the optionally available filtering membranes.
Applications
Flow rate:
Flow capacity for water under vacuum of 100 kPa (1000 mbar) using a PTFE filtering membrane with a thickness of 0,2 mm
- For membrane-Ø 13 mm with pore size 1,00 µm: Flow 25 ml/min
- For membrane-Ø 13 mm with pore size 0,45 µm: Flow 10 ml/min
- For membrane-Ø 25 mm with pore size 1,00 µm: Flow 155 ml/min
- For membrane-Ø 25 mm with pore size 0,45 µm: Flow 35 ml/min
Specifications:
| Model | N1666-16 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Pressure | 2 bar |
| Temperature resistance | from -200°C to +250°C |
| Autoclave | 121° |
| Filtration [surface qcm] | 3,80 |
| For membrane [dia. mm] | 25 |
| O.D. [mm] |
34 |
| Total height [mm] | 40 |
Downloadable links:
Technical information
Material Safety Data Sheets
