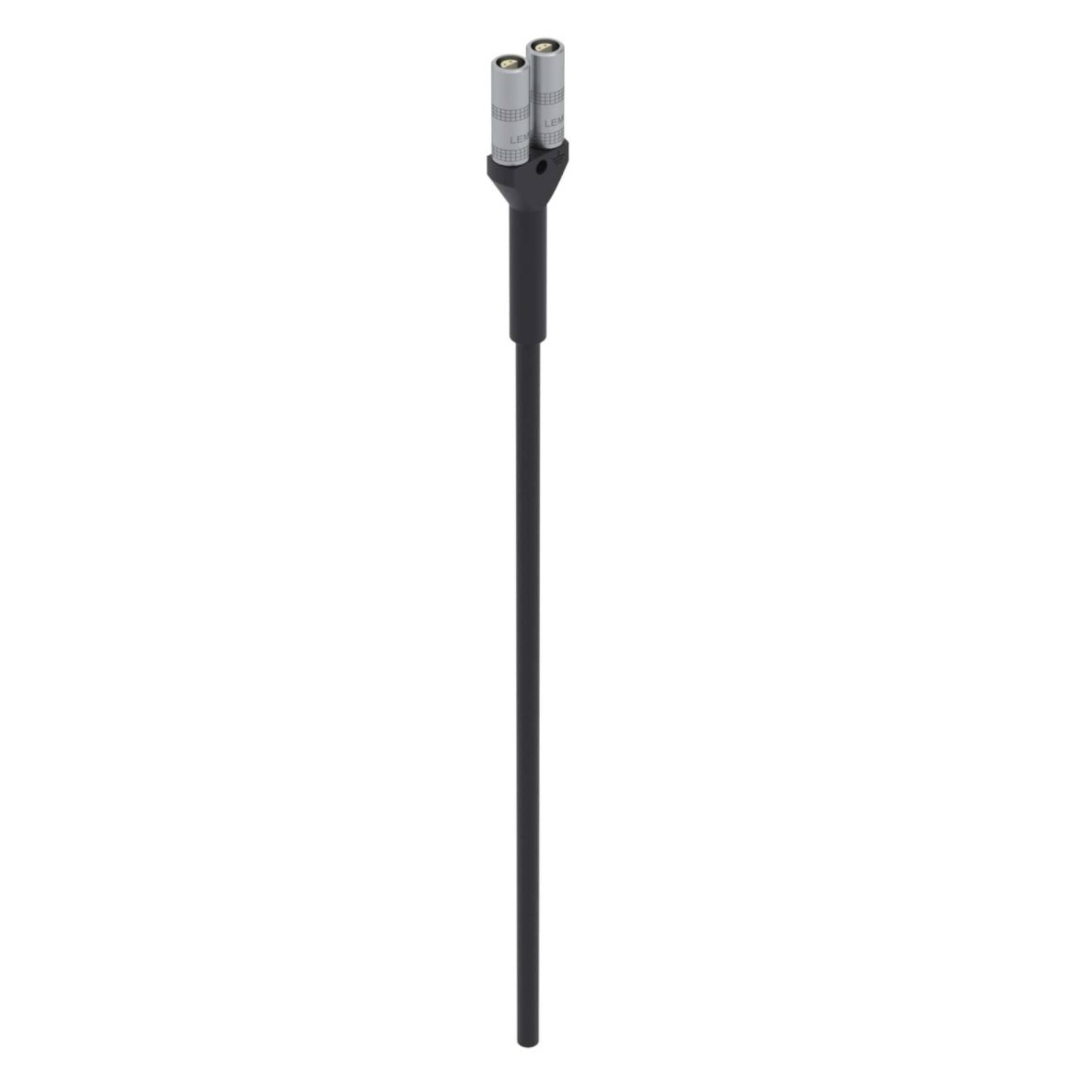

BOLA Double Temperature Probes Lemo Compact EX (PTFE-EX ) - Ø 8 mm, L 500 mm
Regular price
$ 816.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Double Temperature Probes Lemo Compact EX (PTFE-EX) - Ø 8 mm, L 500 mm
Product Description

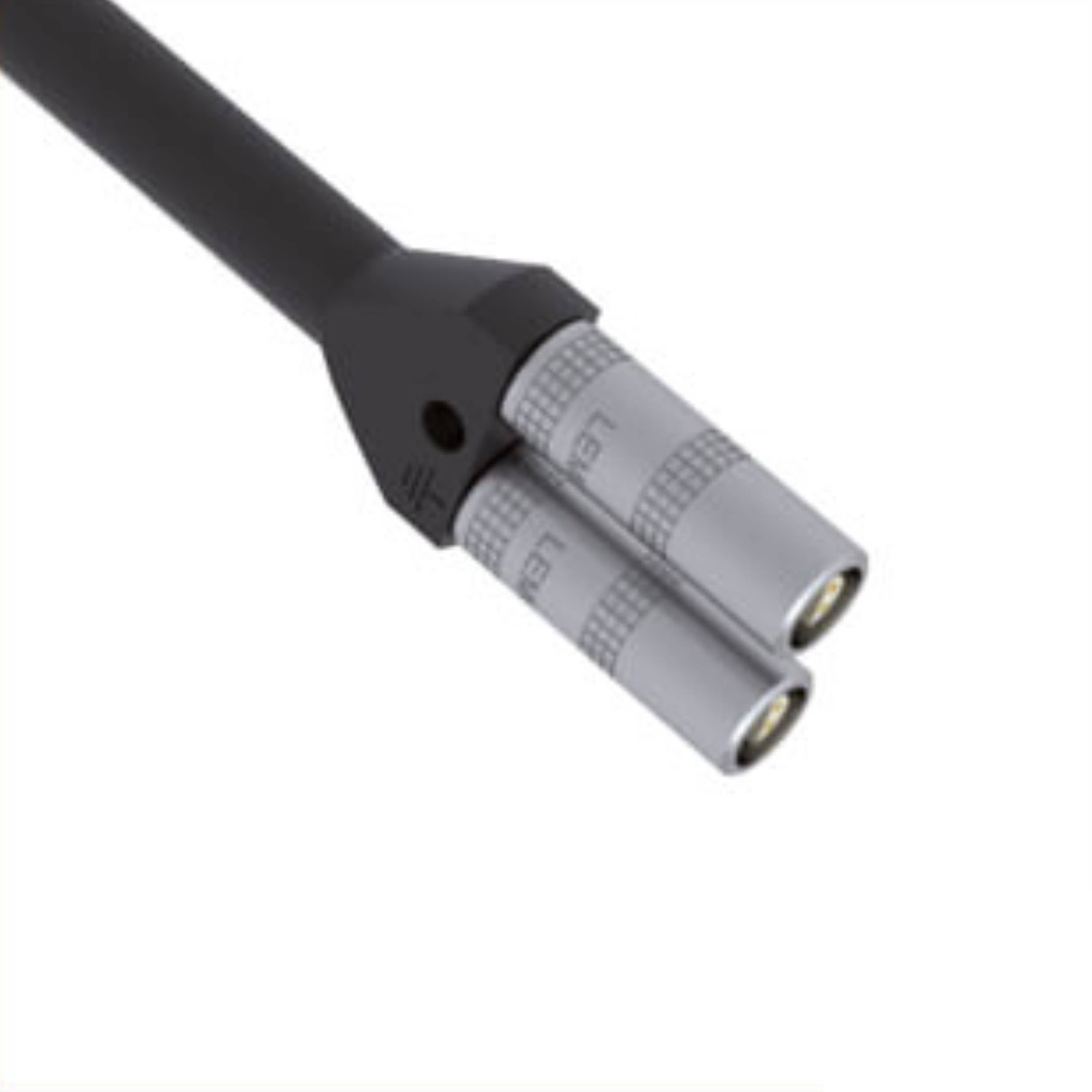

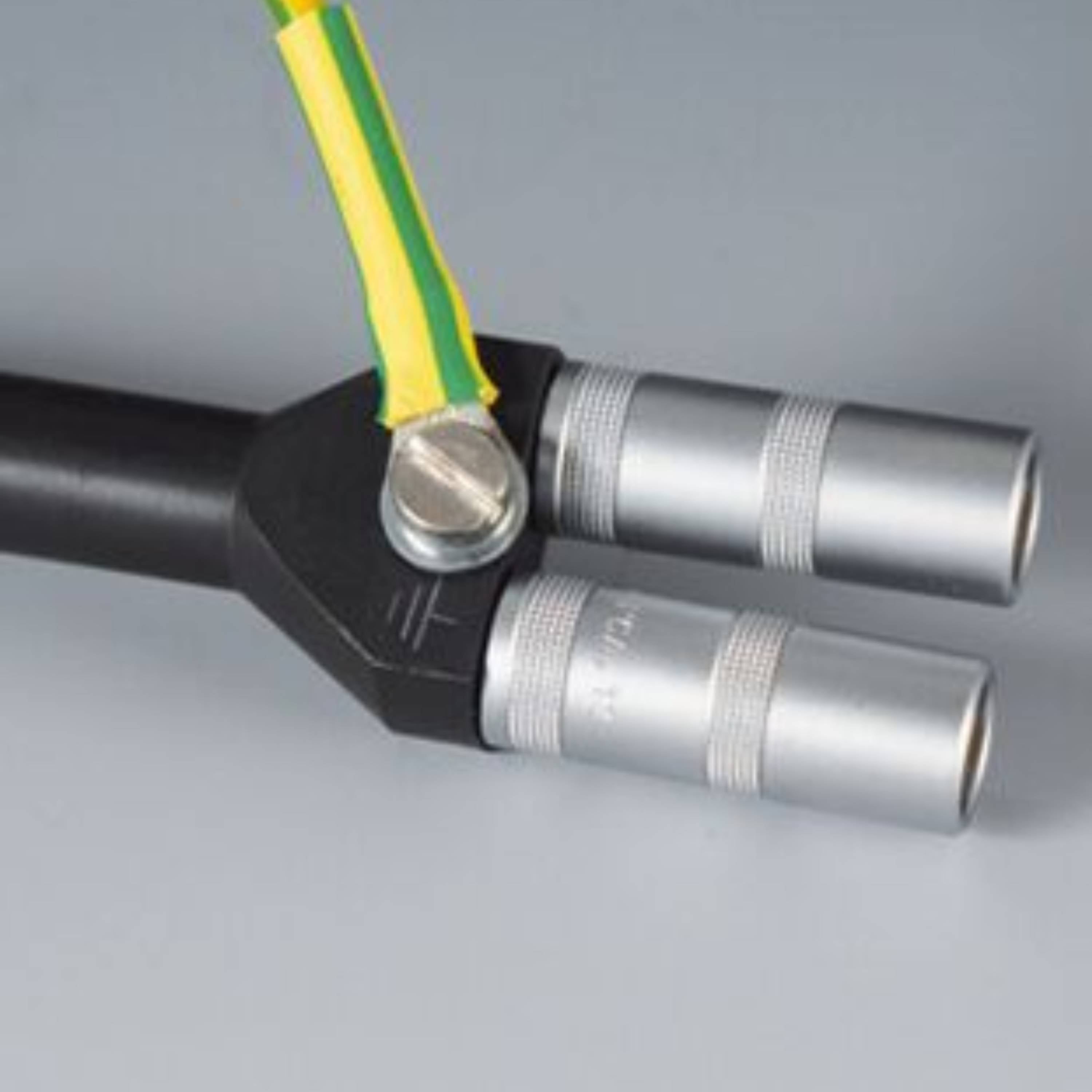

Two independent sensors PT 100 in a stainless steel tube (1.4571) encapsulated with static dissipative PTFE-EX. Collar ring Ø 12mm, bore dia. 5 mm for earthing connection. The electric circuits are locally separated complying with European Standard EN 61010-2-010:2013. Connection by two couplings (type Lemo®, socket size 1, 4-wire-system) fixed directly at the end of the probe.
Applications
-
Avoiding of electric charging
-
Parallel temperature measurement in aggressive liquids
-
Double safety due to redundant systems
-
Control function due to two independent sensors
-
Suitabel for simultaneous temperature measurement and safety circuit as per the specifications of the standard DIN EN 61010-2-010 but only one NS/GL socket will be occupied, separately switched sensors
- Ideal for built-in measurement cables
Specifications:
| Model | P1744-23 |
| Chemical resistance | ++ very good |
| Conductivity | 1.000 kOhm |
| Material | PTFE, EX |
| Temperature range | -50°C to +250°C |
| Temperature resistance | from -200°C to +250°C |
| Number of [sensors] | 2x PT 100 |
| Probe dia. [mm] | 8 |
| Total length [mm] | 500 |
| Usable length [mm] | 400 |
|
Width of coupling [(A) mm] |
27 |
Downloadable links:
Technical information
Material Safety Data Sheets
Operating Instructions
