BOLA Dirt trap (PTFE) - GL 18
Product Description

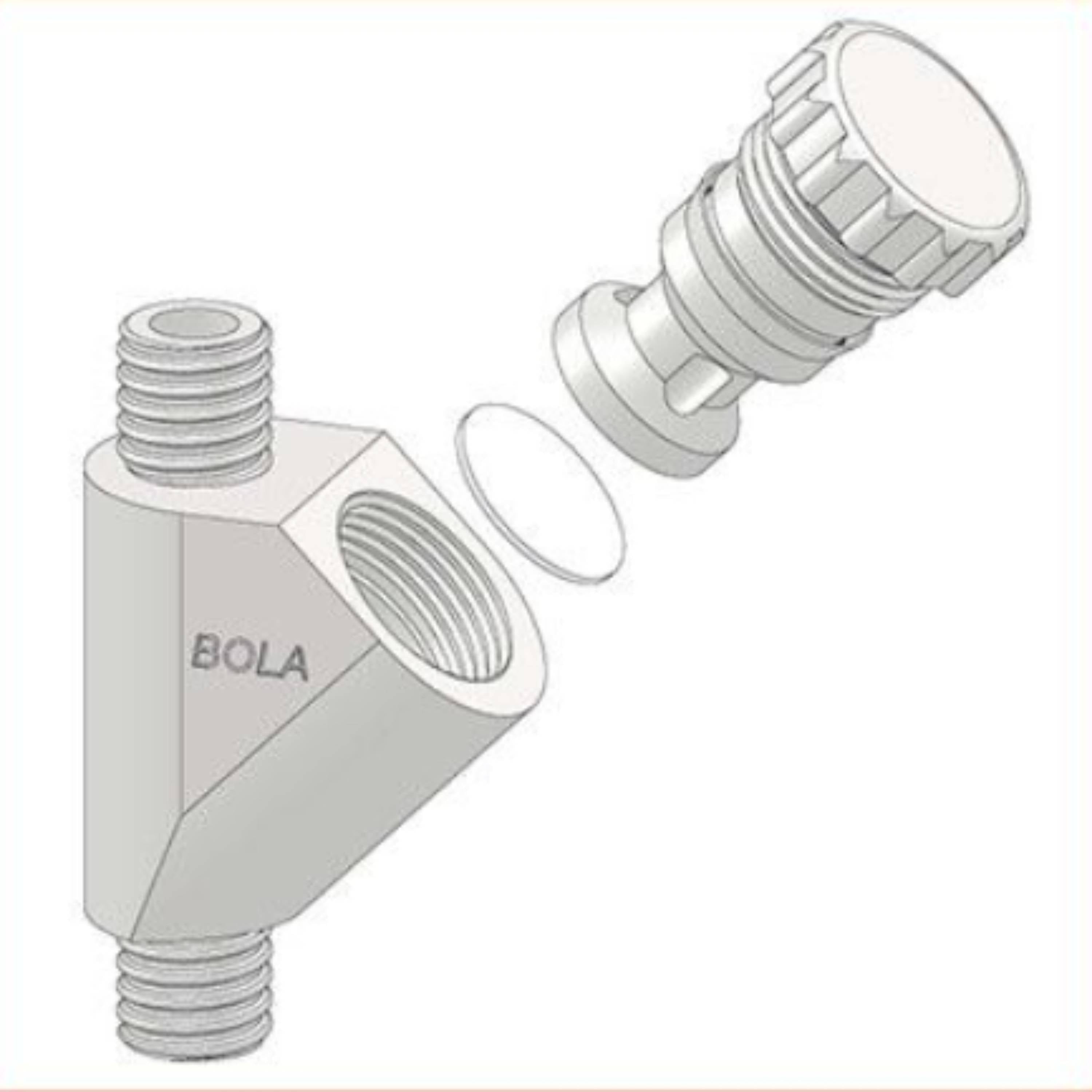

With two GL 18 threads for connecting hard-walled tubing (PTFE, PFA, FEP) or tubes with BOLA Laboratory Screw Joints. Lateral connection with plug for easy exchange of filtering membrane (thickness 0,2-3,0 mm) and for cleaning. The flow direction is marked with an arrow. Completely made of PTFE, the flowing product is only exposed to PTFE.
Applications

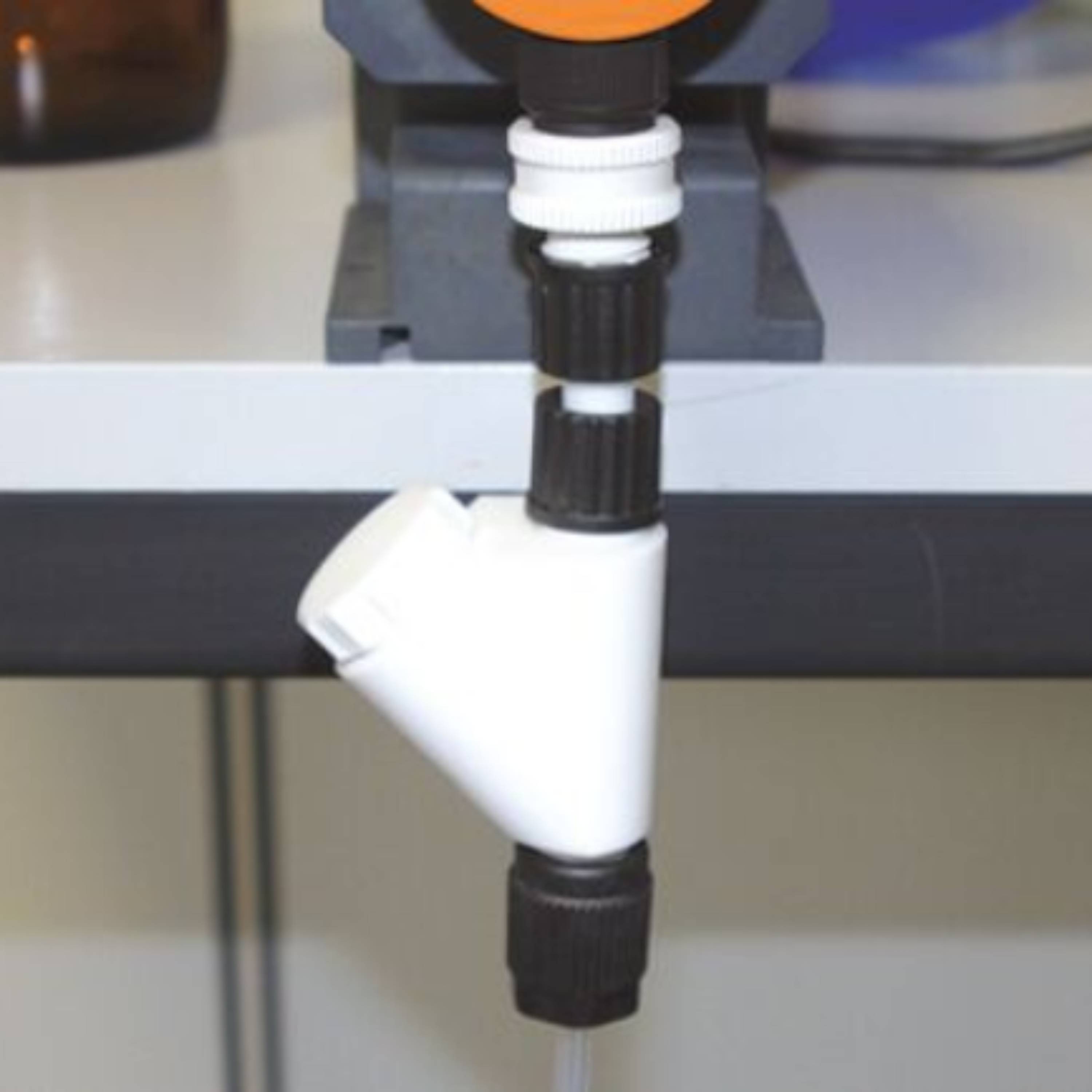

Protection of aggregates (pumps, valves, stopcocks, nozzles etc.) against particle contamination and damage. Metal-free, can be used under clean-room conditions. BOLA Filtering Membranes available separately (Cat. No. N 1690-28).
Specifications:
| Model | N1674-18 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Pressure | 10 bar |
| Temperature resistance | from -200°C to +250°C |
| Vacuum | suitable |
| Bore dia. [mm] | 8 |
| Connecting thread [GL] | 18 |
|
Dia. of filtering [membrane mm] |
25 |
| Total height [mm] | 88 |
