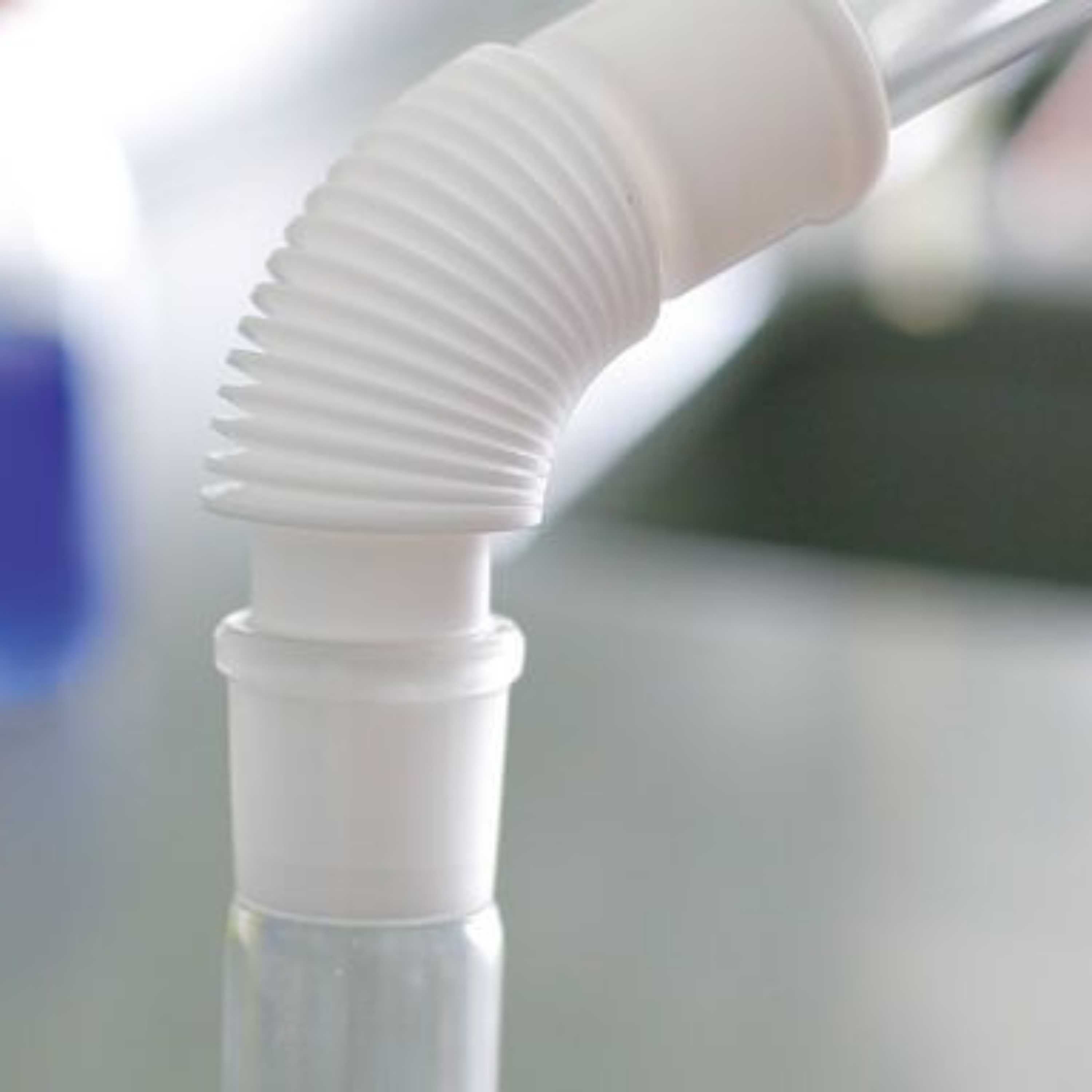

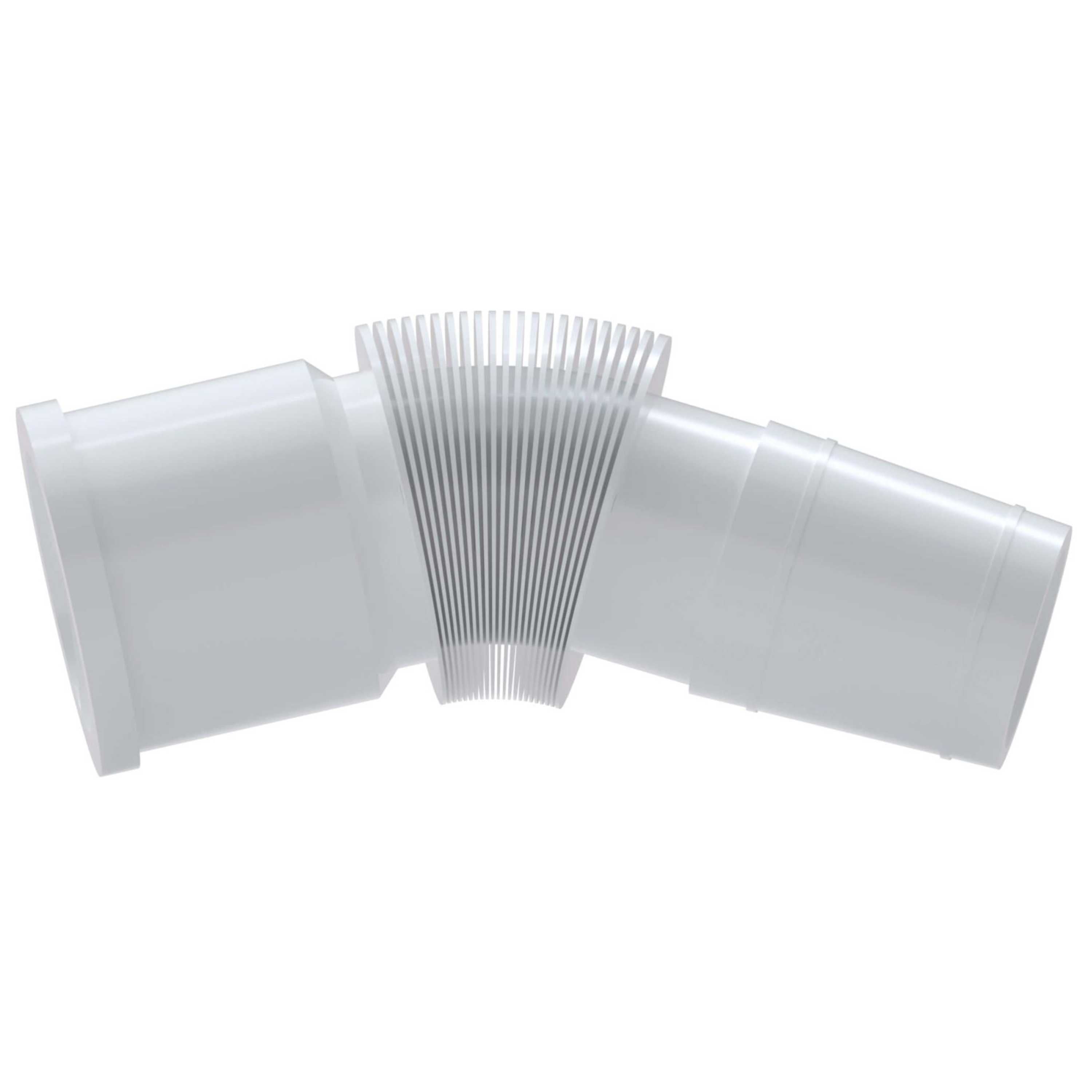

BOLA Bellows (PTFE ) - NS 24/29 - NS 24/29
Regular price
$ 110.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Bellows (PTFE ) - NS 24/29 - NS 24/29
Product Description
Made of PTFE, with sharp folds and sealing rings on the outside of the cone; maximum deflection: 120°.
Applications
Stainless connection of ground joint equipment; for compensating vibrations from vacuum pumps; for length compensation of heated columns; angular misalignment.
Specifications:
| Model | H906-06 |
| Chemical resistance | +++ universal |
| Material | PTFE |
|
Temperature resistance |
from -20°C to +200°C |
|
Vacuum |
suitable |
| Cone NS | 24/29 |
| Socket NS [European standard] | 24/29 |
| Total maximum length, [mm] (2) | 124 |
| Total minimum length, [mm] | 110 |
Downloadable links:
Material Safety Data Sheets
