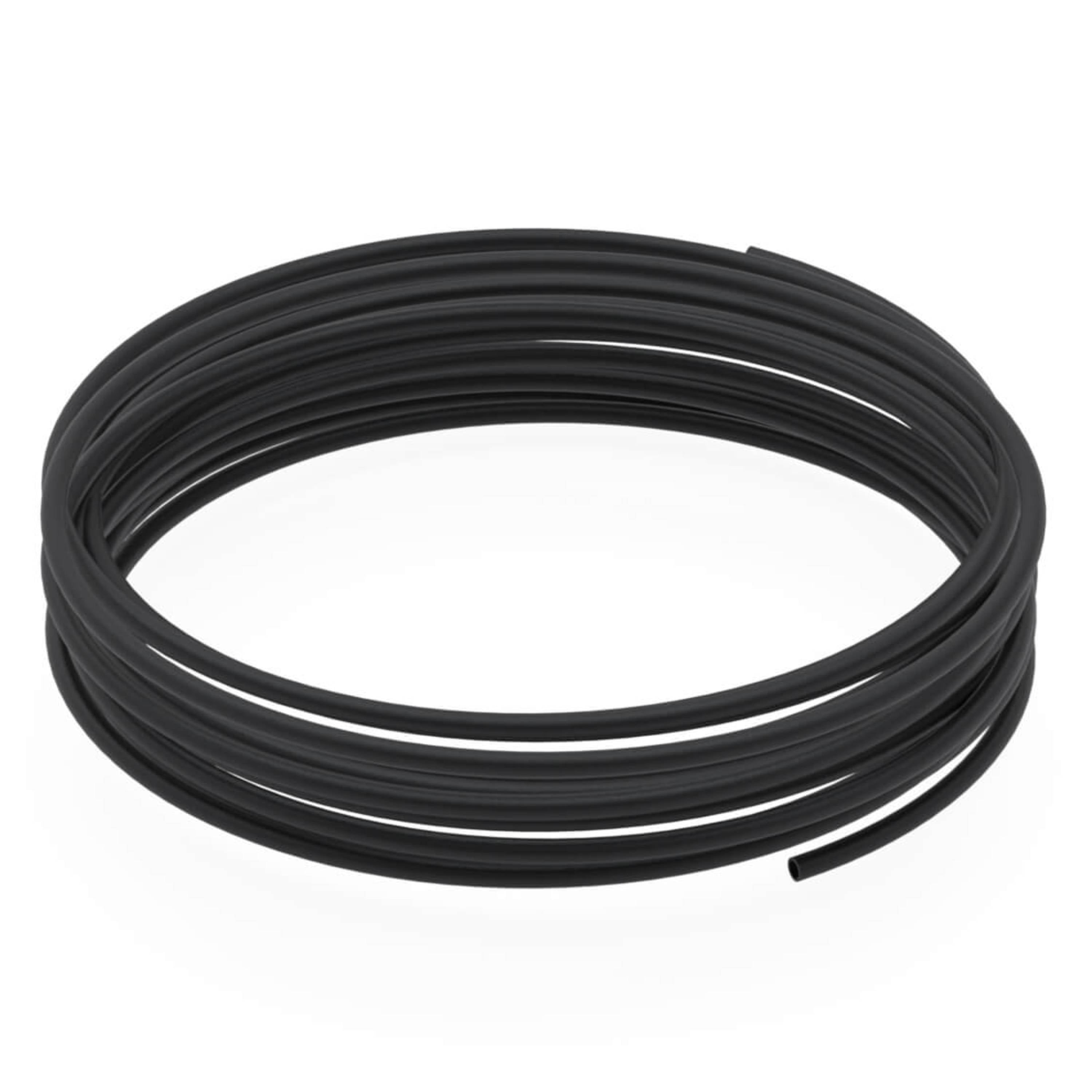

BOLA Antistatic Explosion-Proof Tubing Rolls (PTFE-EX ) - Ø 10 x Ø 12 mm, L=5m
Regular price
$ 237.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Antistatic Explosion-Proof Tubing Rolls (PTFE-EX ) - Ø 10 x Ø 12 mm, L=5m
Product Description
Very good electric conductivity due to a special “antistatic compound” made of pure PTFE and finest, highly pure carbon dust (less than 2,5%). Color: black.
Product Advantages
- Extensive chemical resistance due to PTFE parts
- Resistance of less than 1000kOhm according to DIN EN 12115 directive
- Ideal for light-sensitive substances
Applications
- Antistatic applications
- In explosive ambiance (explosion protection)
- For transport of solvents or alcohols
- Bending radius: minimum bending radius in mm at a room temperature of 23°C
- Burst pressure: computed value in bar at a room temperature of 23°C. It is recommended to restrict the maximum working pressure to 25% of the burst pressure. For higher temperatures, this value has to be multiplied by a reduction factor. It is the users responsibility to check if the used tubing fulfills the respective requirements.
Specifications:
| Model | S2040-64 |
| Chemical resistance | +++ universal |
| Conductivity | 1.000 kOhm |
| Material | PTFE EX |
| Temperature resistance | from-200°C to +250°C |
| Bending radius (1) [mm] | 144 |
| Burst pressure (2) [bar] | 28 |
| I.D. [mm] | 10,0 |
| O.D. [mm] | 12,0 |
| Reels-Length [m] | 5 |
| Wall thickness [mm] | 1,00 |
Downloadable links:
Technical information
Material Safety Data Sheets
