b.safe Waste Tube Smooth (L 2500mm, Ø 13,6x16mm, GL25 (f) ) (PTFE-EX )
Product Description

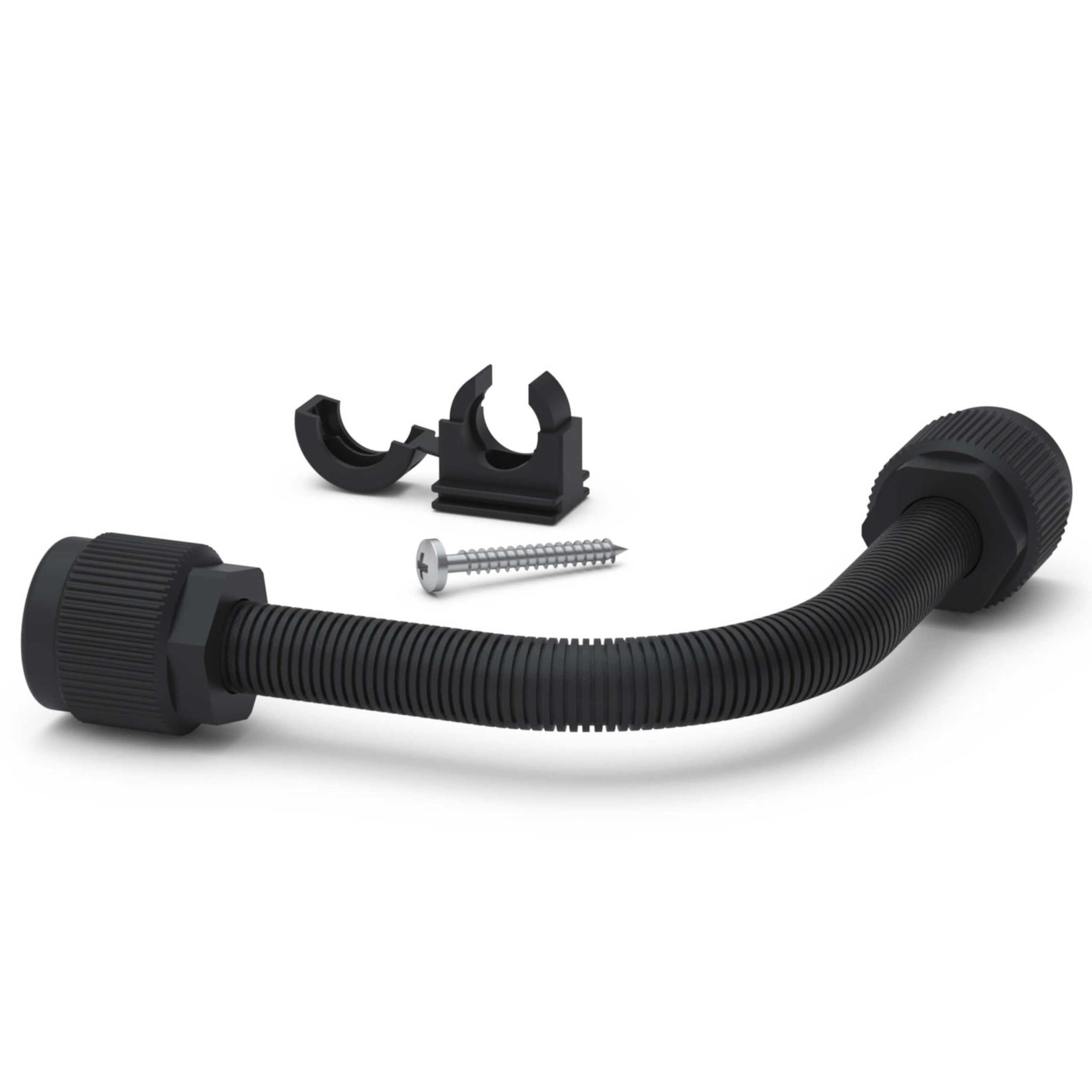

Cut from flexible corrugated tubing made of static dissipative PTFE-EX, spiral-shaped outside and smooth inside. Including two b.safe Screw Joints for Waste Tube Smooth fitting connection thread GL25 of e.g. b.safe Desktop Mounts or b.safe Waste Caps and 1 tubing holder for wall mounting. To be able to cut the tubing to the required length, the b.safe Screw Joints are not mounted.
Applications
Flexible corrugated tubing to lead liquid solvent waste e.g. from a b.safe Desktop Mount into a canister with b.safe Waste Cap and connection GL25. If you need a longer tubing than mentioned in above table, b.safe Corrugated Tubing R 773-16 and b.safe Screw Joints for Waste Tube R 1405-06 can be combined individually.
Dimensional Drawing
Specifications:
|
Model |
R1420-25 |
|
Chemical resistance |
+++ universal |
|
Conductivity |
1.000 kOhm |
|
Material |
PTFE-EX |
|
Temperature resistance |
from -200°C to +250°C |
|
Connecting thread |
GL25 weiblich/female |
|
I.D. [mm] |
ca./approx. 13,6 |
|
Length [mm] |
2000 |
|
O.D. [mm] |
ca./approx. 16,2 |
