b.safe Waste Tube (L 600mm, Ø 13,5x18mm, GL25 (f) ) (PTFE-EX )
Product Description

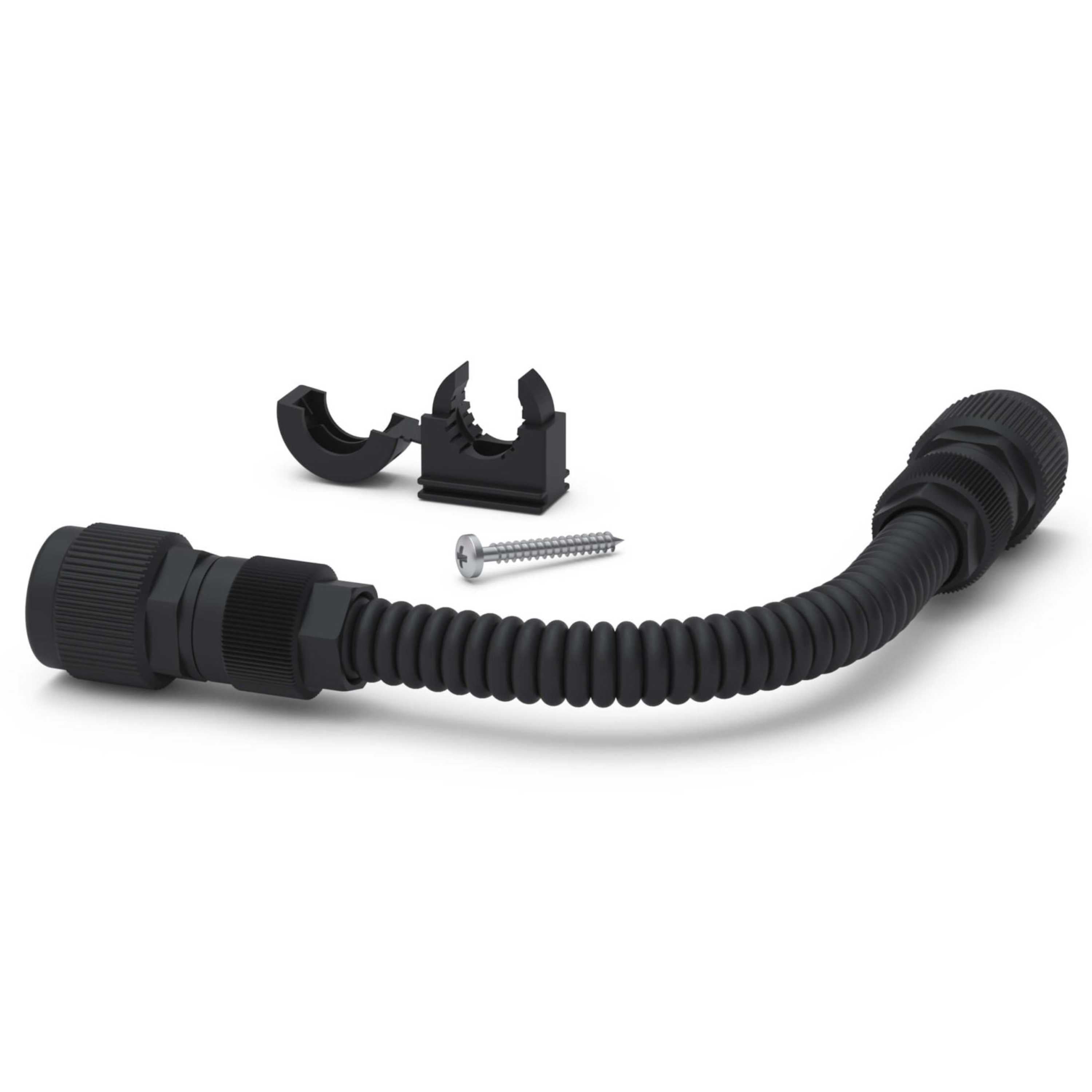

Cut from flexible corrugated tubing made of static dissipative PTFE-EX, spiral-shaped inside and outside. Including two b.safe Screw Joints for Waste Tube fitting connection thread GL25 of e.g. b.safe Desktop Mounts or b.safe Waste Caps and 1 tubing holder for wall mounting. To be able to cut the tubing to the required length, the b.safe Screw Joints are not mounted. Using the hexagon key they can be screwed in the tubing.
Applications
Flexible corrugated tubing to lead liquid solvent waste e.g. from a b.safe Desktop Mount into a canister with Waste Cap and connection GL25. If you need a longer tubing than mentioned in above table, b.safe Corrugated Tubing R 773-18 and b.safe Screw Joints for Waste Tube R 1405-08 on can be combined individually.
Dimensional Drawing
Specifications:
|
Model |
R1410-06 |
|
Chemical resistance |
+++ universal |
|
Conductivity |
1.000 kOhm |
|
Material |
PTFE-EX |
|
Temperature resistance |
from -200°C to +250°C |
|
Connecting thread |
GL25 weiblich/female |
|
I.D. [mm] |
ca./approx. 13,5 |
|
Length [mm] |
600 |
|
O.D. [mm] |
ca./approx. 18 |
