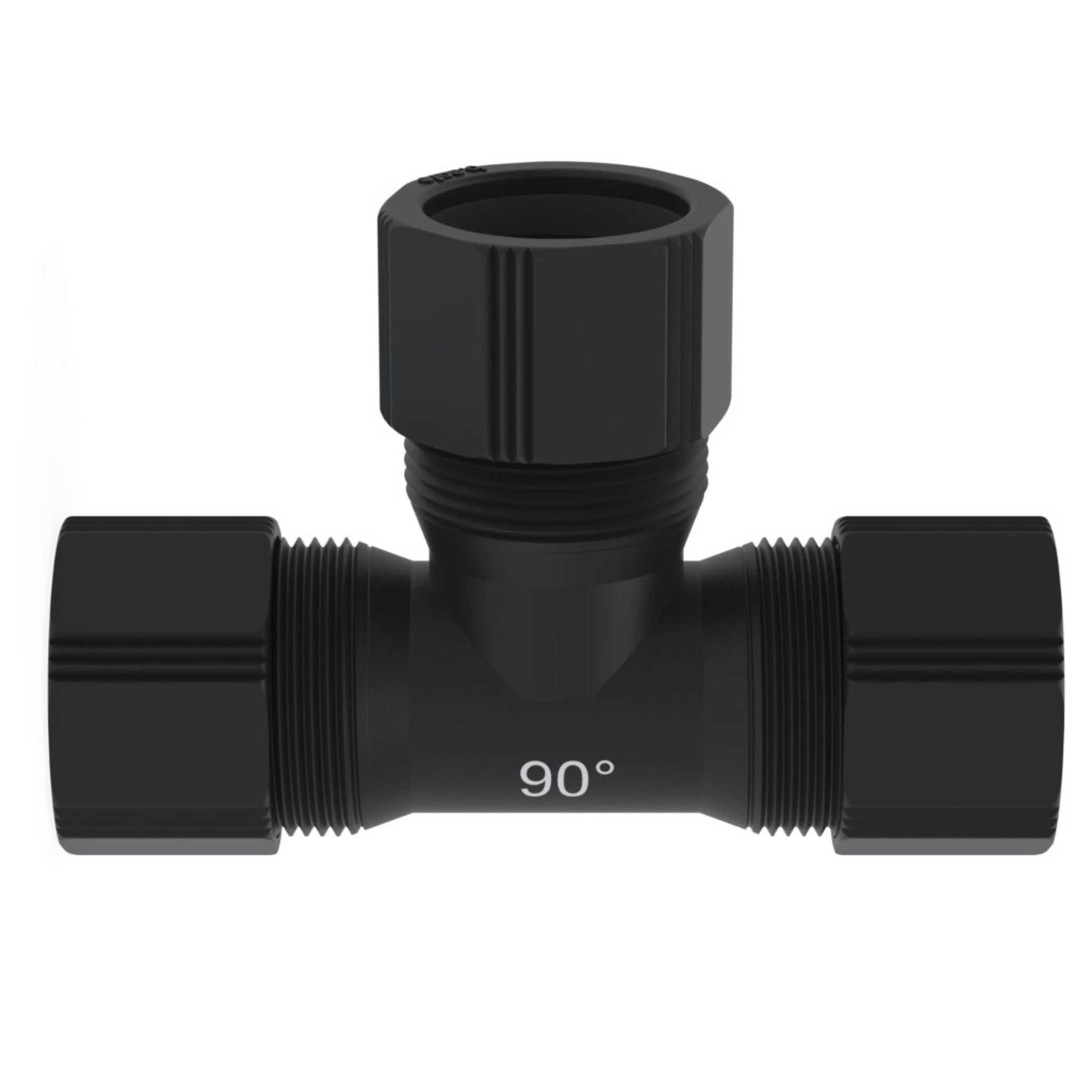

b.safe T-Connection Tubes for Waste Pipes (90°, L 125 mm, 3x Ø 32 mm ) (PE-EX )
Regular price
$ 321.95
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe T-Connection Tubes for Waste Pipes (90°, L 125 mm, 3x Ø 32 mm ) (PE-EX )
Product Description

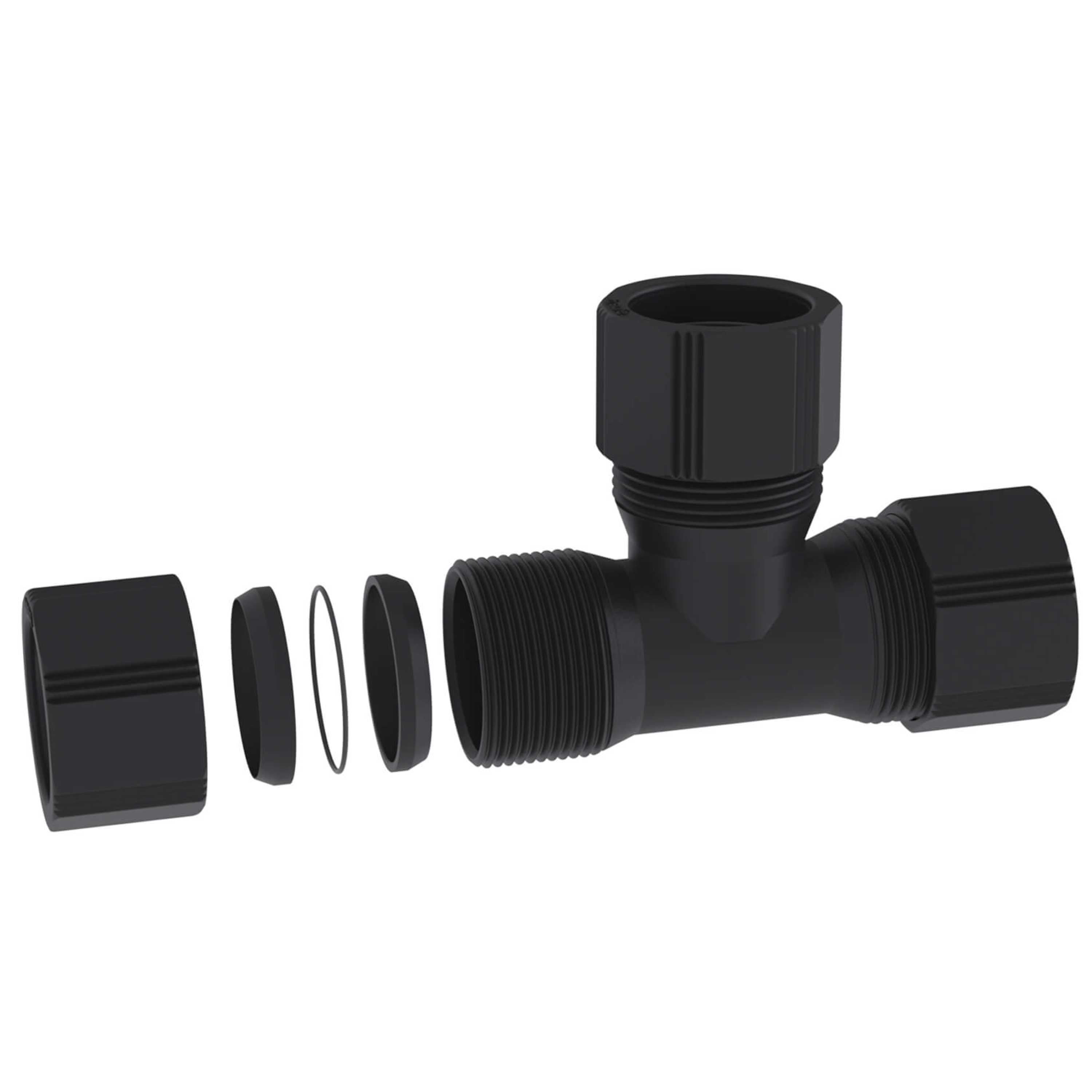

T-shaped connector made of static dissipative PE-EX with 3x clamp connection to insert and clamp b.safe Waste Pipes with O.D. 32 mm. Each clamp connection consists of 1 lock nut in PE-EX, 2 conical sealing rings in PTFE-EX and 1 O-ring in EPDM.
Dimensional Drawing
Specifications:
|
Model |
R1192-05 |
|
Chemical resistance |
++ very good |
|
Conductivity |
1.000 kOhm |
|
Material |
PE-EX, PTFE-EX |
|
Temperature resistance |
from -50°C to +80°C |
|
Central connection |
Klemmverbindung / clamp connection Ø 32 mm |
|
Form |
T |
|
Lateral connections |
Klemmverbindung / clamp connection Ø 32 mm |
|
Total length [mm] |
125 |
|
With Slope |
Nein / No |
Downloadable links:
Technical information
Operating Instructions
