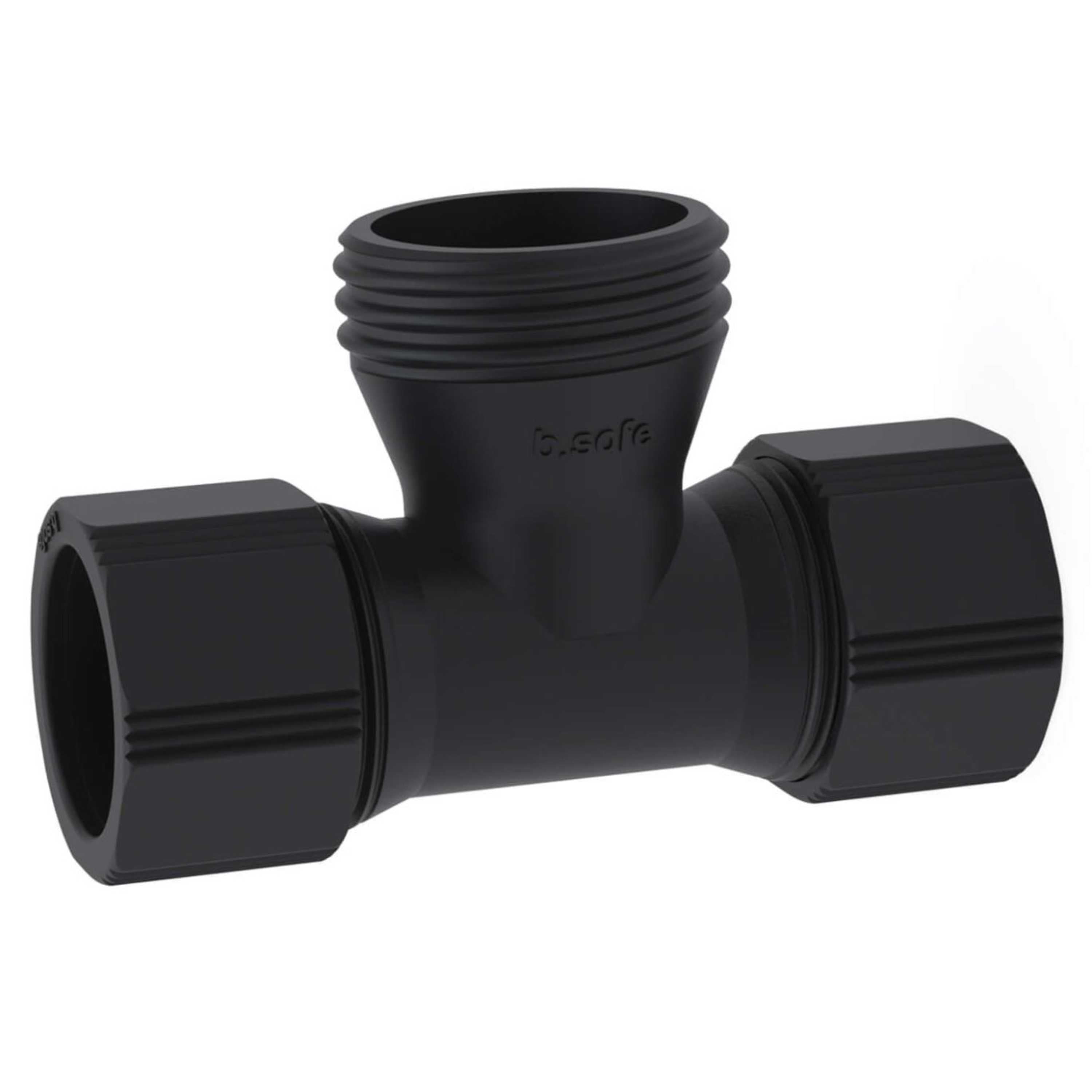

b.safe T-Connection Tubes for Waste Pipes (225 mm, 2x Ø 32 mm, 1x GL45 (m) ) (PE-EX )
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe T-Connection Tubes for Waste Pipes (225 mm, 2x Ø 32 mm, 1x GL45 (m) ) (PE-EX )
Product Description

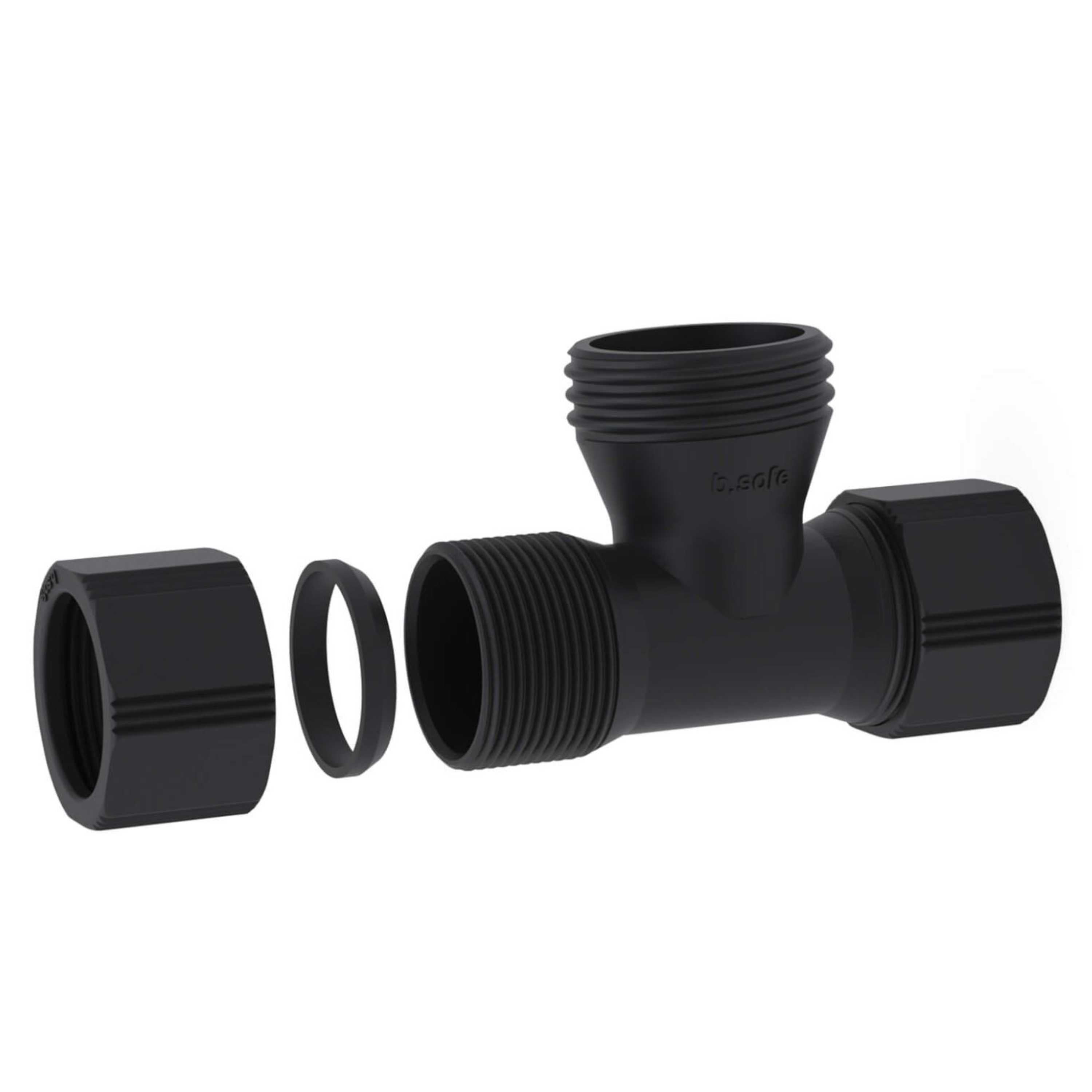

T-shaped connector made of static dissipative PE-EX, clamp connections on both sides to insert and clamp b.safe Waste Pipes with O.D. 32 mm. Central connection with male thread GL45 to mount e.g. b.safe System Caps. Each clamp connection consists of 1 lock nut in PE-EX, 2 conical sealing rings in PTFE-EX and 1 O-ring in EPDM.
Dimensional Drawing

Specifications:
|
Model |
R1194-02 |
|
Chemical resistance |
++ very good |
|
Conductivity |
1.000 kOhm |
|
Material |
PE-EX, PTFE-EX |
|
Temperature resistance |
from -50°C to +80°C |
|
Central connection |
GL45 männlich / male |
|
Form |
T |
|
Lateral connections |
Klemmverbindung / clamp connection Ø 32 mm |
|
Total length [mm] |
225 |
Downloadable links:
Technical information
Operating Instructions
