b.safe System Waste Caps (S55, 1xGL25 (m), 1xGL14 (f) ) (PE-EX/PP-GF )
Regular price
$ 173.95
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe System Waste Caps (S55, 1xGL25 (m), 1xGL14 (f) ) (PE-EX/PP-GF )
Product Description

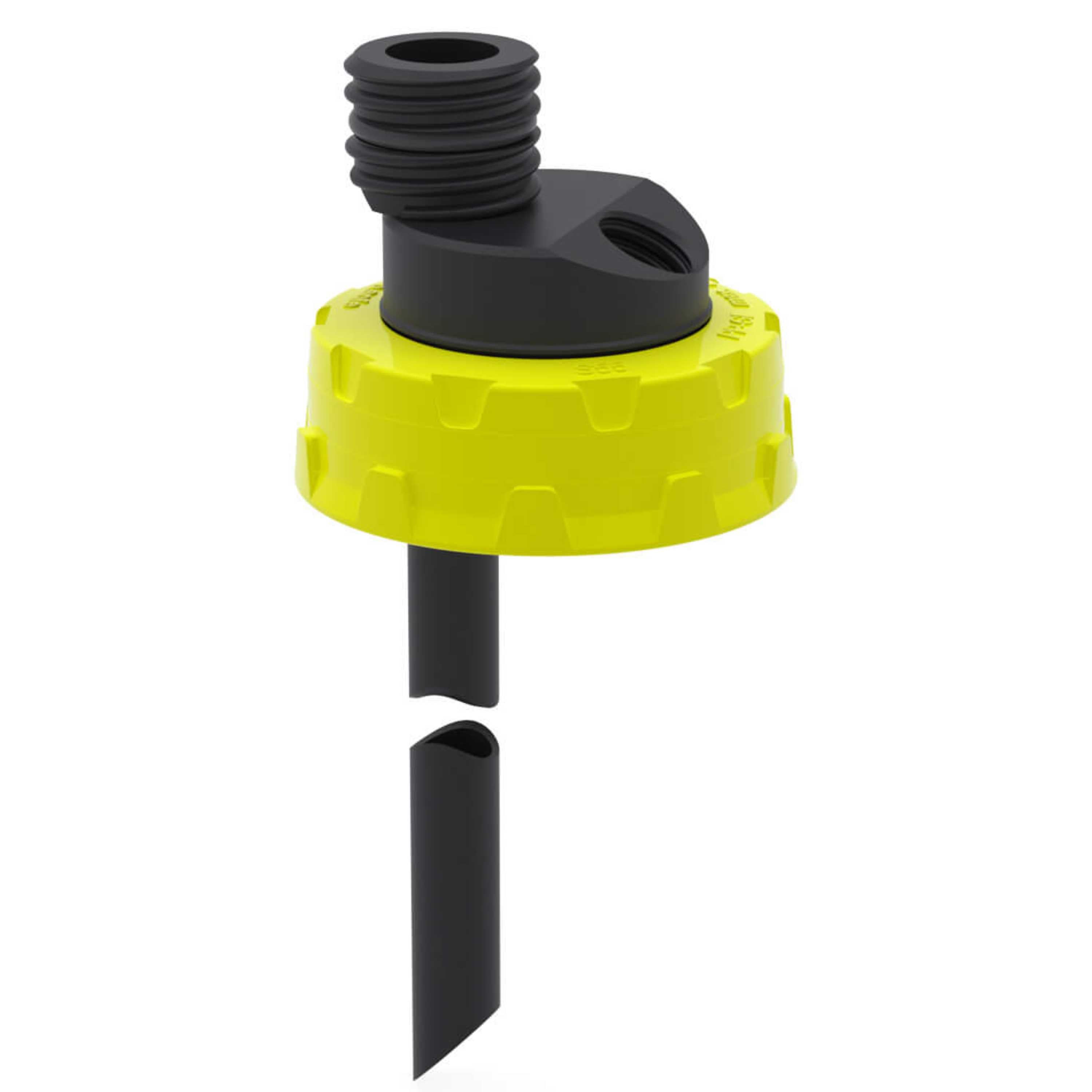

Screw cap made of PP-GF, free movable insert made of conductible PE-EX with 1 connector GL25 suitable for b.safe Waste Tubes and 1 connector GL14 for fixing the b.safe Venting Hose or a b.safe Exhaust Filter. Design and scope of delivery according to table.
Applications
b.safe Waste Tubes can be connected to the canister by means of these b.safe System Waste Caps and solvents can be collected safely. Solvent vapors are held back by the exhaust filter with activated carbon or can be led to the hood by means of a venting hose
Dimensional Drawing
Specifications:
|
Model |
R1321-55 |
|
Chemical resistance |
++ very good |
|
Conductivity |
1.000 kOhm |
|
Material |
PE-EX, PP-GF |
|
Temperature resistance |
from -50°C to +80°C |
|
Filling below surface level |
ja / yes |
|
For Canister thread |
S55 |
|
Hose connector |
1x GL25 (m) |
Downloadable links:
Technical information
Material Safety Data Sheets
