b.safe Starter Set Multiport II (GL 25, 4x UNF 1/4", 2x NPT 1/8" ) (PE-EX )
Product Description
Made of static dissipative PE-EX, suitable for boards with a thickness of 10 to 35 mm, easy fixing with counter nut. Low installation height due to connections at the sides, inclined threads are for additional sloping and connection of tubings without bending. Connections at upper side: 2x2 capillary connections (thread UNF 1/4“) incl. b.safe Fittings for capillaries with O.D. 1,6/2,2/3,2 mm , 2x1 hose connection (female thread NPT 1/8“) incl. b.safe Hose Connector for tubing I.D. 6,5-8 mm. Connection at bottom: male thread GL25 for direct connection with flexible b.safe Waste Tubes.
Scope of delivery

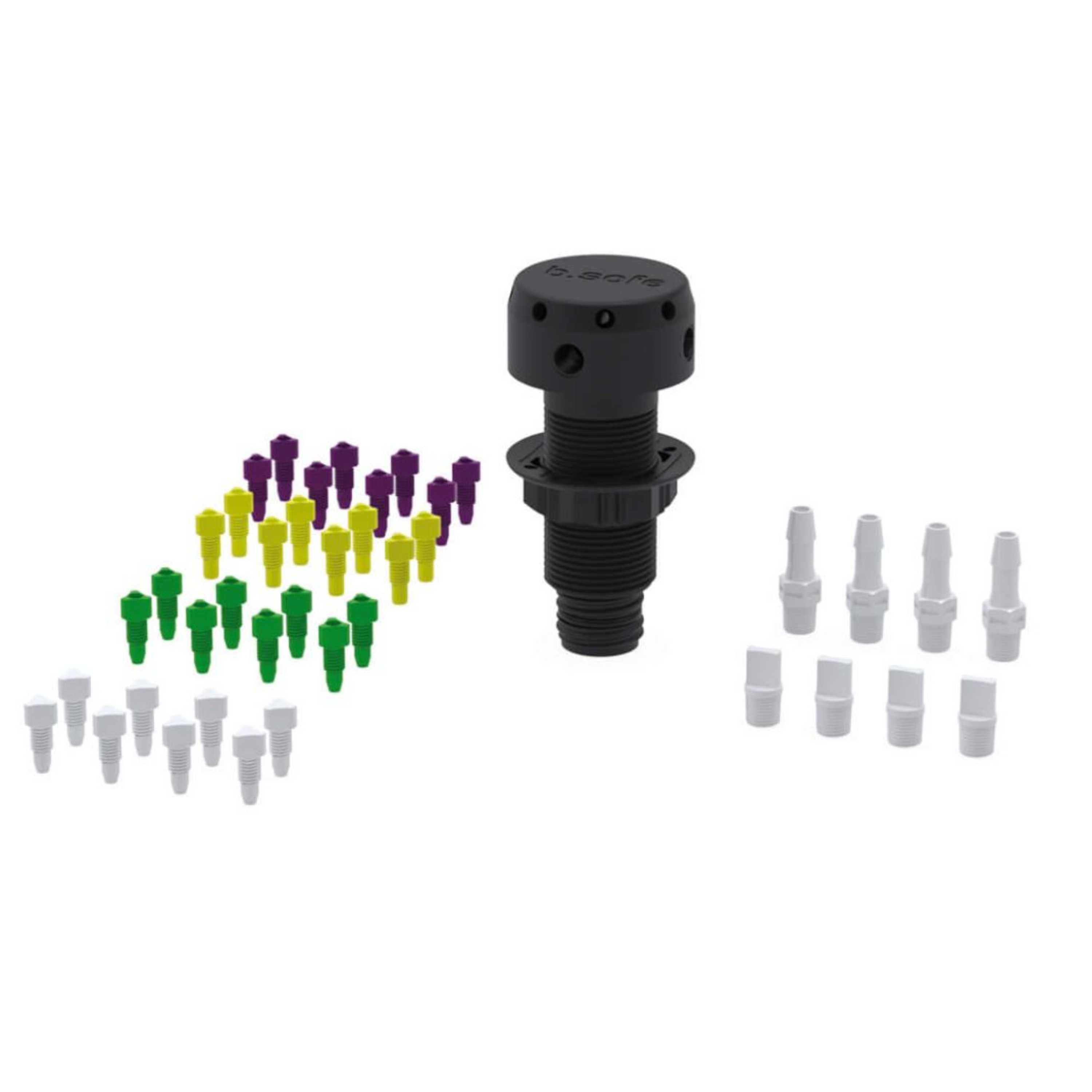

1x b.safe Desktop Mount Multiport II
12x b.safe Fittings: 4x Ø 1,6 mm (green), 4x Ø 2,2 mm (purple), 4x Ø 3,2 mm (yellow)
4x b.safe Blind Fittings for capillary connection (UNF 1/4“)
2x b.safe Hose Connectors for
I.D. 6,5-8 mm
2x b.safe Blind Fittings for hose connection (NPT 1/8“)
Applications
Dimensional Drawing
Specifications:
|
Model |
R9125-02 |
|
Chemical resistance |
++ very good |
|
Conductivity |
1.000 kOhm |
|
Material |
PE-EX |
|
Temperature resistance |
from -50°C to +80°C |
|
Description |
Starter Set Multiport II |
|
No. of hose connections |
2x NPT 1/8" |
|
Number of capillary connectors |
4x UNF 1/4" |
