b.safe Mount for Waste Pipes (Ø 32 mm, M8 x 200 mm ) (Steel )
Regular price
$ 43.95
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe Mount for Waste Pipes (Ø 32 mm, M8 x 200 mm ) (Steel )
Product Description

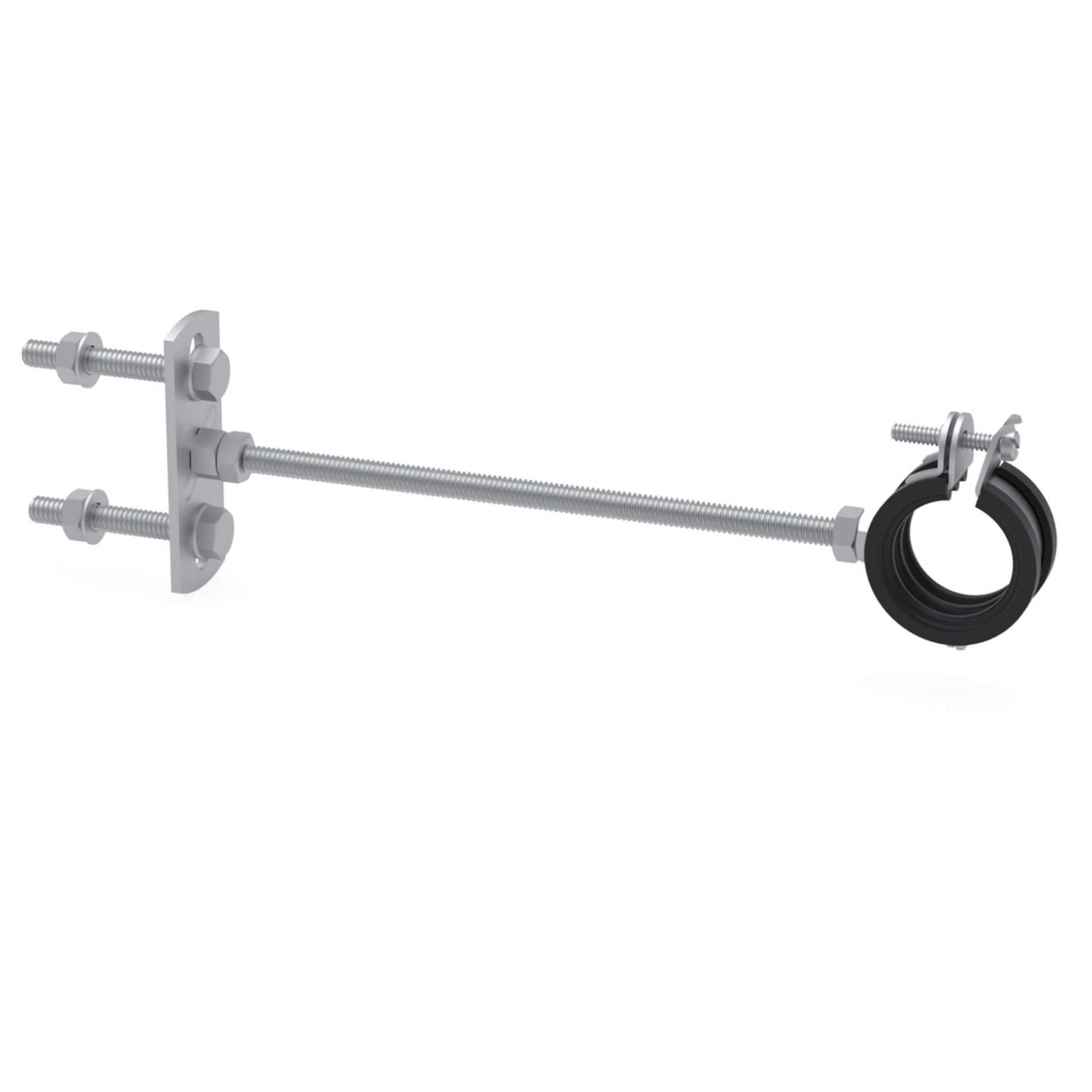

Set consisting of 1 base plate with female thread M8, 1 threaded rod M8 length 200 mm, 1 pipe clamp with female thread M8 for tube O.D. 32 mm and fastening material for assembly on walls or under desktops.
Applications

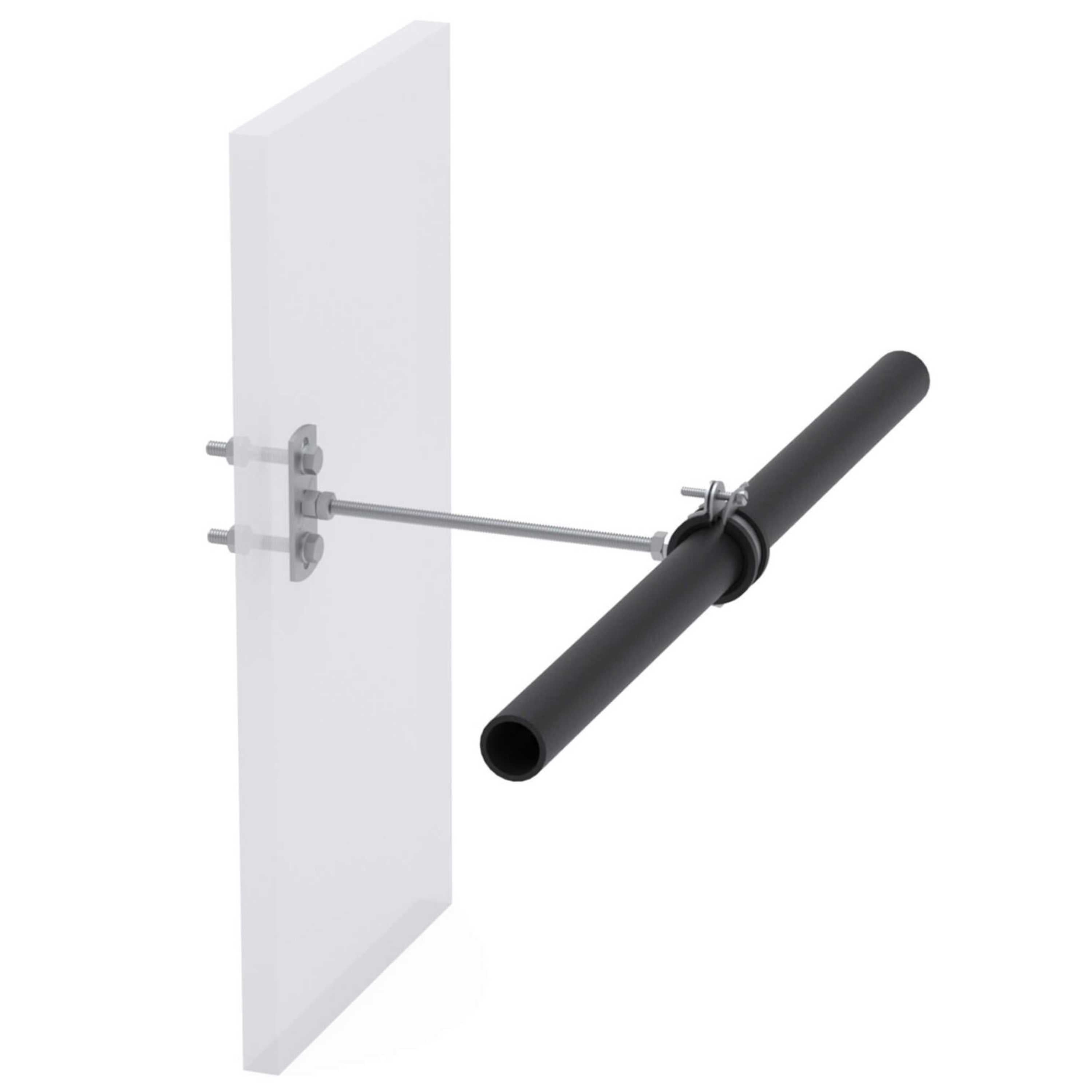

Fix the base plate on the wall. First connect the threaded rod with the pipe clamp, then connect the pipe clamp to the base plate. Make sure to align the clamp correctly. Open the clamp, clip in the b.safe Waste Pipe and close the clamp again.
Specifications:
|
Model |
R1163-32 |
|
Dimensions base plate [L x W x H mm] |
80 x 30 x 3 |
Downloadable links:
Technical information
