b.safe Funnels 130 (S 55 - Ø 130 mm ) (PE-EX )

Order upon Request
SKU: R 830-20
Regular price $ 153.95

Still have questions? Ask our experts!

b.safe Funnels 130 (S 55 - Ø 130 mm ) (PE-EX )

Product Description

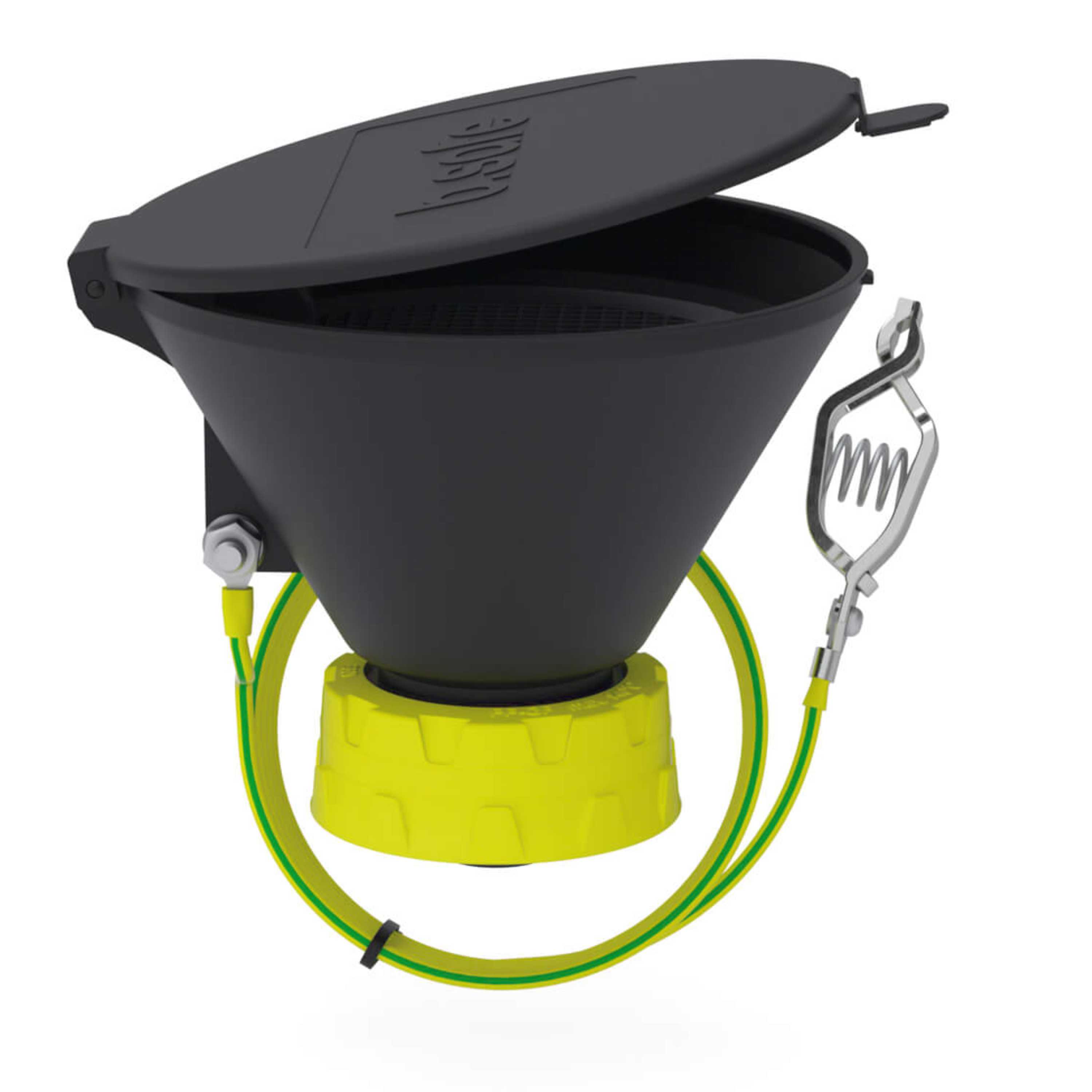

Funnel made of PE / static dissipative PE-EX for liquid waste disposal. The funnel can be safely mounted on the waste container with its freely turnable cap that is safely fixed with filling neck. The sieve restrains magnetic stirrer bars and other solid materials and can be easily removed for cleaning. The hinged lid reliably withholds vapors from the container. The static dissipative PE-EX version includes two attachable filling tubes (Ø 28 x usable length 97 mm per tube) as well as an 1.5 m long grounding cable. Safe earthing of the funnel can be made via the grounding cable by qualified personnel. The mounted filling tube allows an under level filling to avoid static charging. Version and scope of delivery as per below chart.


Specifications:

Model

R830-20

Chemical resistance

 ++ very good

Material

PE / PE-EX

Temperature resistance

from -50°C to +80°C

For thread

S 55

Material

PE-EX

Number of filling tubes

0

Number of grounding cable

1


Downloadable links:

Technical information

Material Safety Data Sheets

Operating Instructions
