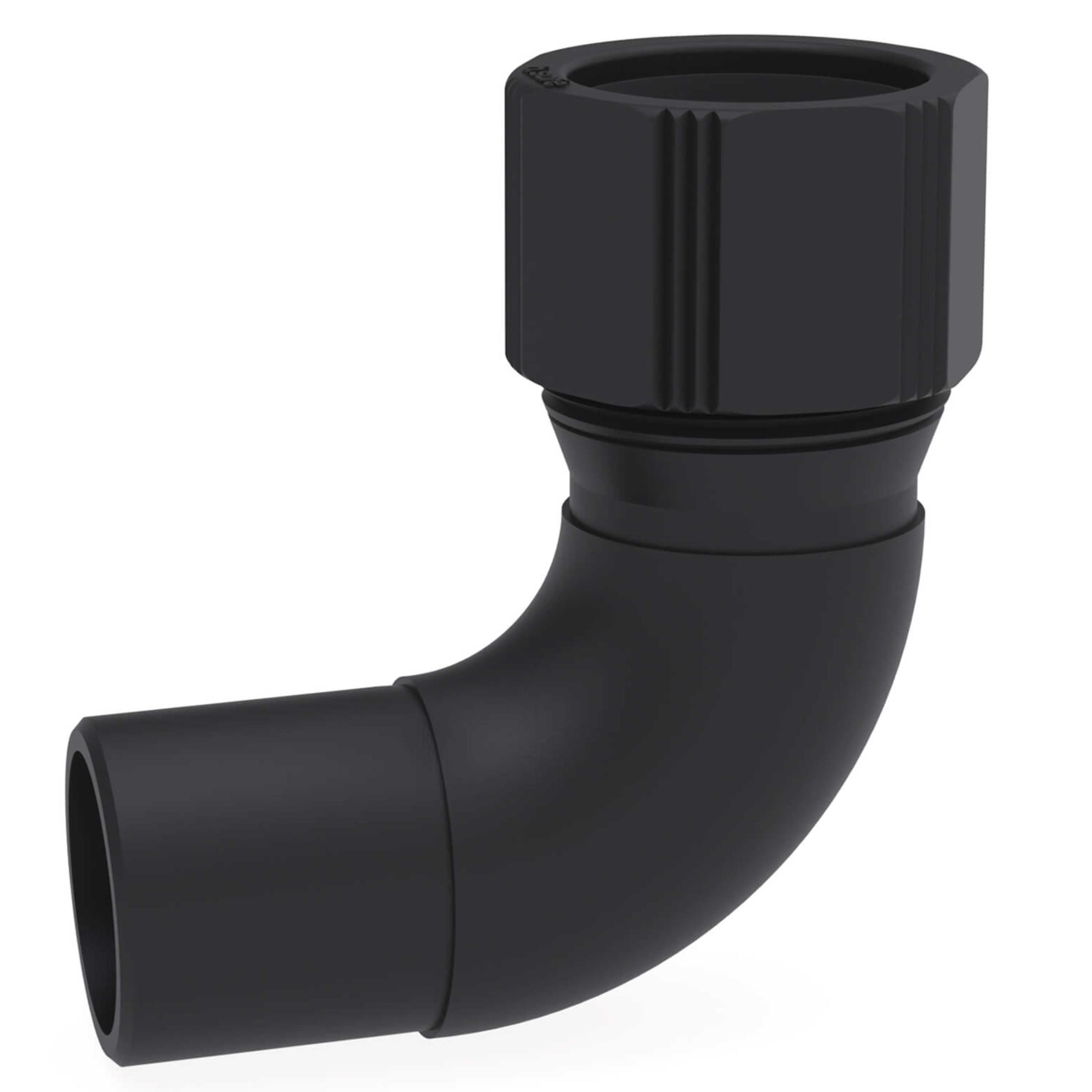

b.safe Elbow Connector (92°, 1x Ø 32 mm ) (PE-EX )
Product Description

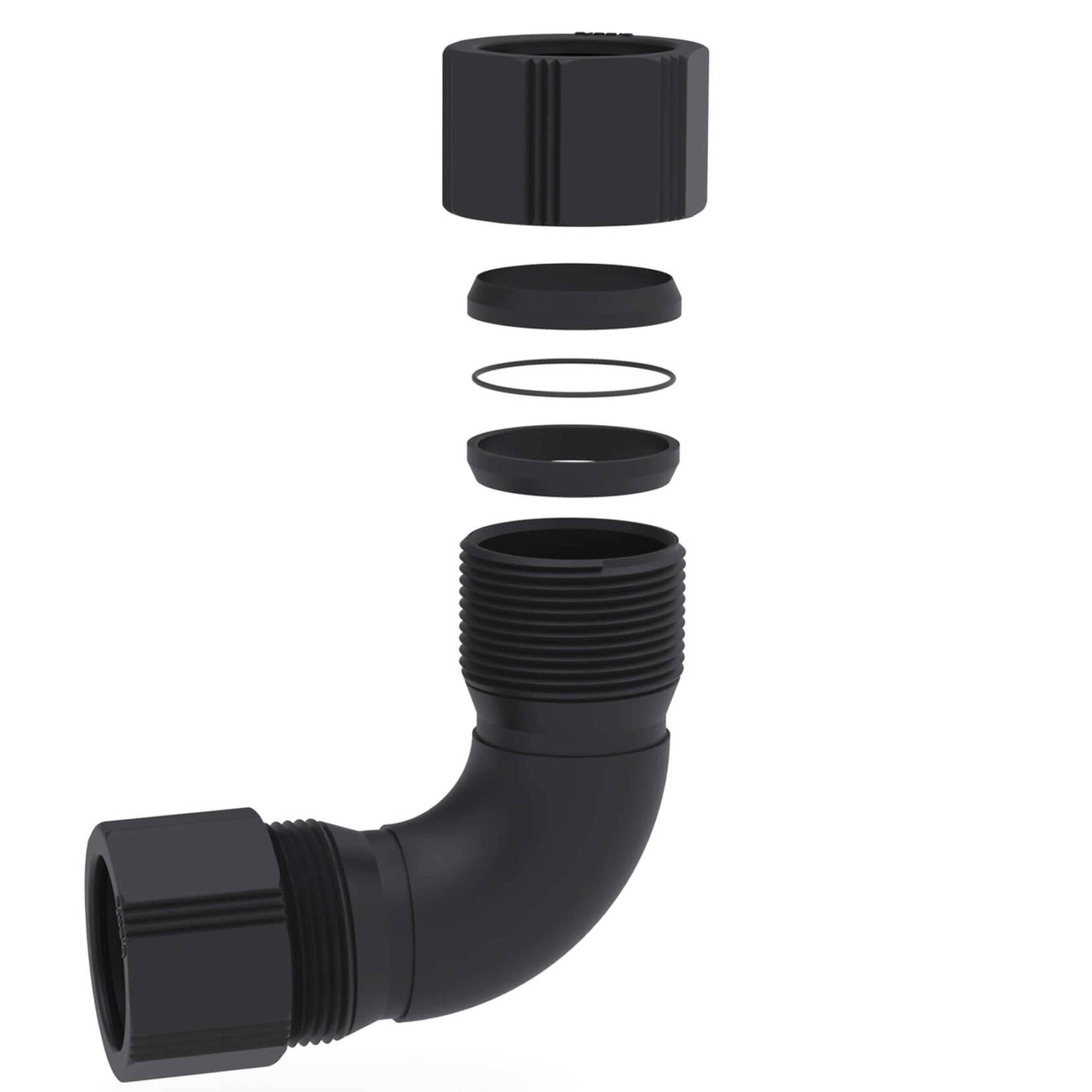

Elbow tube approx. 90° made of static dissipative PE-EX. Connection 1: clamp connection for inserting and clamping b.safe Waste Pipes with O. D. 32 mm. Connection 2: either clamp connection for b.safe Waste Pipes, male thread GL25 for transition to flexible b.safe Waste Tubes, or end piece O.D. 32 mm for transition to clamp connection. Each clamp connection consists of 1 lock nut in PE-EX, 2 conical sealing rings in PTFE-EX, 1 O-ring in EPDM.
Dimensional Drawing
Specifications:
|
Model |
R1174-01 |
|
Chemical resistance |
++ very good |
|
Conductivity |
1.000 kOhm |
|
Material |
PE-EX, PTFE-EX |
|
Temperature resistance |
from -50°C to +80°C |
|
Connection 1 |
Klemmverbindung / clamp connection Ø 32 mm |
|
Connection 2 |
Rohr-Ø 32 mm / Tube dia. 32 mm |
|
Dimensions [(L x H) mm] |
83 x 95 |
|
Form |
Round bogen / Elbow tube |
|
With Slope |
Ja / Yes |
