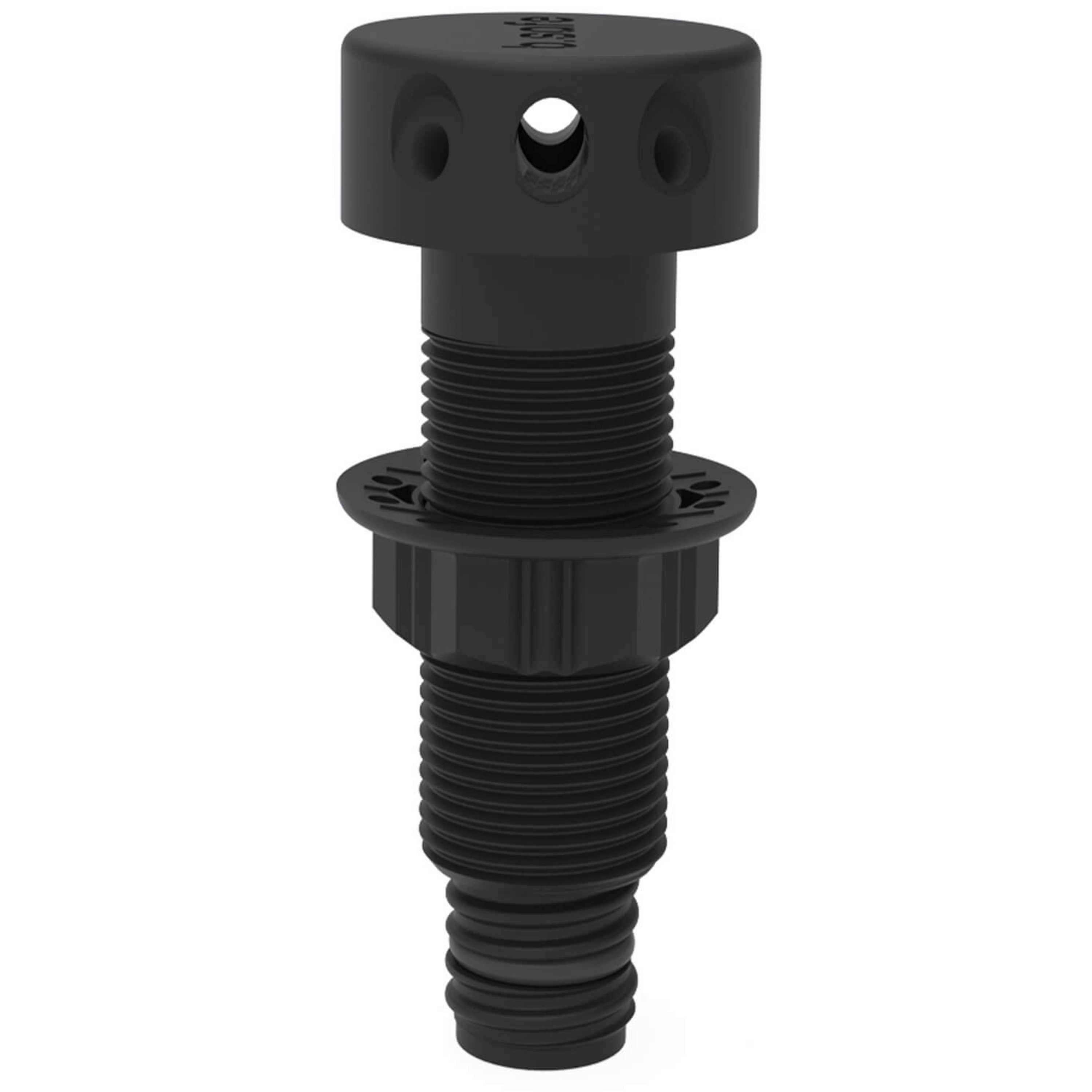

b.safe Desktop Mount Multiport II (GL 25, 4x UNF 1/4", 2x NPT 1/8" ) (PE-EX )
Regular price
$ 322.95
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe Desktop Mount Multiport II (GL 25, 4x UNF 1/4", 2x NPT 1/8" ) (PE-EX )
Product Description
Made of static dissipative PE-EX, suitable for boards with a thickness of 10 to 35 mm, easy fixing by counter nut. Low installation height due to connections at the sides, inclined threads for additional sloping and connection of tubes without bending. Connections at upper side: 2x2 capillary connection (thread UNF 1/4“) to connect capillaries with b.safe Fittings, 2x1 hose connection (thread NPT 1/8“) for hose connectors. Fittings and hose connectors are not included in the scope of delivery. Connection at bottom: male thread GL25 for direct connection with flexible b.safe Waste Tubes.
Applications
One connection for collecting liquid waste from up to 2 HPLC systems that can be integrated directly in laboratory hoods or working tables. b.safe Waste Tubes lead liquid solvent waste directly into connected canisters.
Dimensional Drawing
Specifications:
|
Model |
R1125-02 |
|
Chemical resistance |
++ very good |
|
Material |
PE-EX |
|
Temperature resistance |
from -50°C to +80°C |
|
Connection [upper side] |
GL45 männlich/male |
|
No. of hose connections |
2x NPT 1/8" |
|
Number of capillary connectors |
4x UNF 1/4" |
|
Total length [mm] |
100 |
Downloadable links:
Technical information
