b.safe Angled Connector (90°, 1x Ø 32 mm, 1x GL25 (m) ) (PE-EX )
Product Description

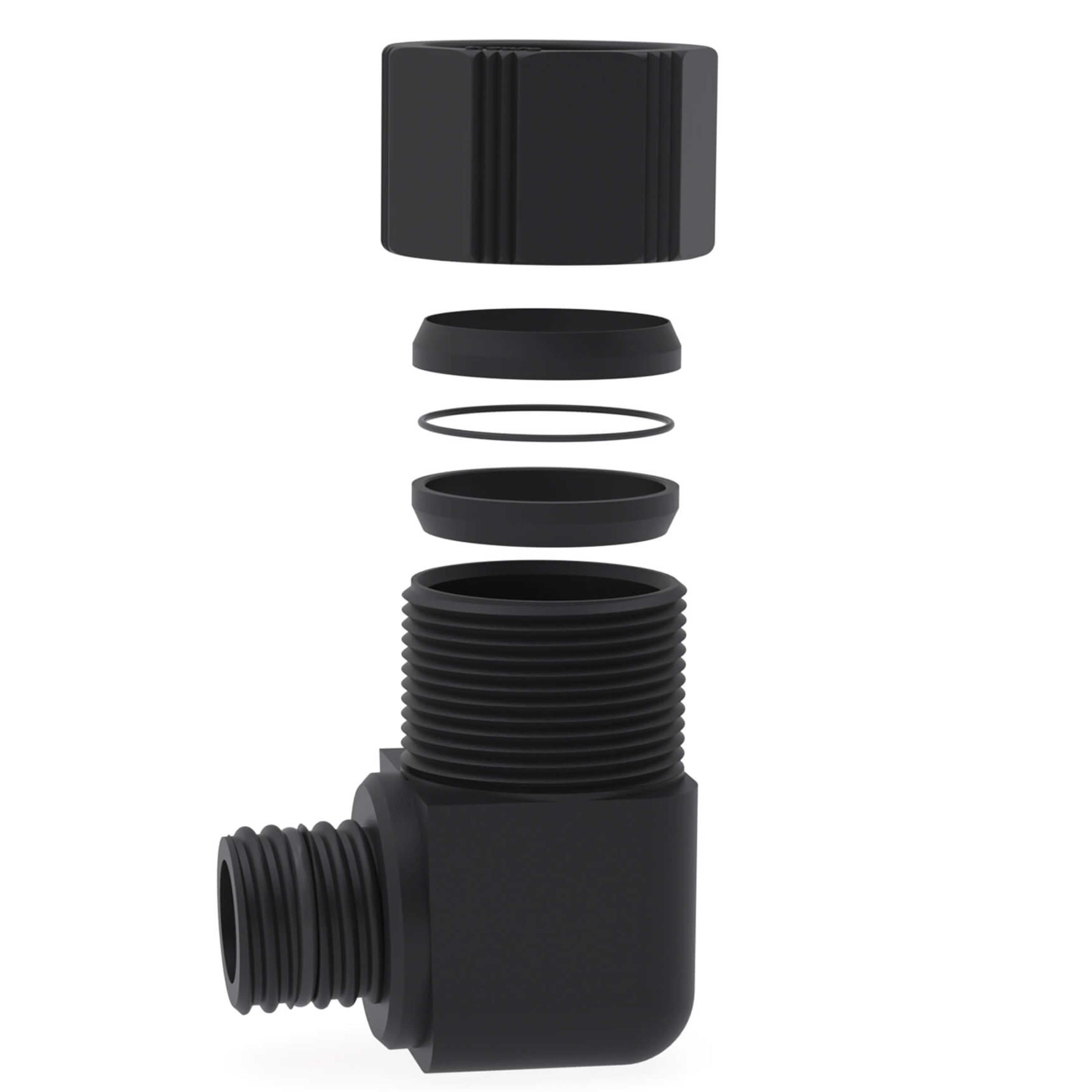

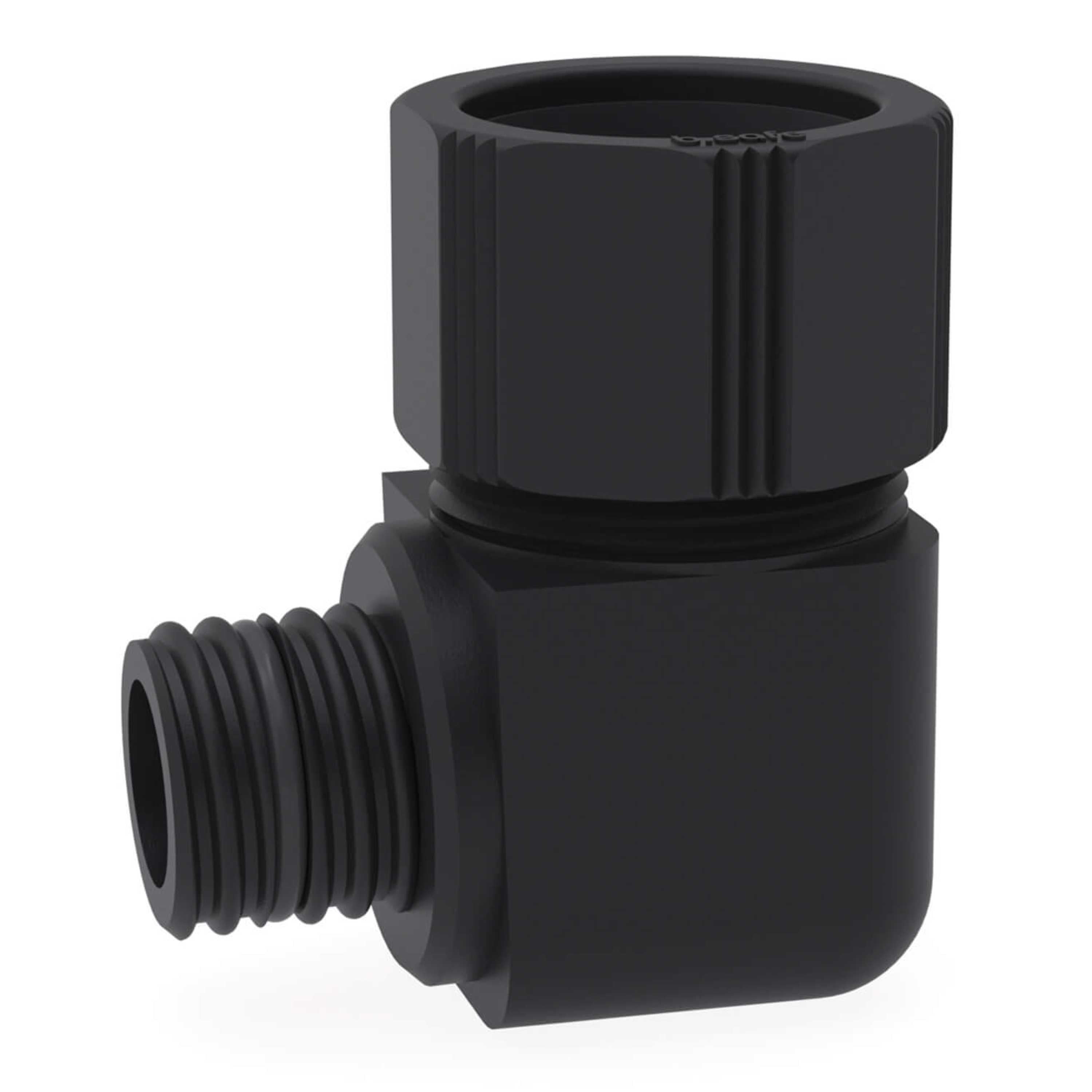

Angular piece approx. 90° made of static dissipative PE-EX. Connection 1: clamp connection for inserting and clamping b.safe Waste Pipes with O. D. 32 mm. Connection 2: male thread GL25 for transition to flexible b.safe Waste Tubes. Each clamp connection consists of 1 lock nut in PE-EX, 2 conical sealing rings in PTFE-EX, 1 O-ring in EPDM.
Dimensional Drawing
Specifications:
|
Model |
R1185-01 |
|
Chemical resistance |
++ very good |
|
Conductivity |
1.000 kOhm |
|
Material |
PE-EX, PTFE-EX |
|
Temperature resistance |
from -50°C to +80°C |
|
Connection 1 |
Klemmverbindung / clamp connection Ø 32 mm |
|
Connection 2 |
GL25 mänlich / male |
|
Dimensions [(L x H) mm] |
64 x 77 |
|
Form |
L |
